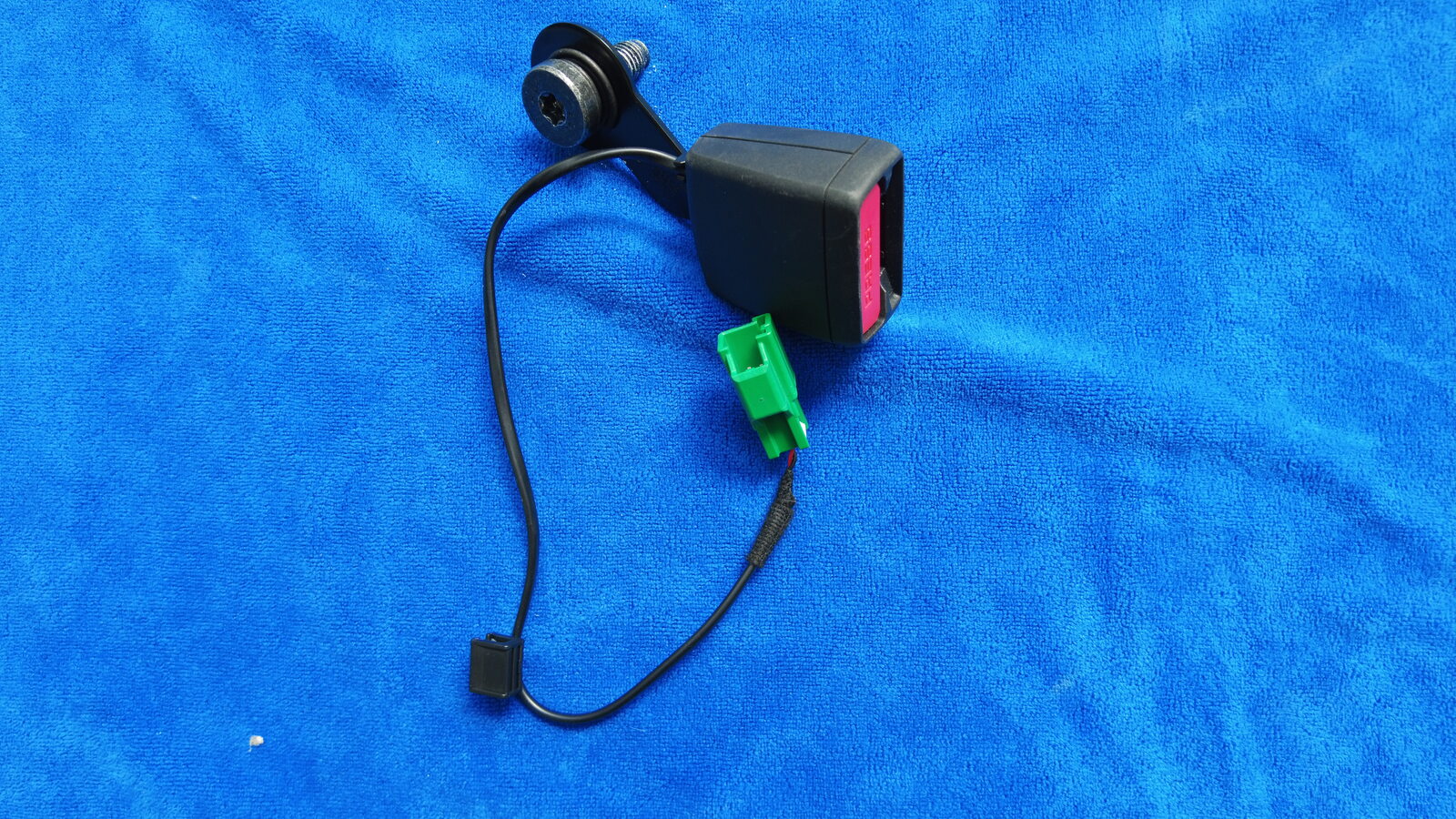

第二排中间座椅安全带锁扣 - 5 座 ((拆卸和更换))

校正代码 2005020202 FRT 0.25 注意:除非本程序中另有明确规定,否则上述校正代码和 FRT 反映的是执行本程序(包括关联程序)所需的所有工作。除非明确要求,否则请勿堆叠校正代码。 注意:请参阅平均维修工时,深入了解 FRT 及其创建方式。要提供有关 FRT 值的反馈,请发送电子邮件至LaborTimeFeedback@tesla.com 注意:请参阅人员保护,确保在执行以下程序时穿戴适当的个人防护装备 (PPE)。

拆卸

  1. 拆下第二排座椅座垫。请参阅第二排座椅坐垫 ((拆卸和更换))
  2. 拆下第二排左侧座椅总成。请参阅第二排座椅( 5 座)- 60% ((拆卸和更换))

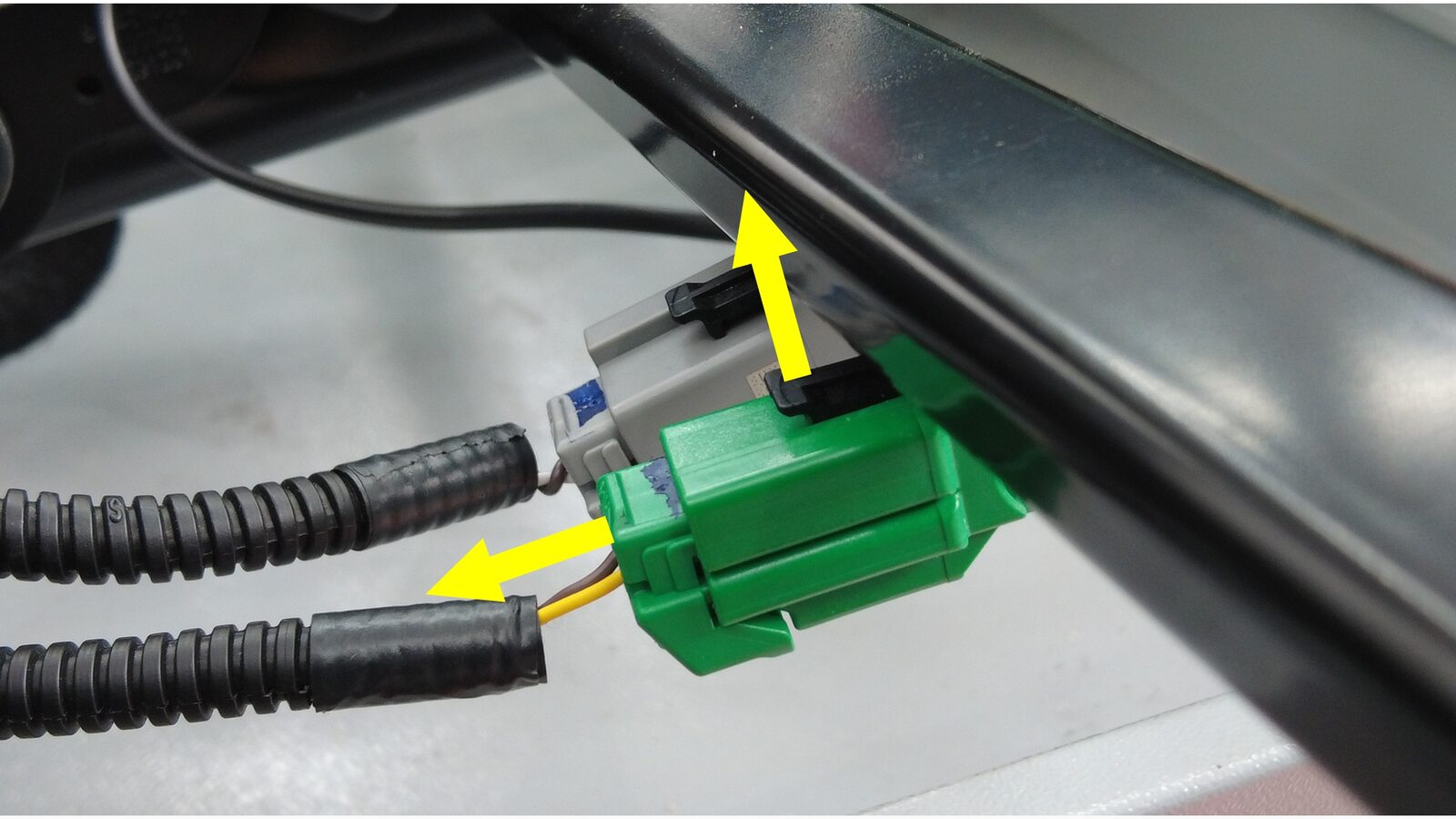

  3. 将中间座椅安全带锁扣线束连接器从卡子支架上拆下。
    Informational PurposesAn informational icon, calling your attention
    向上提起支架端部以松开锁片,然后向后滑动支架。

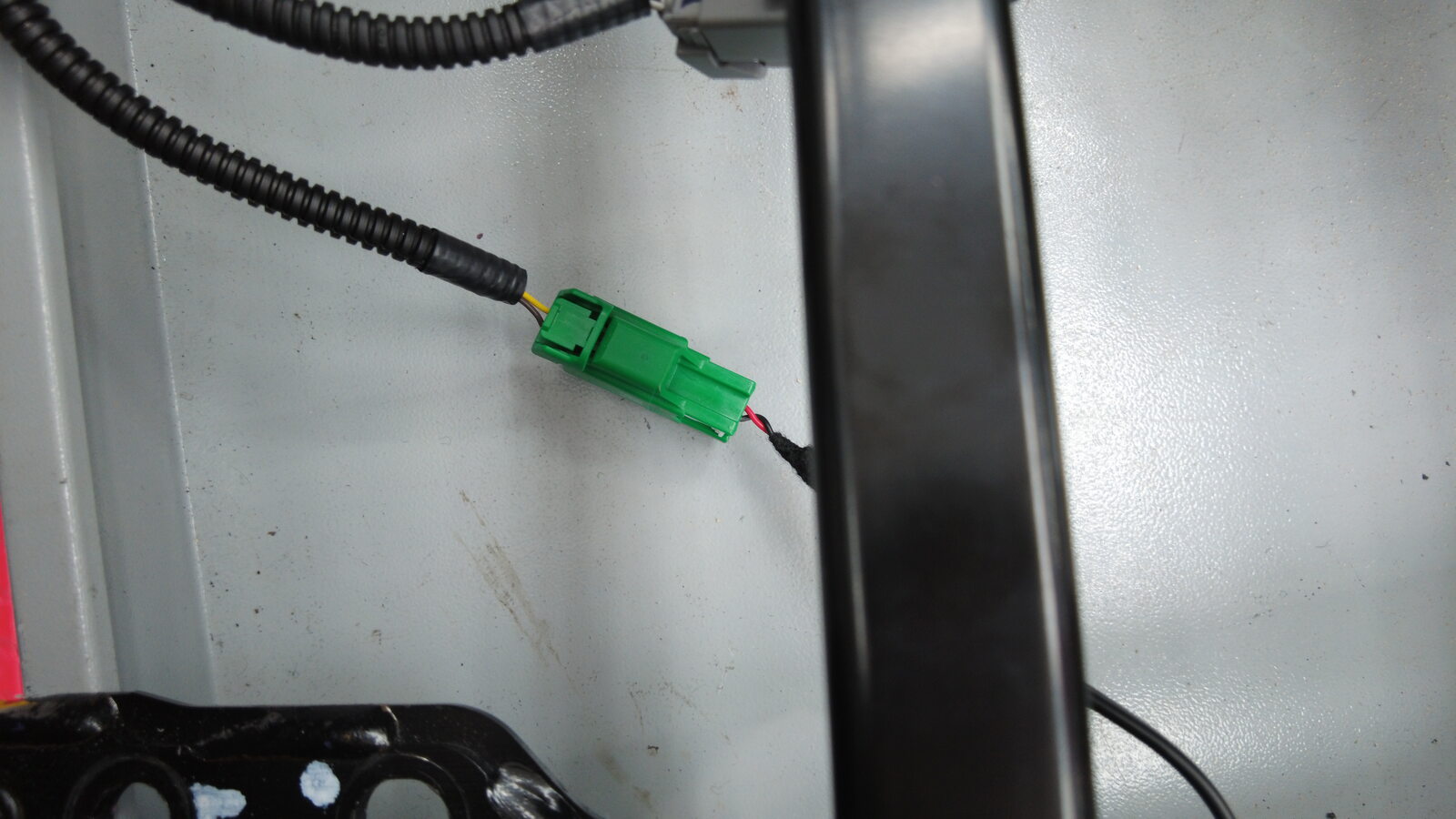

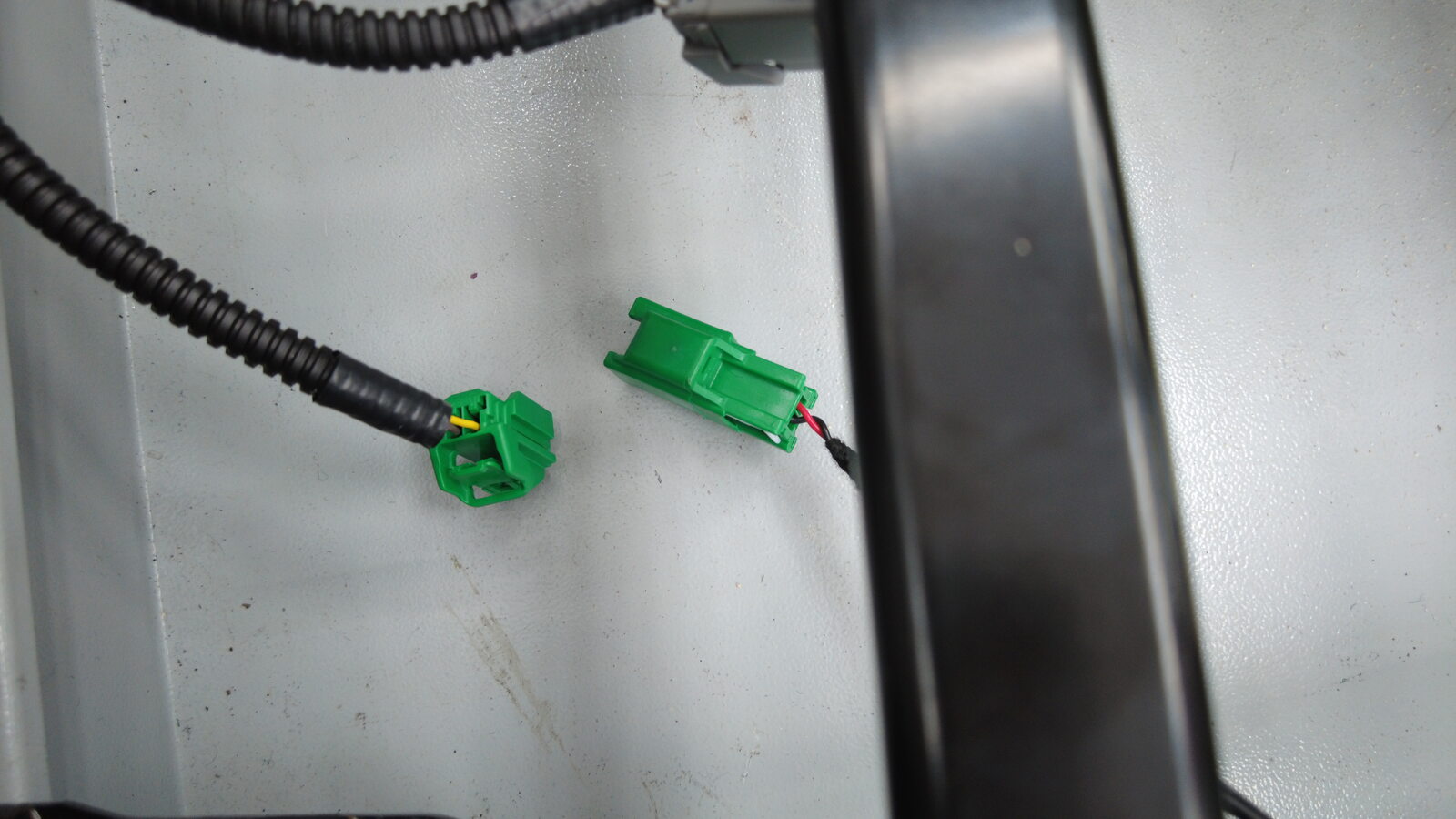

  4. 断开中间安全带锁扣连接器。

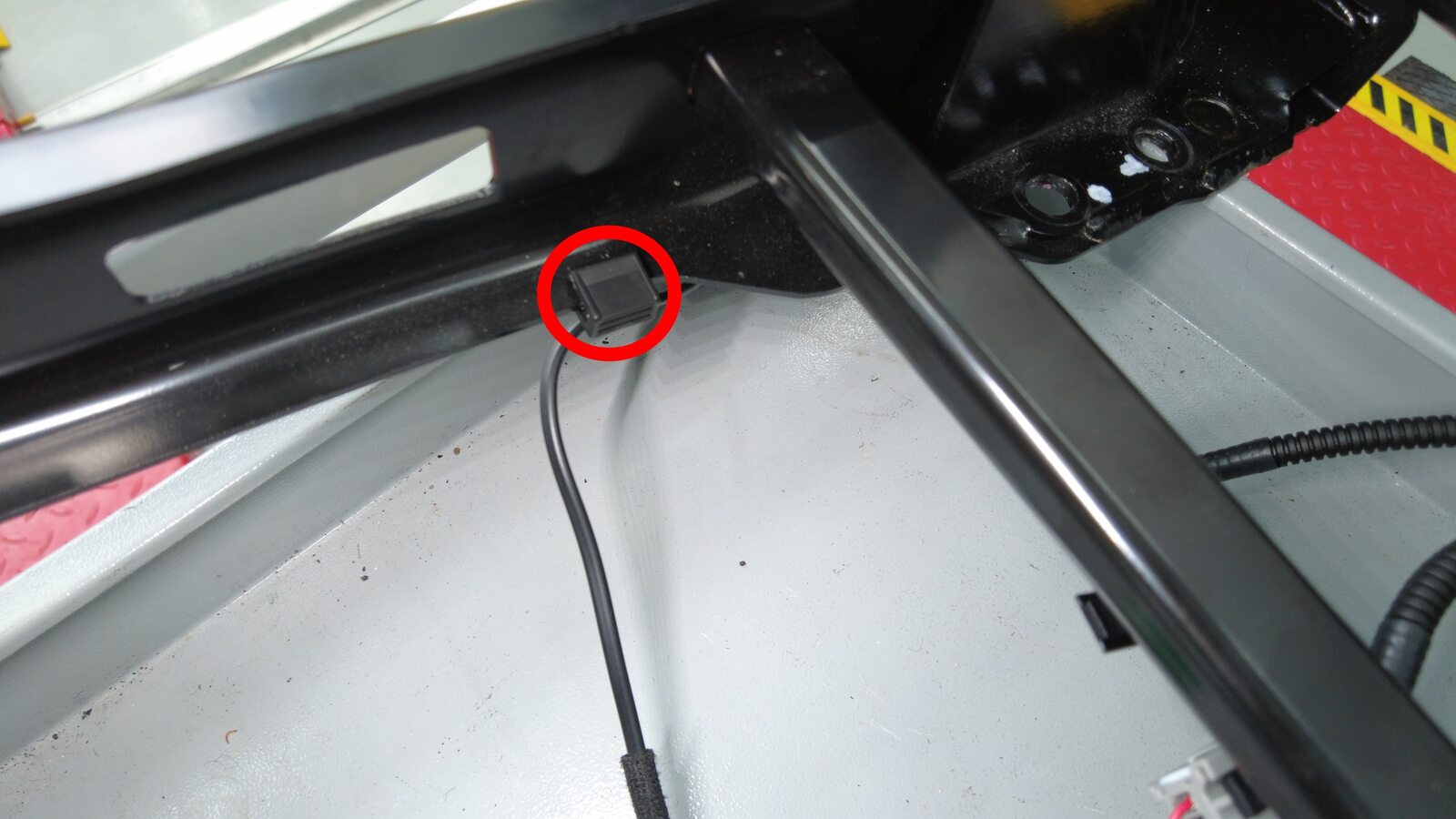

  5. 使用卡子撬具将中间安全带锁扣线束夹从 60 百分比座椅框架总成上拆下。

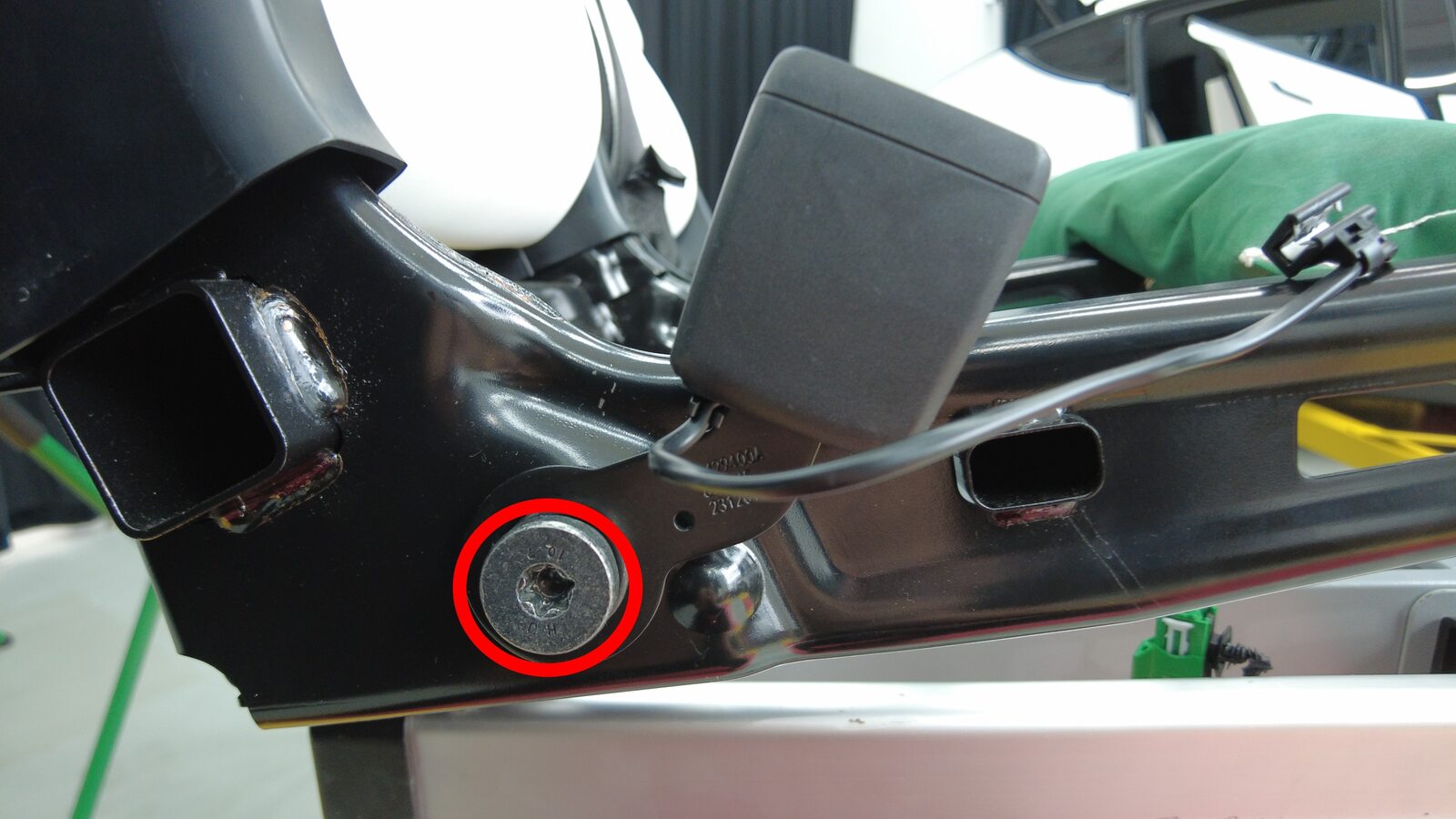

  6. 将中间安全带锁扣从 60 百分比座椅框架总成上拆下。
    Informational PurposesAn informational icon, calling your attention
    TIp
    如果螺栓难以拆下,请使用感应加热工具融化粘贴片材料。将感应加热工具线圈置于螺栓周围,然后将螺栓加热 20 秒。等待螺栓冷却 2 分钟,然后拆下并弃用螺栓。感应加热器线圈、螺栓和相邻区域将处于极热状态。
    Warning IconA warning icon, calling your attention to a possibly risky situation
    警告
    使用感应加热器时,装有心脏起搏器或其他电子或金属外科植入物的人员必须与感应加热器保持至少 1 米(3 英尺)距离。
    Warning IconA warning icon, calling your attention to a possibly risky situation
    警告
    使用感应加热器前,请取出口袋里的所有金属物品(如硬币、钥匙、电子设备和工具)。
    Warning IconA warning icon, calling your attention to a possibly risky situation
    警告
    使用感应加热器前,确保作业区备有经正确维护的灭火器。
    Warning IconA warning icon, calling your attention to a possibly risky situation
    警告
    请在通风条件良好的区域使用感应加热器。
    Informational PurposesAn informational icon, calling your attention
    TIp
    推荐使用以下工具:
    • 棘轮/扭矩扳手
    • 3 英寸加长件
    • 回旋头棘轮/回旋头扭矩扳手

安装

  1. 安装新的螺栓,将中间座椅锁扣固定到车身。
    40 Nm (29.5 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    确保导销对齐。
    Informational PurposesAn informational icon, calling your attention
    TIp
    推荐使用以下工具:
    • 棘轮/扭矩扳手
    • 3 英寸加长件
    • 回旋头棘轮/回旋头扭矩扳手
  2. 将中间安全带锁扣线束夹安装到 60 百分比座椅框架总成上。
  3. 连接中间安全带锁扣连接器。
  4. 将中间座椅安全带锁扣线束连接器安装到卡子支架上。
    Informational PurposesAn informational icon, calling your attention
    向上提起支架端部以松开锁片,然后向后滑动支架。
  5. 安装第二排左侧座椅总成。请参阅第二排座椅( 5 座)- 60% ((拆卸和更换))
  6. 安装第二排座椅座垫。请参阅第二排座椅坐垫 ((拆卸和更换))
