High Voltage 3-Phase Harness - AC Inlet ((拆卸和安装))
校正代码
4450010102
FRT
0.60
注意:除非本程序中另有明确规定,否则上述校正代码和 FRT 反映的是执行本程序(包括关联程序)所需的所有工作。除非明确要求,否则请勿堆叠校正代码。
注意:请参阅平均维修工时,深入了解 FRT 及其创建方式。要提供有关 FRT 值的反馈,请发送电子邮件至ServiceManualFeedback@tesla.com。
注意:请参阅人员保护,确保在执行以下程序时穿戴适当的个人防护装备 (PPE)。注意:请参阅人体工程学注意事项查看安全健康的作业规程。
拆卸
- Perform Vehicle HV Disablement Procedure. See 车辆高压禁用程序.
- Remove the LH trunk side trim. See Trunk Side Trim LH - Rear Under Body ((拆卸和更换)).
-

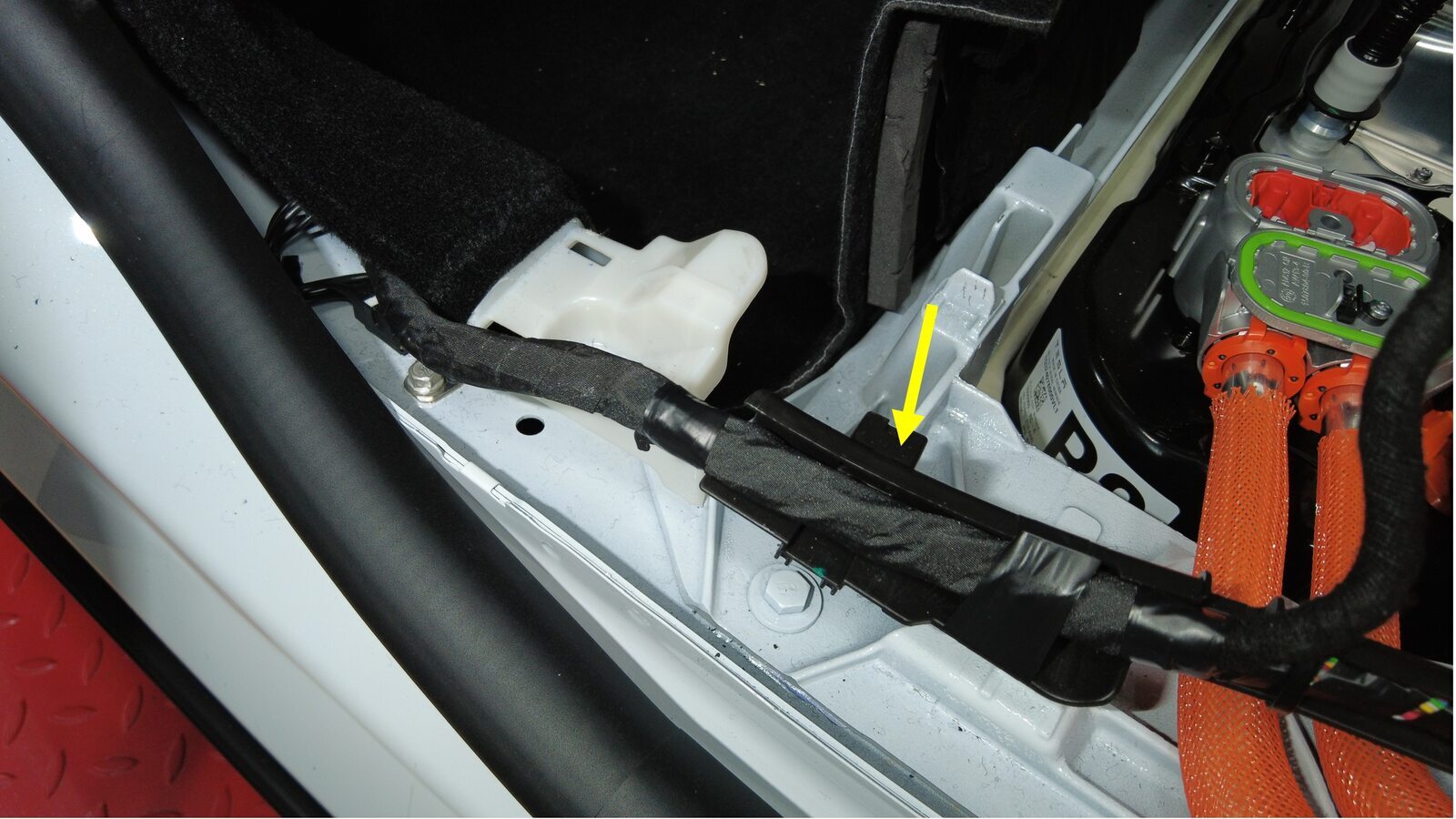

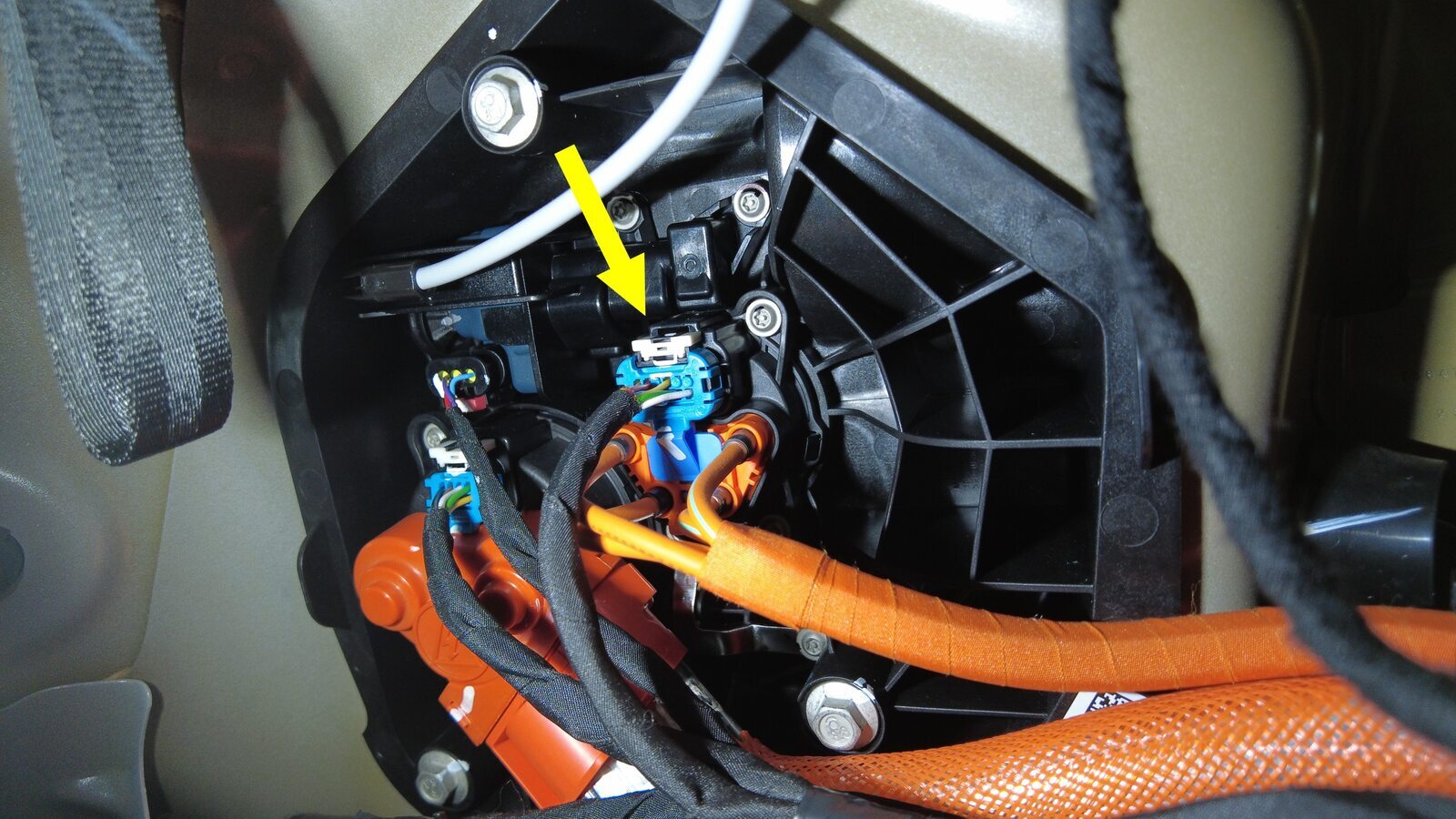

Disconnect charge port logic
connector.
-

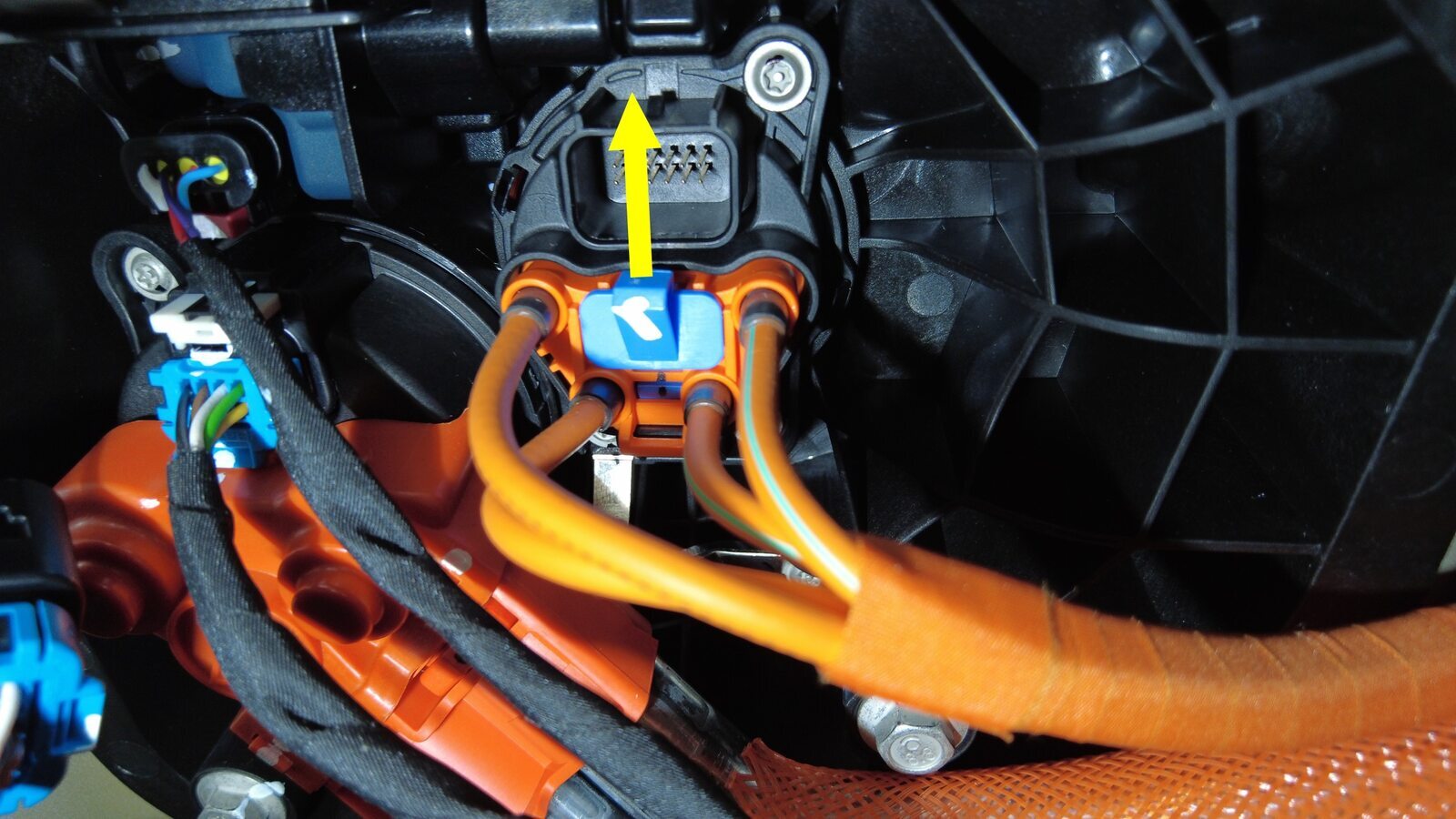

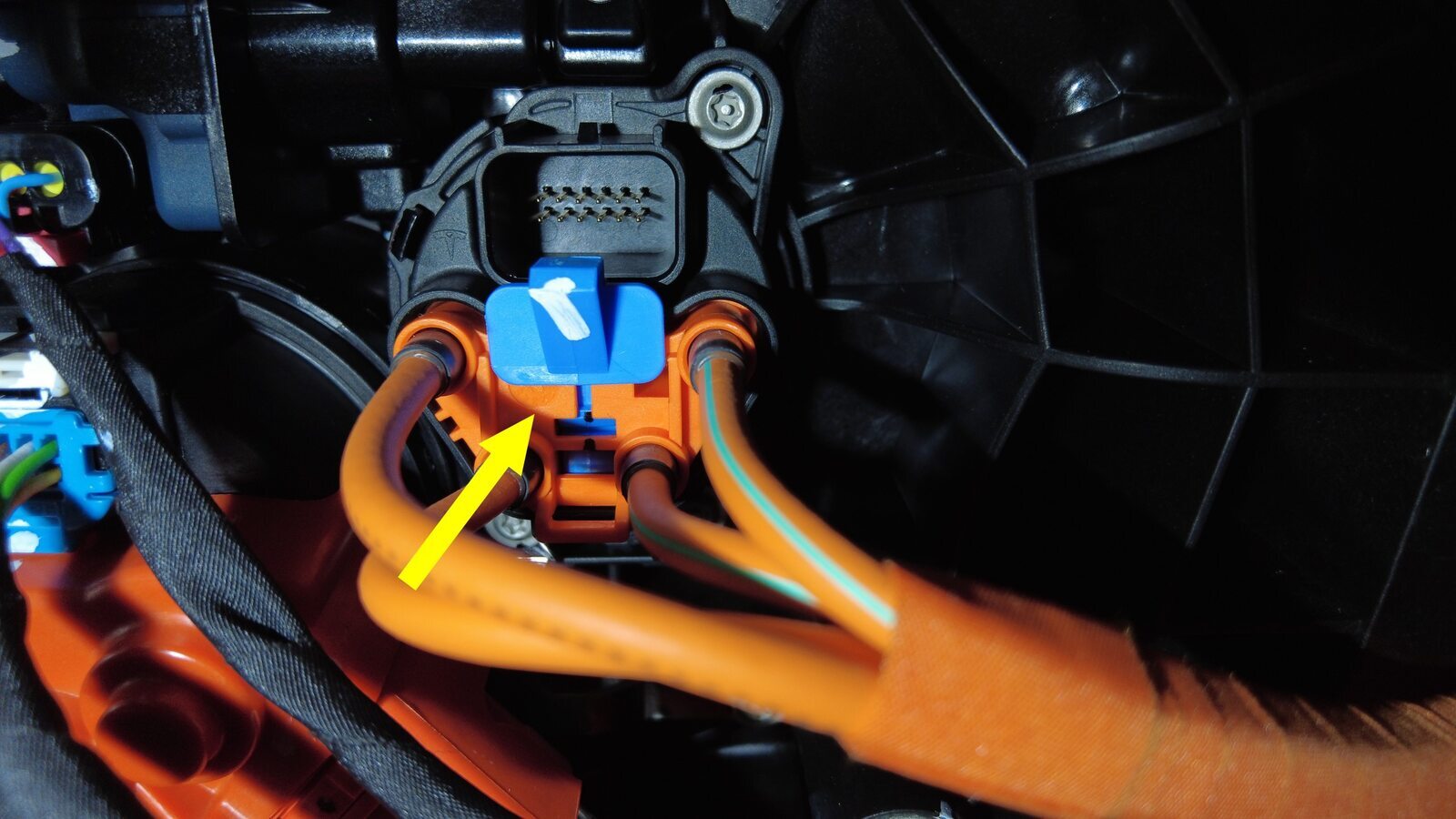

Disconnect AC inlet harness from
charge port.
-

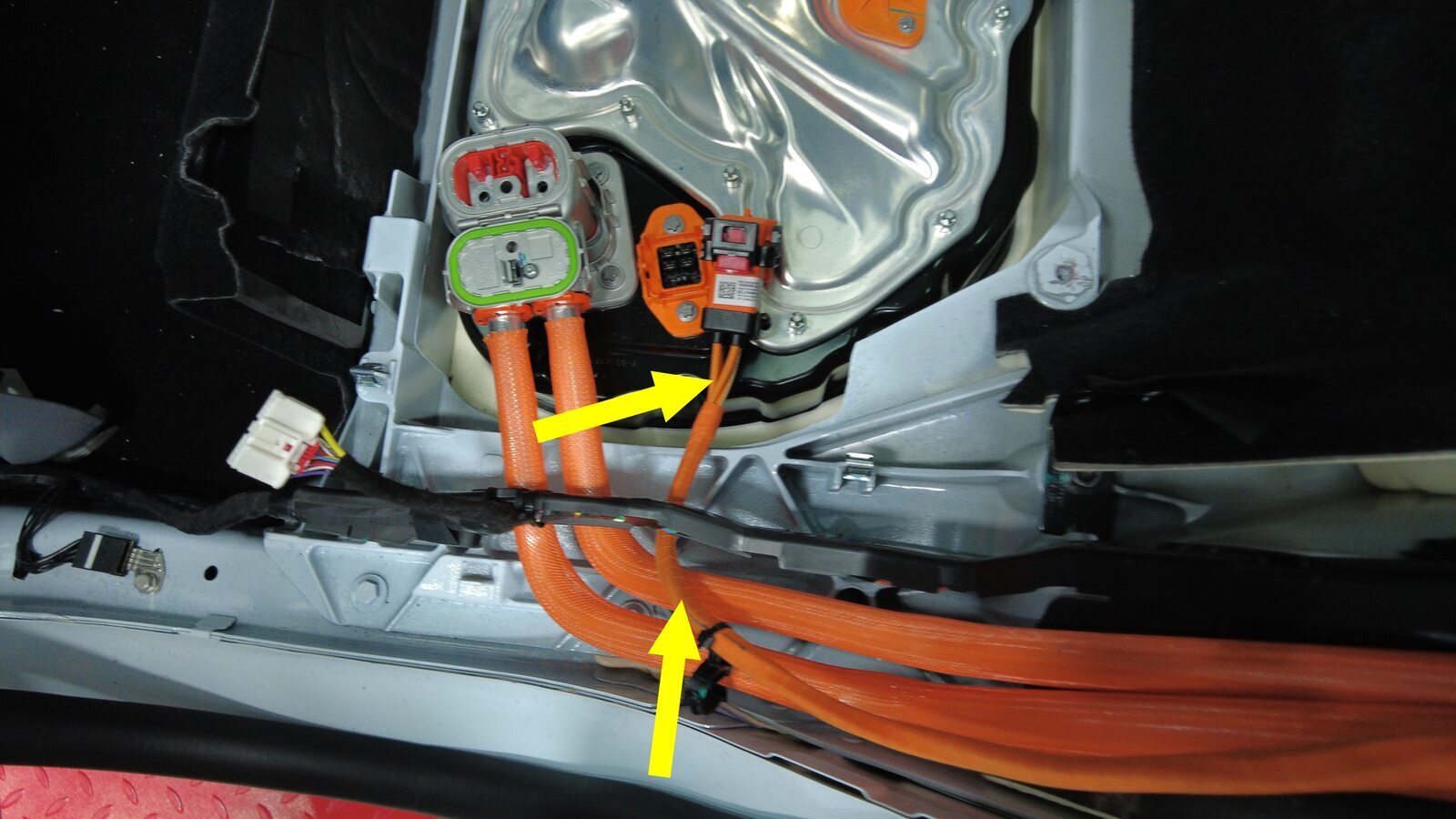

Disconnect AC chargeport inlet harness
from HV header.
-

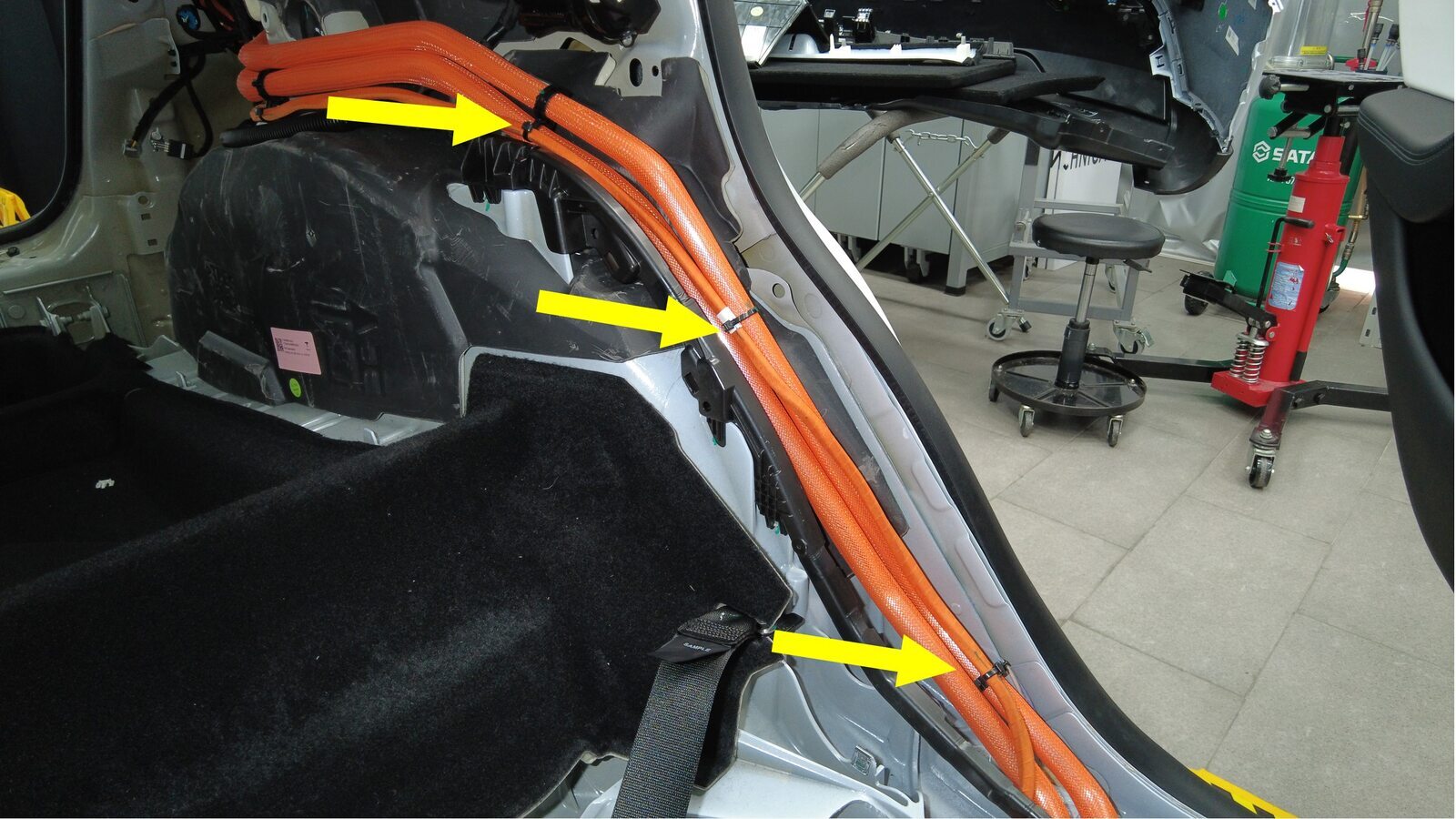

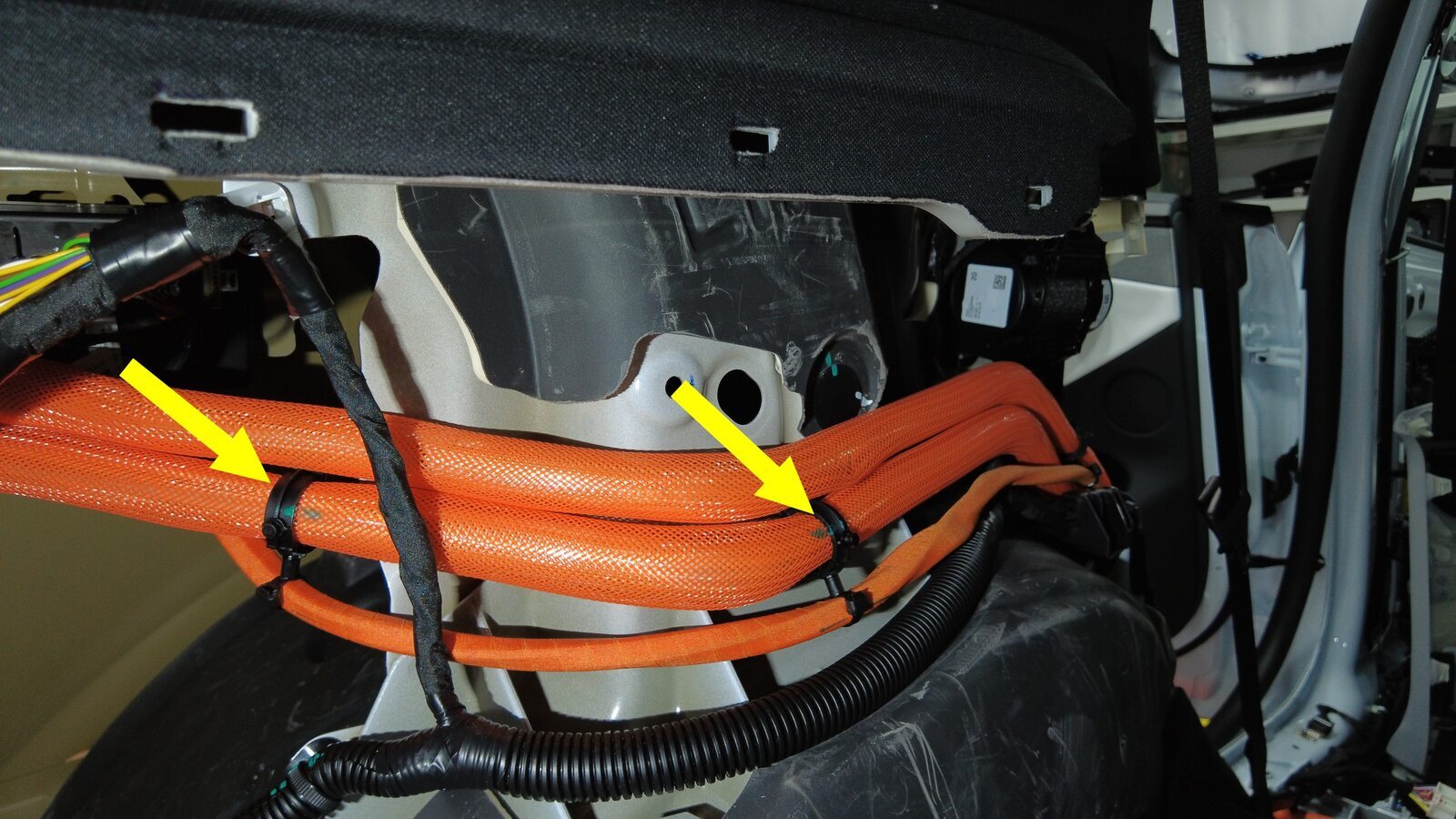

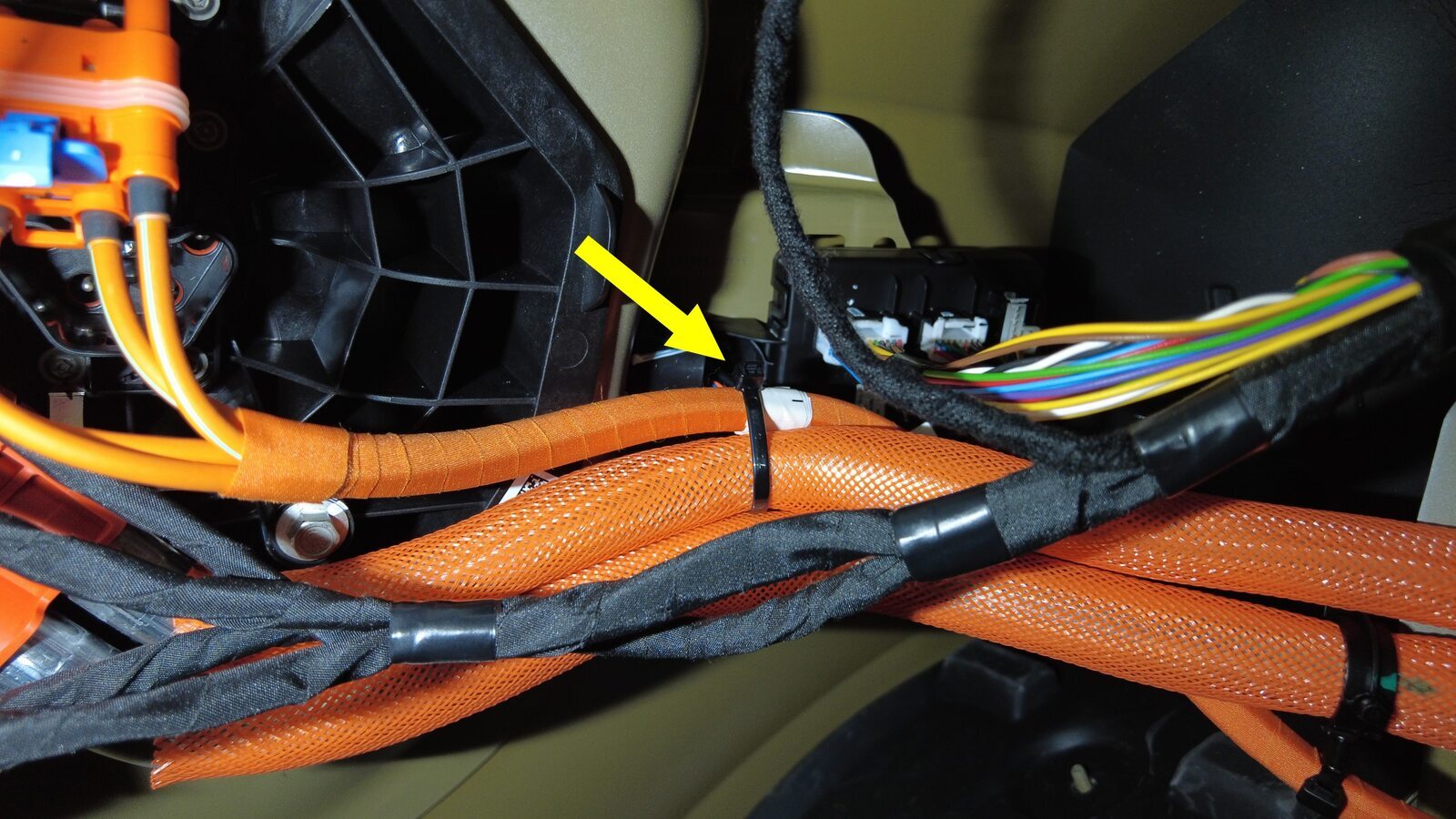

Release LH body harness from rear body
and move aside.
-

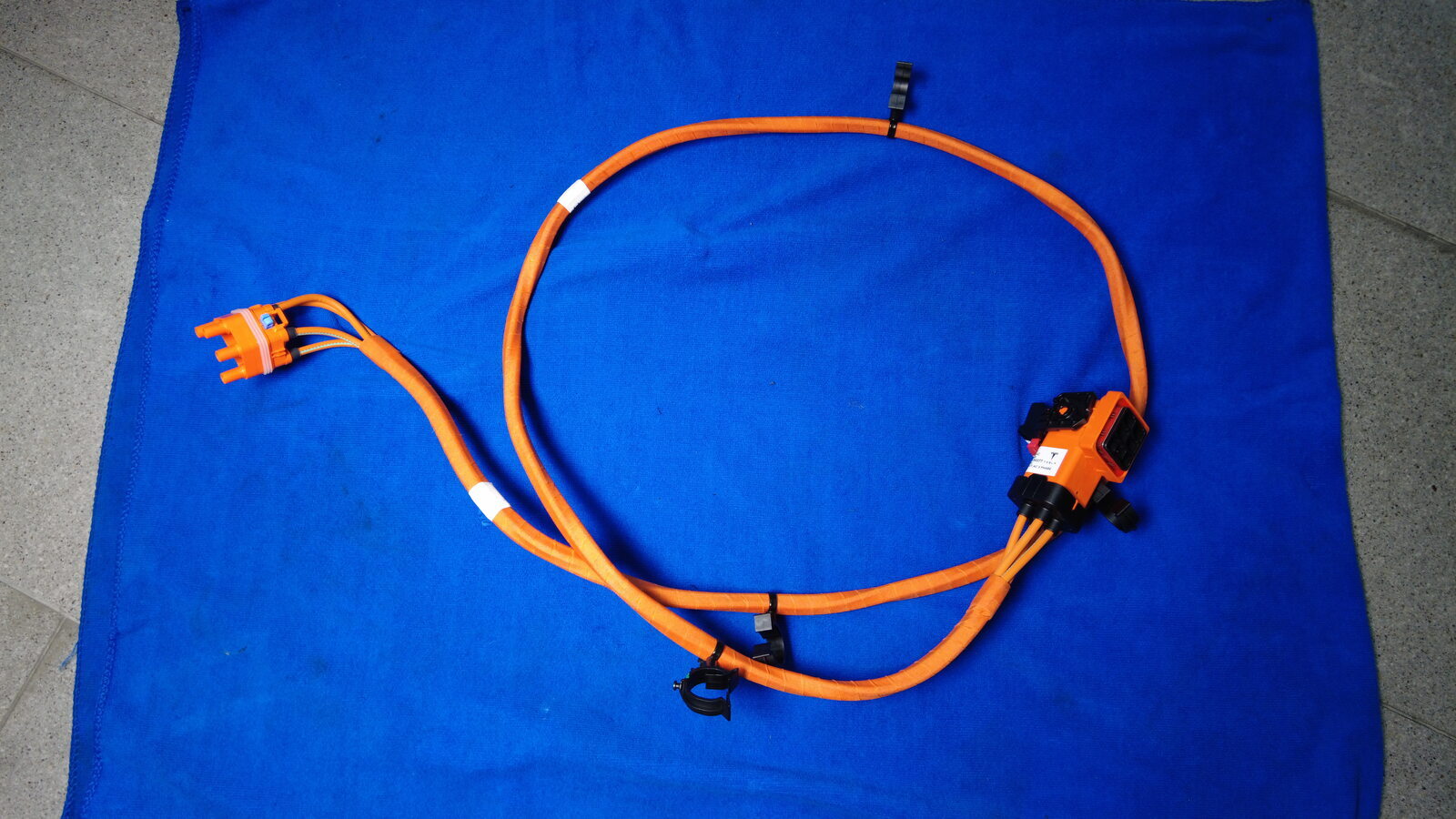

Remove HV inlet harness from
vehicle.
安装
-
Install HV inlet harness into vehicle.
-
Connect 3PH chargeport inlet harness to HV header.
-
Install LH body harness onto rear body.
-
Connect AC inlet harness from charge port.
-
Connect charge port logic connector.
- Install the LH trunk side trim. See Trunk Side Trim LH - Rear Under Body ((拆卸和更换)).
- Connect LV power. See LV Power (Modify).
- Install the 2nd row lower seat cushion. See Seat Cushion - 2nd Row ((拆卸和更换)).
- Move LH and RH front seat to original position.
- Raise all windows.
- Close liftgate and all four doors.
