LV Battery - Recover (Heat Pump)

교정 코드 17010008 0.06 참고: 절차에서 명시적으로 언급하지 않는 한 위 교정 코드 및 FRT는 연결된 절차를 포함하여 이 절차를 수행하는 데 필요한 모든 작업을 반영합니다. 명시적으로 지시하지 않는 한 교정 코드를 누적하지 마십시오.참고: FRT와 그 생성 방법에 대한 자세한 내용은 표준 정비 작업시간을 참조하십시오. FRT 값에 대한 피드백을 제공하려면 LaborTimeFeedback@tesla.com으로 이메일을 보내십시오. 참고: 아래 절차를 수행할 때 개인 보호을(를) 참조하여 적절한 PPE를 착용했는지 확인하십시오.

Warning IconA warning icon, calling your attention to a possibly risky situation
경고
이 절차는 검증되었지만 초안입니다. 경고와 주의사항이 누락되었을 수 있습니다. 고전압 시스템 및 구성 요소에서 또는 그 근처에서 작업하는 경우에는 안전 요구 사항을 준수하고 최고 수준의 주의를 기울여야 합니다. 수정 사항 및 기타 의견이 있으면 ServiceDevelopment@teslamotors.com으로 알려 주십시오.
  1. Remove the rear underhood apron. See 후드 내 에이프런 - 후면(탈거 및 교체).
  2. Disconnect LV battery connector and keep FRL connected
    Informational PurposesAn informational icon, calling your attention
    참고
    1x connector, Release LV battery but keep FRL connected, Lift up and release green locking tab, Pull black connector lock outwards to release connection
  3. Connect LV maintainer
    Informational PurposesAn informational icon, calling your attention
    참고

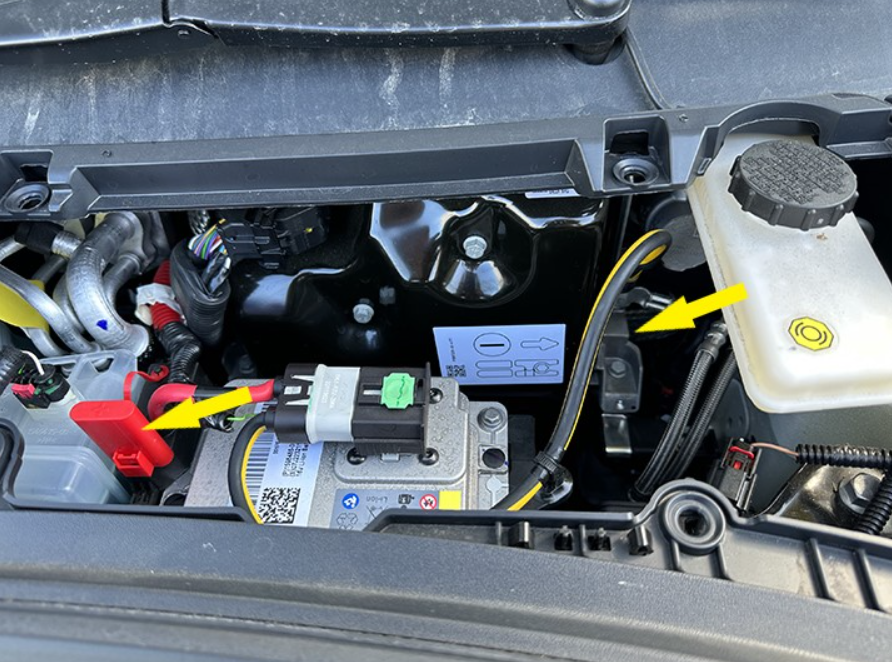

    Release positive terminal cover, Secure positive terminal to jump post, Secure negative terminal to bolt located between brake fluid reservoir and front trunk, Connect maintainer to power supply, To avoid damaging the vehicle DO NOT allow positive cable to make contact with other metal components
    그림 1. Frunk does not need to be removed
  4. Connect LV battery connector
    Informational PurposesAn informational icon, calling your attention
    참고
    Push connector down while pushing slide lock in, Seat e-CPA after lock is fully secured
  5. Open LH front door
  6. Lower LH front window
  7. Place vehicle in service mode
    Informational PurposesAn informational icon, calling your attention
    참고
    Via UI > Controls > Software, Touch and hold "Model 3" for 4 seconds then release, Use screen keyboard to type "service" into dialog box then select OK
  8. Disconnect LV maintainer
  9. LV 배터리 상태를 확인합니다.
    Informational PurposesAn informational icon, calling your attention
    참고

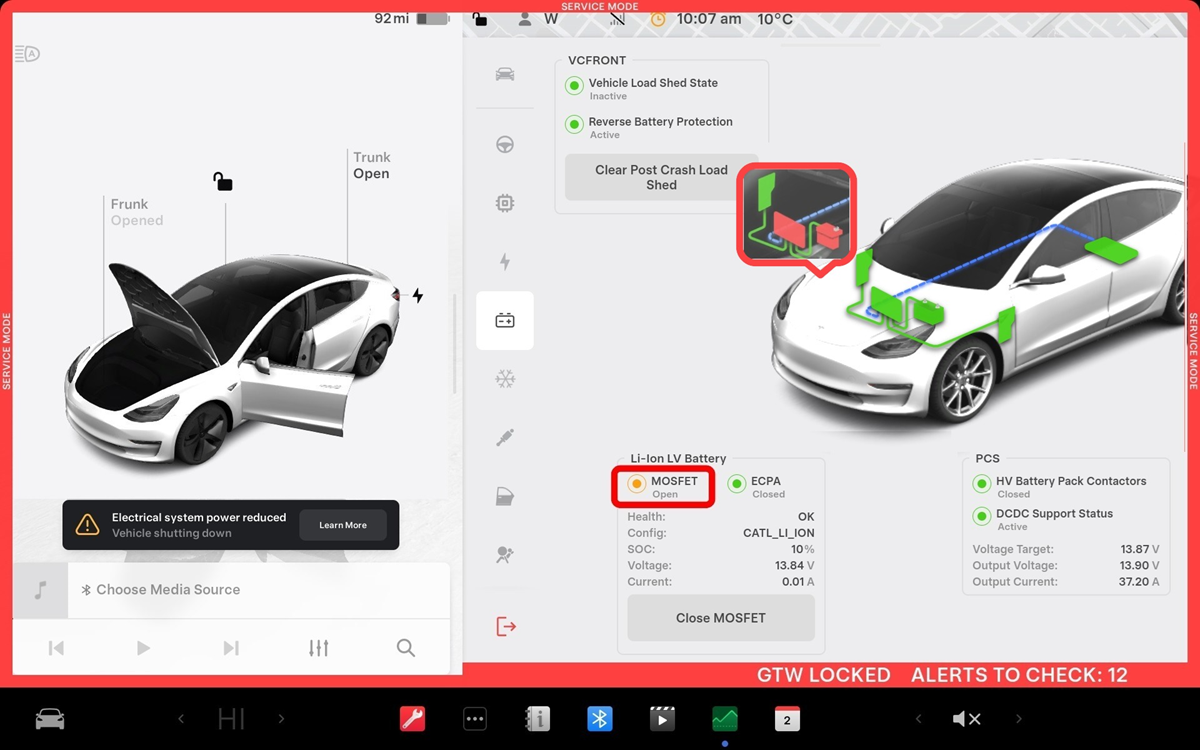

    PCS 지원이 시작된 후 2분 후에 VCLEFT_a478_LVBMS_MOSFET_Open 또는 VCBATT_a478_LVBMS_MOSFET_Open경고가 있으면 LV 배터리는 자동으로 복구되지 않습니다. 자동 복구는 터치스크린이나 Toolbox를 통해 수동으로 시도할 수 있습니다.
    • 터치스크린:Service Mode > Low Voltage > Power Distribution > Close MOSFET
    • Toolbox:ActionPROC_VCFRONT_X_RECONNECT-LV-BATTERY를 실행합니다.
    Informational PurposesAn informational icon, calling your attention
    참고
    위의 단계를 수행해도 LV 자동 복구가 성공하지 않으면 Tesla 리튬 이온 배터리 충전기를 사용하여 배터리를 복구합니다(아직 개발 중).
    • 배터리가 고전류에서 방전되지 않고 자체 보호가 되지 않는지 확인합니다.

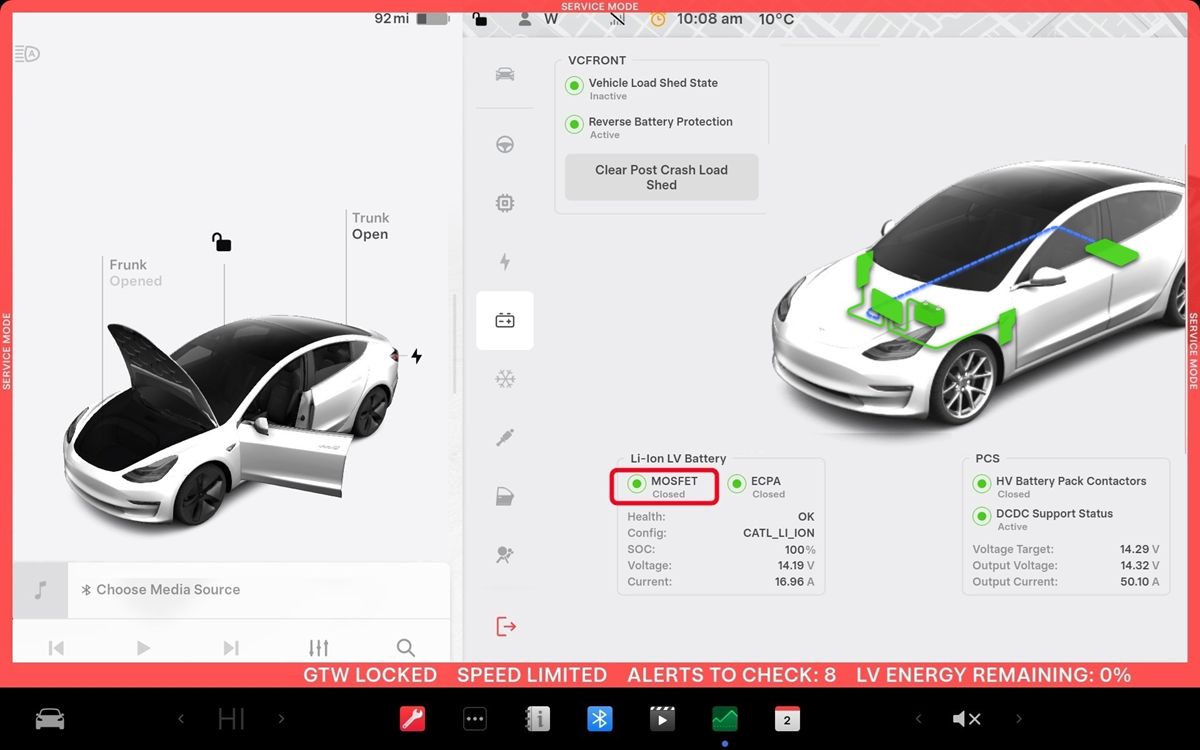

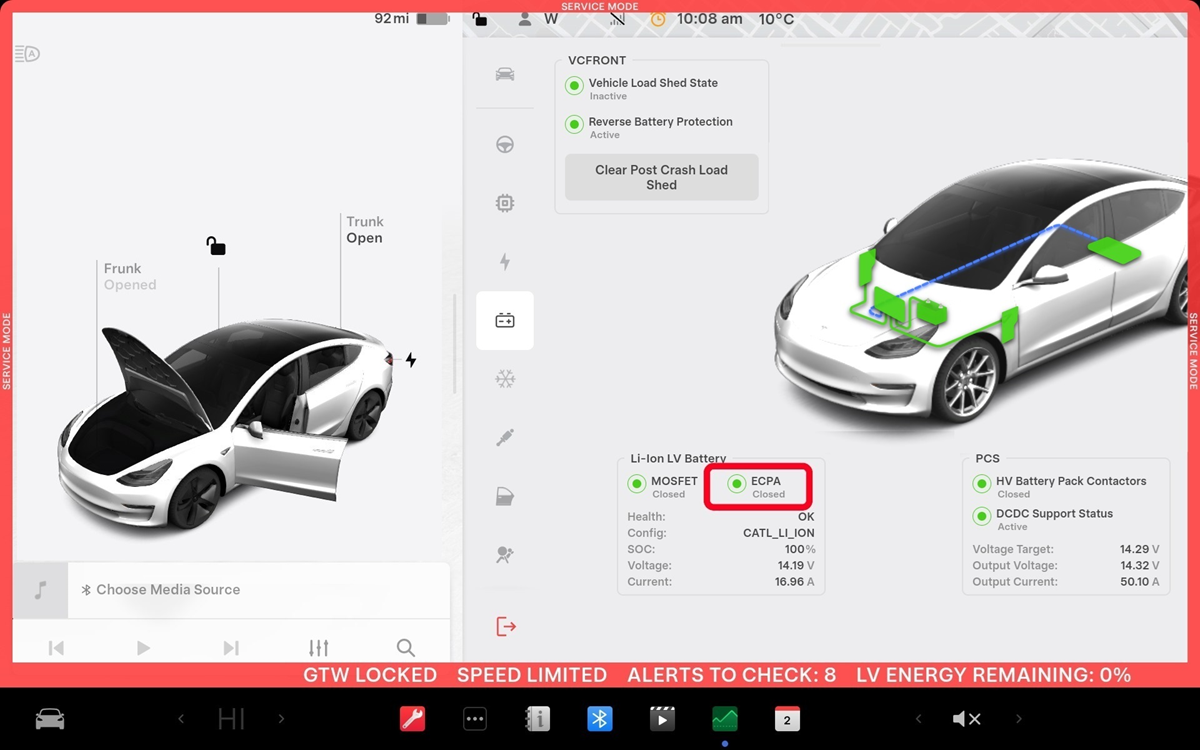

    • Service Mode > Low Voltage > Power Distribution > LV Battery로 이동하여 LV 배터리 SoC가 증가하는지 확인합니다.
    • LV 배터리 MOSFET 상태가 Closed인지 확인합니다.
  10. Exit Service Mode
    Informational PurposesAn informational icon, calling your attention
    참고
    Controls > Service Mode > Exit Service Mode, Press and hold for 2 seconds
  11. Install the rear underhood apron. See 후드 내 에이프런 - 후면(탈거 및 교체).
