Wiper Module (Remove and Replace)

Correction code 17502502 0.36 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See 개인 보호 to make sure wearing proper PPE when performing the below procedure. See 인체공학적 주의 사항 for safe and healthy working practices.

  • 2024-04-04: 교체 이후 지침을 추가했습니다.
Warning IconA warning icon, calling your attention to a possibly risky situation
경고
The video(s) included in this procedure are meant as an overview for supplemental purposes only. Follow all of the steps listed in the procedure to avoid damage to components and/or personal injury.

Torque Specifications

표 1. Torque Specifications: Wiper Module (Remove and Replace)
Description Torque Value Recommended Tools Reuse/Replace Notes
와이퍼 모듈을 차량에 고정하는 볼트
7 Nm (5.2 lbs-ft)
  • 10mm 소켓
  • 2인치 익스텐션
Reuse

Remove

  1. 후면 후드 내 에이프런을 탈거합니다. 참조 항목: Underhood Apron - Rear (Remove and Replace).
  2. 실내 흡기 덕트를 탈거합니다. 참조 항목: 덕트 - 상단 - 실내 흡기(탈거 및 교체).
  3. 우측 운전석 차량(RHD)만 해당: 외측 HVAC 플레넘 덕트를 탈거합니다. 참조 항목: 플레넘 - 인입 - HVAC(탈거 및 교체).
  4. 후드 래치 커버를 탈거합니다. 참조 항목: Cover - Hood Latch (Remove and Replace).
  5. 후드 내 보관 카펫을 제거합니다. 참조 항목: Carpet - Underhood Storage (Remove and Install).
  6. 후드 내 보관 유닛을 탈거합니다. 참조 항목: Underhood Storage Unit (Remove and Replace).
  7. 와이퍼 암을 탈거합니다. 참조 항목: Wiper Arms (Remove and Replace).
    Informational PurposesAn informational icon, calling your attention
    참고
    2019년 3월 9일 및 그 이후에 제조된 차량의 경우 와이퍼 모듈 어셈블리에 피그테일이 없습니다. 탈거 시 "와이퍼 정비 모드" 로 전환하십시오(중국만 해당).
  8. LH 및 RH 쇼크 타워 커버를 차량에 고정하는 클립을 분리한 다음 차량에서 커버를 탈거합니다.

    LH 쇼크 타워 커버에서 본 모습, RH도 유사함

  9. 카울 스크린을 차량에 고정하는 클립을 분리한 다음 차량에서 카울 스크린을 탈거합니다.
  10. 와이퍼 모듈에서 전기 커넥터를 연결 해제합니다.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    경고
    와이퍼 암이 자동으로 주차 모드로 전환되므로 모듈 연결부 내에 팔을 넣지 마십시오.
  11. 와이퍼 모듈을 차체에 고정하는 볼트를 탈거한 다음 차량에서 와이퍼 모듈을 탈거합니다.
    Informational PurposesAn informational icon, calling your attention
    참고
    Use of the following tool(s) is recommended:
    • 10mm 소켓
    • 2인치 익스텐션

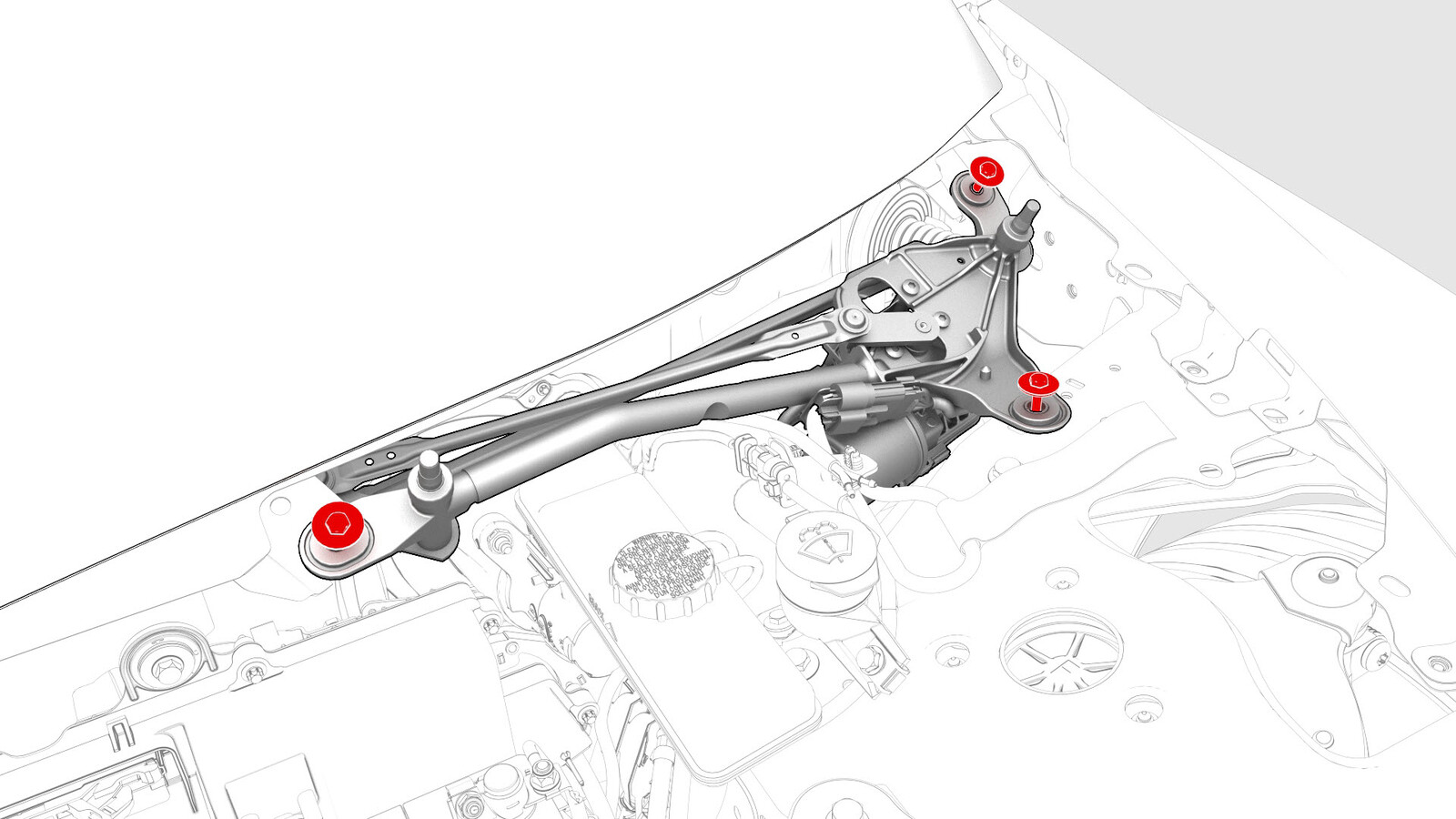

    그림 1. 좌측 운전석 차량(LHD)
    그림 2. RHD

Install

  1. 와이퍼 모듈을 차량에 고정하는 볼트를 장착합니다.
    7 Nm (5.2 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    참고
    Use of the following tool(s) is recommended:
    • 10mm 소켓
    • 2인치 익스텐션
    그림 3. LHD
    그림 4. RHD
  2. 전기 커넥터를 와이퍼 모듈에 연결합니다.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    경고
    와이퍼 암이 자동으로 주차 모드로 전환되므로 모듈 연결부 내에 팔을 넣지 마십시오.
  3. 카울 스크린을 차량에 고정하는 클립을 연결합니다.
  4. LH 및 RH 쇼크 타워 커버를 차량에 고정하는 클립을 연결합니다.

    LH 쇼크 타워 커버에서 본 모습, RH도 유사함

  5. 와이퍼 암을 장착합니다. 참조 항목: Wiper Arms (Remove and Replace).
  6. 후드 내 보관 유닛을 장착합니다. 참조 항목: Underhood Storage Unit (Remove and Replace).
  7. 후드 내 보관 카펫을 장착합니다. 참조 항목: Carpet - Underhood Storage (Remove and Install).
  8. 후드 래치 커버를 장착합니다. 참조 항목: Cover - Hood Latch (Remove and Replace).
  9. 우측 운전석 차량(RHD)만 해당: 외측 HVAC 플레넘 덕트를 장착합니다. 참조 항목: 플레넘 - 인입 - HVAC(탈거 및 교체).
  10. 실내 흡기 덕트를 장착합니다. 참조 항목: 덕트 - 상단 - 실내 흡기(탈거 및 교체).
  11. 후면 후드 내 에이프런을 장착합니다. 참조 항목: Underhood Apron - Rear (Remove and Replace).
  12. 터치스크린을 통해 정비 모드를 활성화합니다. 참조 항목: Service Mode.
  13. 소프트웨어 재설치를 수행합니다. 참조 항목: Software Reinstall - Touchscreen.
  14. 와이퍼 교체 절차를 실행합니다. 터치스크린에서 정비 > 개폐장치 > 창문 > 와이퍼 교체를 터치하고 실행을 터치한 다음 루틴이 완료될 때까지 기다립니다.
  15. 윈드실드 워셔 및 와이퍼 작동을 확인합니다.
