Knuckle - Suspension - Rear (Inspect)

Correction code 31030110 0.24 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See 개인 보호 to make sure wearing proper PPE when performing the below procedure.NOTE: See 인체공학적 주의 사항for safe and healthy working practices.

  • 2025-09-16: 추가 측정 정보를 추가했습니다.
  • 2025-07-11: 측정 지침을 업데이트했습니다.
  • 2025-05-15: 절차를 수정했습니다.
  • 1064697-00-B - 키트, 브레이크 로터 런아웃

Procedure

  1. 후면 휠을 탈거합니다. Wheel Assembly (Remove and Install) 을(를) 참조하세요.

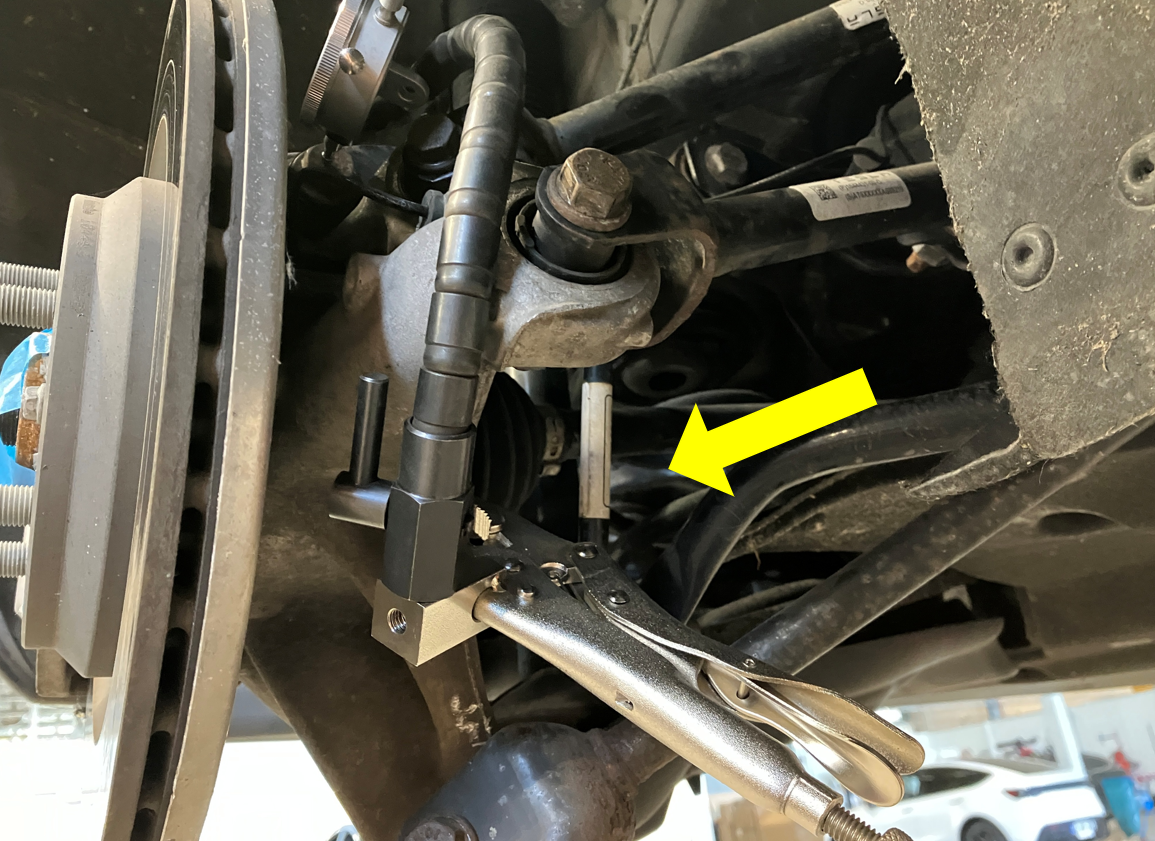

  2. 브레이크 로터 런아웃 도구를 후면 너클에 고정하고 가요성 막대를 후방 링크 쪽으로 연결합니다.

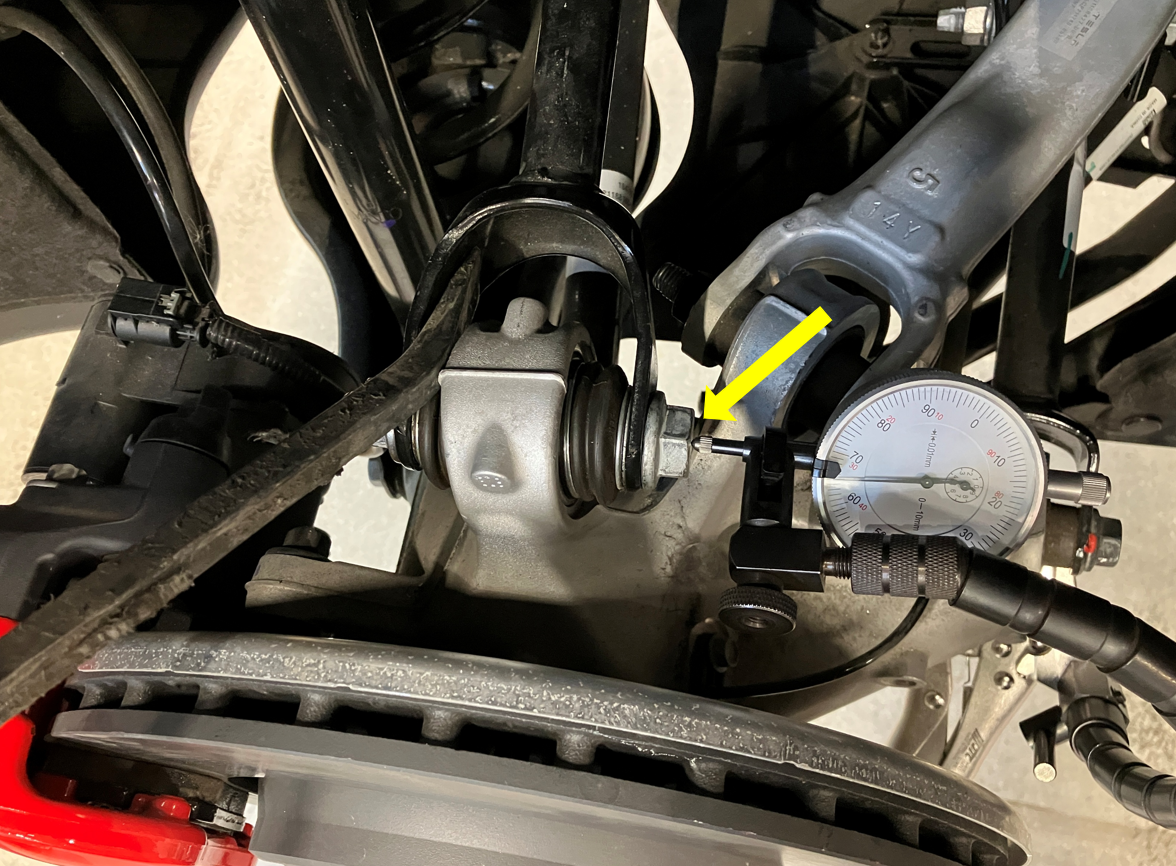

  3. 브레이크 로터 런아웃 도구의 표시기 막대가 후방 링크를 너클에 연결하는 상부 볼 조인트의 볼트에 닿도록 가요성 막대를 이동한 다음 측정값을 0으로 설정합니다.
    Informational PurposesAn informational icon, calling your attention
    참고
    표시기 막대가 적절하게 눌려 있고 맨 아래로 눌렀을 때 걸려 멈추지 않고 양방향으로 잘 움직이는지 확인하십시오.

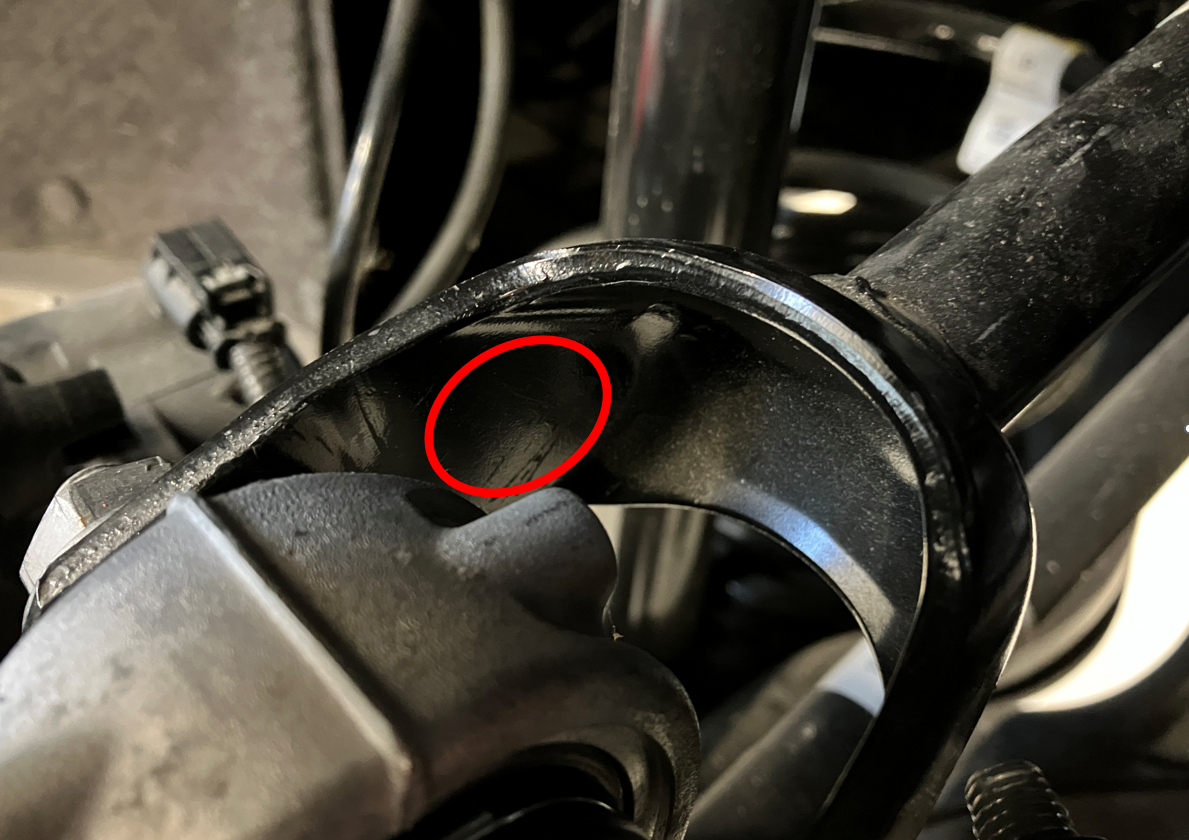

  4. 중간 크기의 프라이바를 표시된 영역에서 후방 링크와 너클 사이에 삽입합니다.
    Informational PurposesAn informational icon, calling your attention
    참고

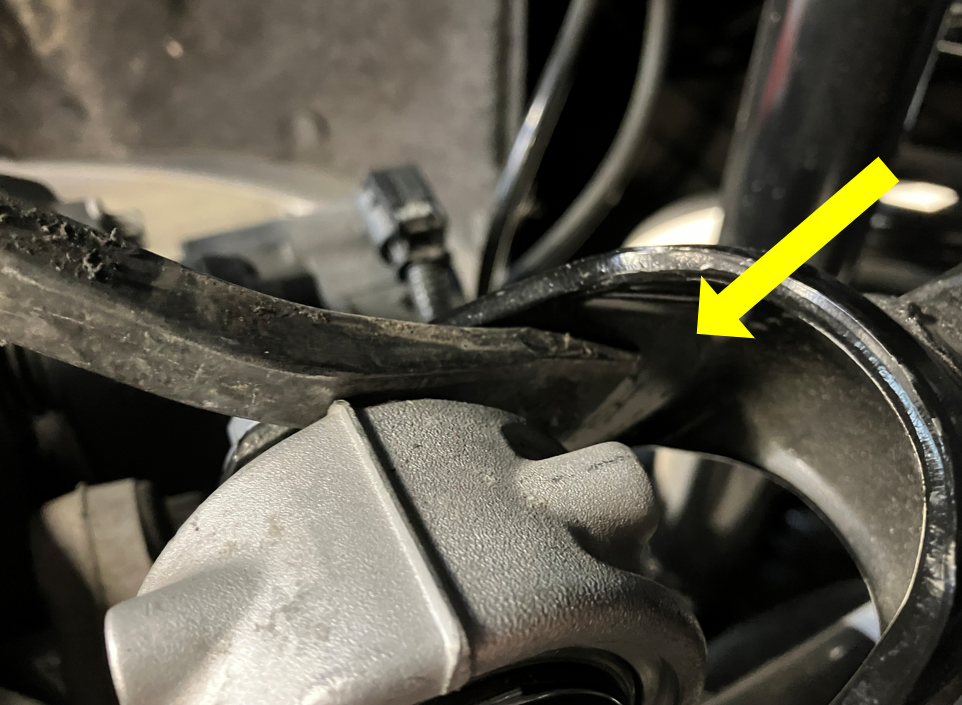

    후방 링크가 회전하는 것을 방지하기 위해 프라이바가 표시된 영역을 밀고 있는지 확인하십시오.

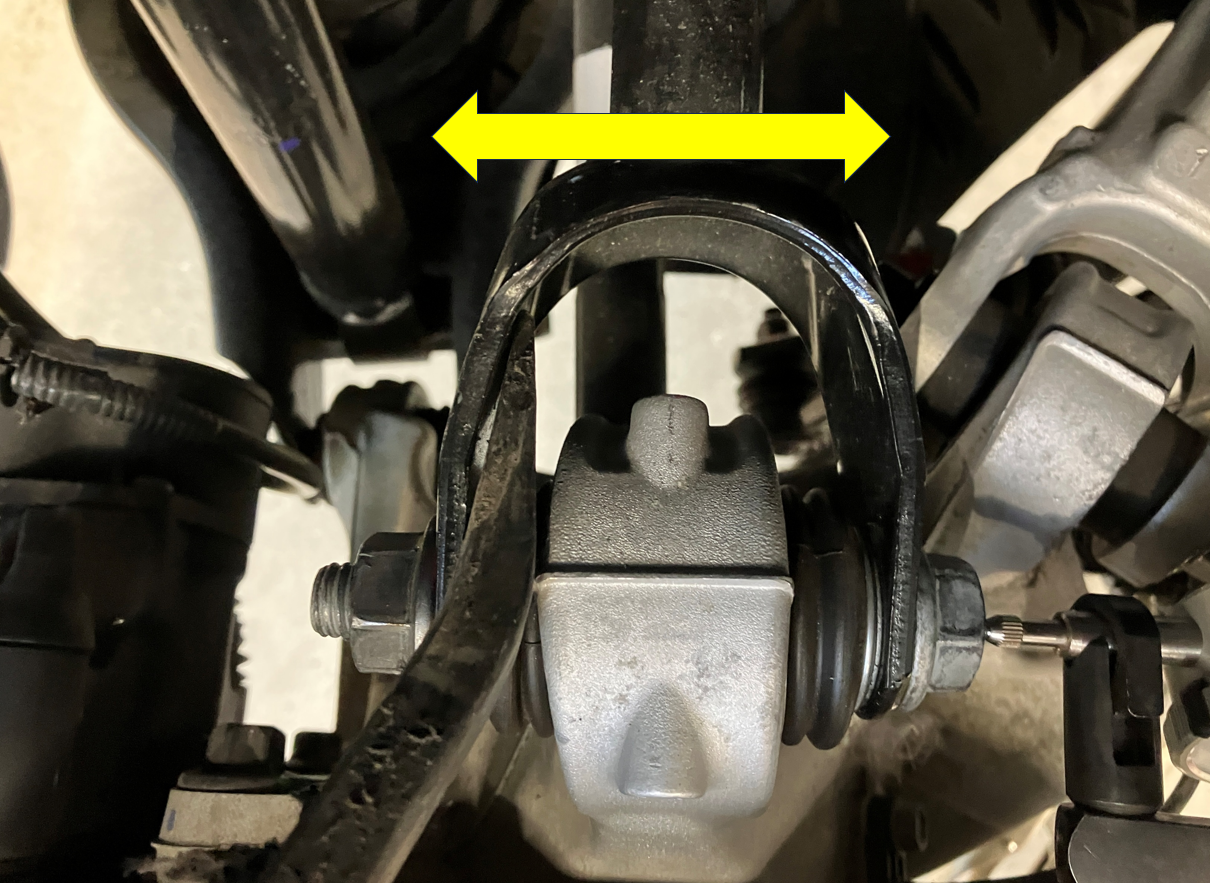

  5. 프라이바를 옆으로 움직여 후면 너클을 움직이고 너클 어셈블리가 움직일 때 표시되는 표시등의 값을 기록합니다.
  6. 후면 너클의 다른 쪽에서도 이전 단계를 반복하고 너클 어셈블리가 움직일 때 표시되는 표시등의 값을 기록합니다.
  7. 두 값을 더합니다. 허용되는 최대 값은 1.00mm(0.039인치)입니다. 전체 값이 1.00mm(0.039인치) 이상인 경우 후면 너클의 상부 볼 조인트를 교체합니다.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    경고
    The video(s) included in this procedure are meant as an overview for supplemental purposes only. Follow all of the steps listed in the procedure to avoid damage to components and/or personal injury.
  8. 후면 너클에서 브레이크 로터 런아웃 도구를 탈거합니다.
  9. 후면 휠을 장착합니다. Wheel Assembly (Remove and Install) 을(를) 참조하세요.
