Bracket - Fascia to Fender - LH (Remove and Replace)

Correction code 10011012 0.30 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
This procedure is a DRAFT. Although it has been validated, Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near High Voltage systems and components.

Remove

  1. Press the brake pedal to turn on the drive rails.
  2. On the vehicle touchscreen, set the air suspension ride height to “Very High.”
    Informational PurposesAn informational icon, calling your attention
    Note
    Touch Controls > Suspension > Very High
  3. On the vehicle touchscreen, set the suspension into "Jack Mode."
    Informational PurposesAn informational icon, calling your attention
    Note
    Touch Controls > Service > Jack Mode
  4. Turn the steering wheel fully to the right.
  5. Remove LH front fender garnish. See Fender Garnish and Wheel Fairing Assembly - Front - LH (Remove and Replace).

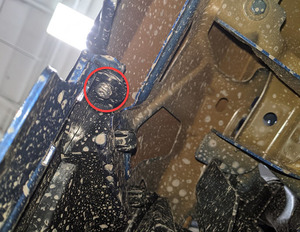

  6. Remove the screw that attaches the LH front of fascia to the fender.
    1.5 Nm (1.1 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T25 bit

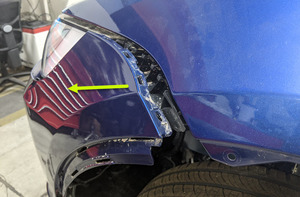

  7. Release the tabs (x3) that attach the LH side of the front fascia to the fender.

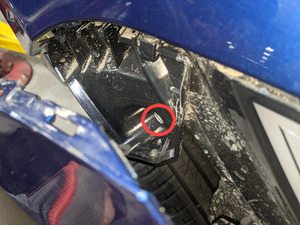

  8. Remove the bolt that attaches the LH front side of the fascia to fender bracket.
    4.7 Nm (3.5 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm deep socket

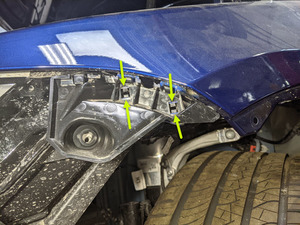

  9. Release the tabs (x4) that attach the LH fascia to fender bracket.

Install

  1. Secure the LH fascia to fender bracket with tabs (x4).
    Informational PurposesAn informational icon, calling your attention
    Note
    Verify that the tabs are fully engaged.
  2. Install the bolt that attaches the LH fascia to fender bracket.
    4.7 Nm (3.5 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm deep socket
  3. Secure the LH side of the front fascia to fender with tabs (x3),
  4. Install the screw that attaches the LH front of fascia to the fender.
    1.5 Nm (1.1 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T25 bit
  5. Install the LH front fender garnish. See Fender Garnish and Wheel Fairing Assembly - Front - LH (Remove and Replace).
  6. On the vehicle touchscreen, remove the air suspension from "Jack Mode."
    Informational PurposesAn informational icon, calling your attention
    Note
    Touch Controls > Service > Jack Mode
  7. On the vehicle touchscreen, set the air suspension ride height to "Medium".
    Informational PurposesAn informational icon, calling your attention
    Note
    Touch Controls > Suspension > Medium
