Heater - Radar (Rework) (Vehicles Built Before July 1, 2021)
Correction code
17201706
0.84
NOTE: Unless otherwise explicitly
stated in the procedure, the above correction code and FRT reflect all of the work
required to perform this procedure, including the linked procedures. Do not stack correction codes unless
explicitly told to do so.
NOTE: See Flat Rate Times to learn
more about FRTs and how they are created. To provide feedback on FRT values, email LaborTimeFeedback@tesla.com.
NOTE: See Personal Protection to make sure proper PPE is worn when
performing the below
procedure.
- 2024-12-18: Updated title and procedure details.
Rework
- Remove the front fascia assembly. See Fascia Assembly - Front (Remove and Install).
- Disconnect the radar heater electrical connector.

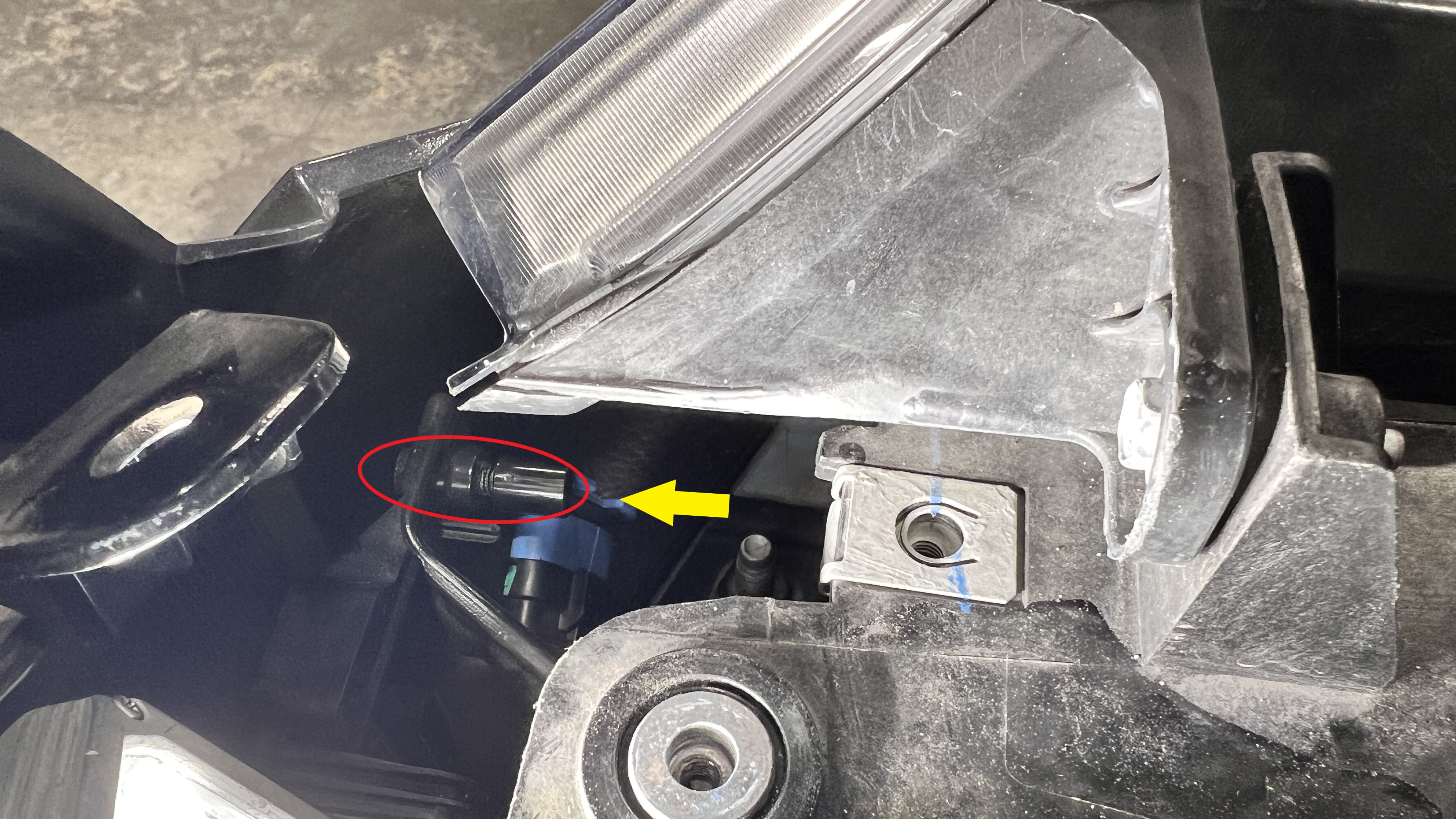

- Cut the radar heater harness near the radar heater.

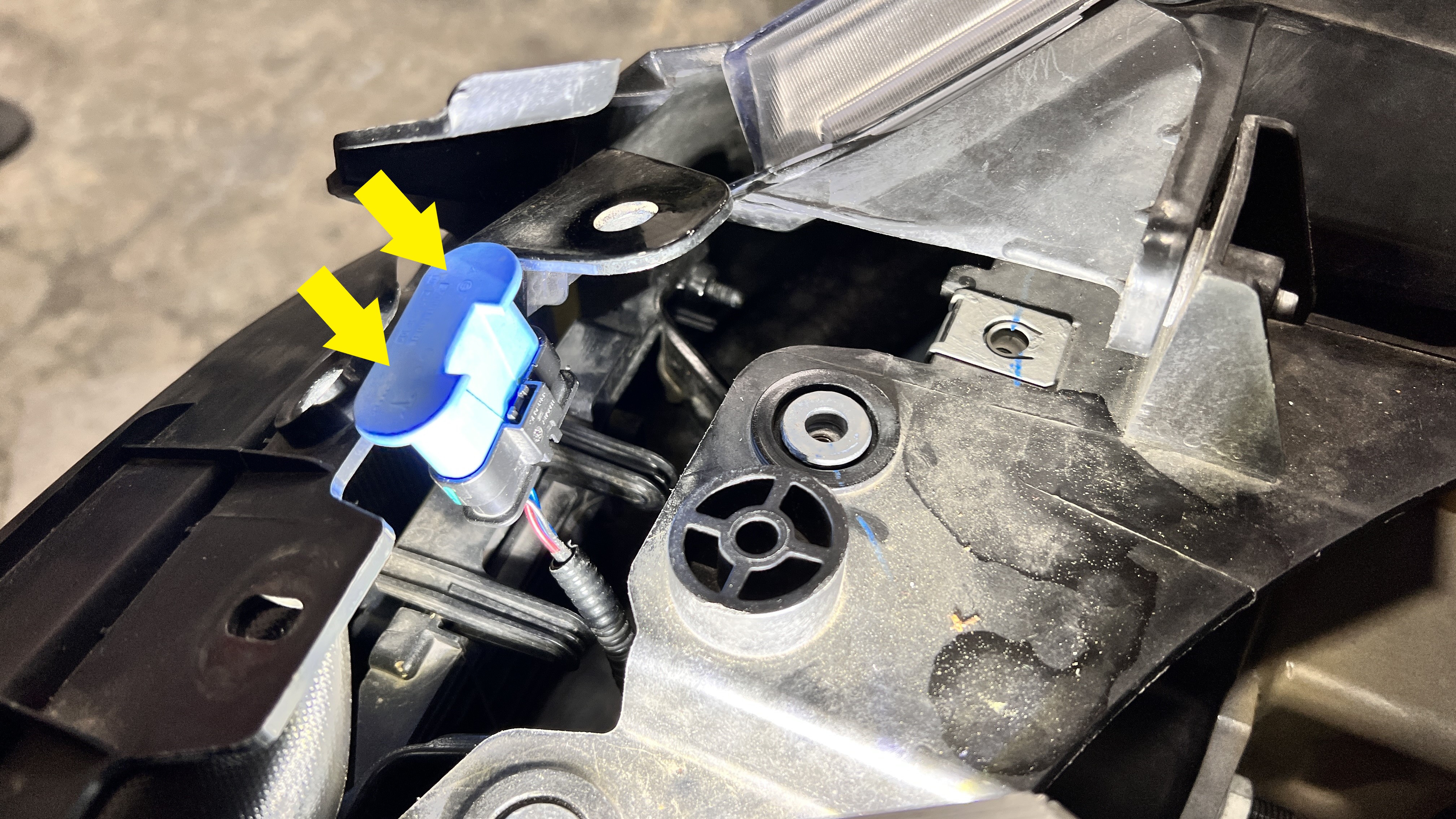

- Install a dummy plug (1471057-00-A) onto the fascia harness that goes to the radar heater.
- Insert plugs (1015293-00-A) onto the back of the connector dummy plug.

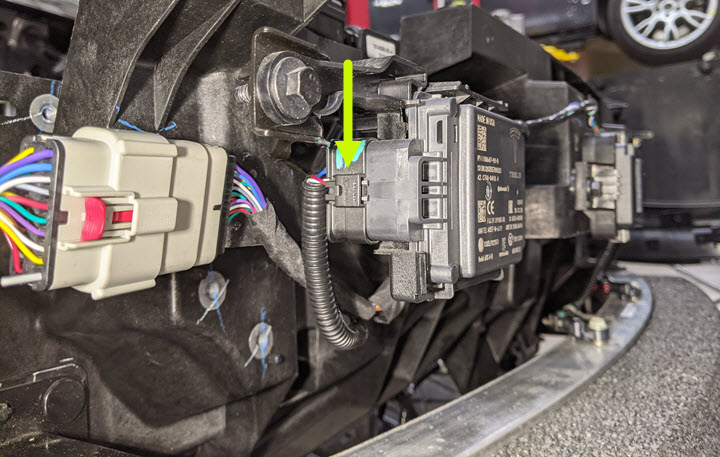

- Disconnect the front radar connector.

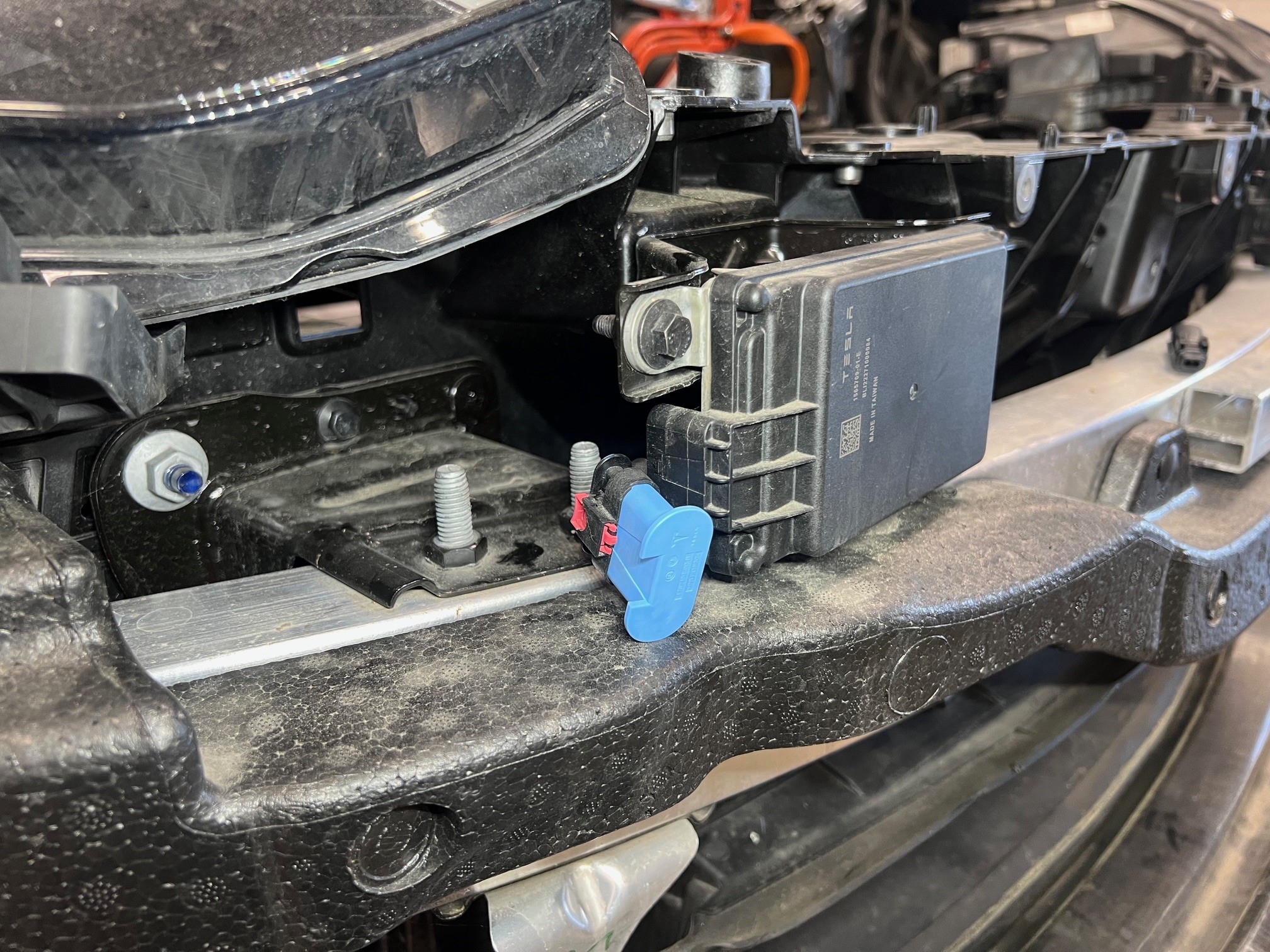

- Install a dummy plug (2208813-00-B) onto the front radar connector.

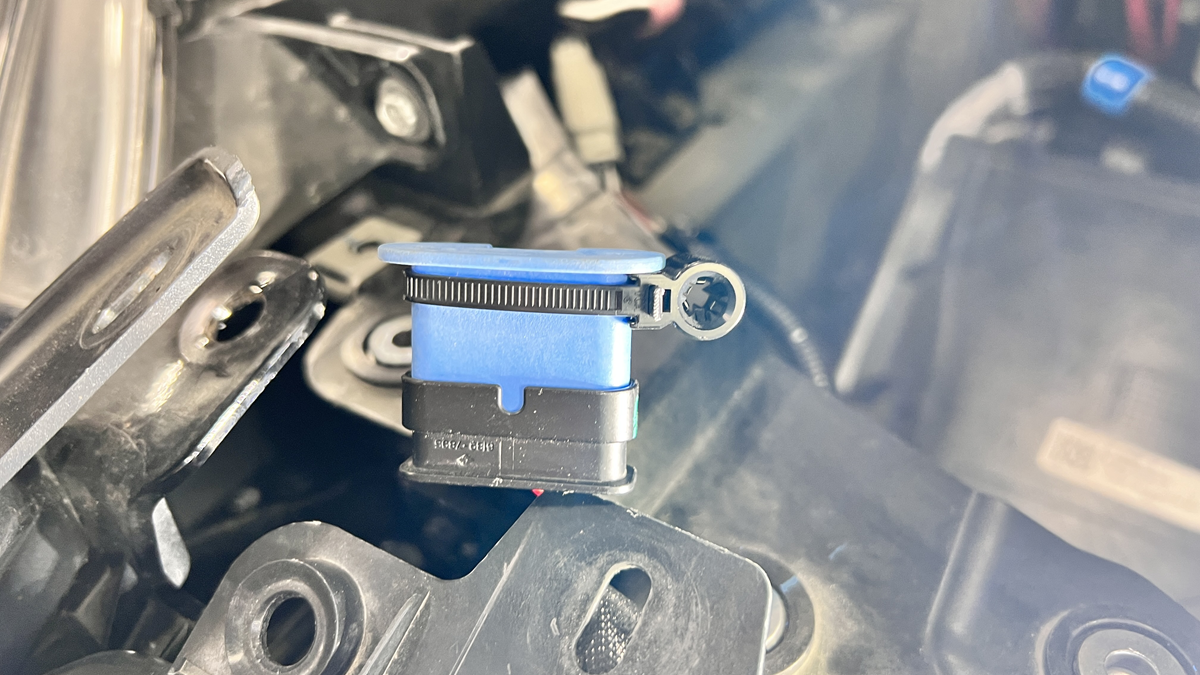

- Install a stud mount cable tie to the connector.
-
Install the stud mount to the front
radar mounting bolt protruding from the back of the radar bracket.
NoteUse a long pick as required to feed connector into position.
- Install the front fascia assembly. See Fascia Assembly - Front (Remove and Install).
