Pump - Coolant - Powertrain - Radiator (Remove and Replace)

Correction code 18308562 0.90 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email LaborTimeFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

  • 2023-11-15: Reorganized the procedure.

Remove

  1. Raise and support the vehicle. See Raise Vehicle - 2 Post Lift.
  2. Remove the underhood storage unit. See Underhood Storage Unit (Remove and Install).
  3. Disconnect LV power. See LV Power (Disconnect and Connect).
  4. Remove the front aero shield. See Panel - Aero Shield - Front (Remove and Replace).

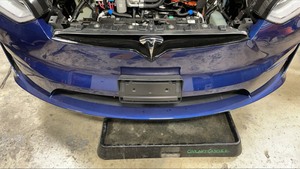

  5. Place a coolant catcher under the front of vehicle.
  6. Place absorbent material under the powertrain coolant pump.
  7. Disconnect the powertrain coolant pump electrical connector.
    Informational PurposesAn informational icon, calling your attention
    Note

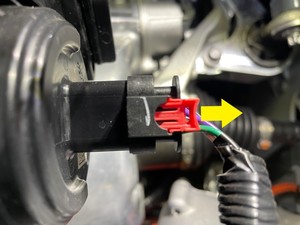

    Disengage the red locking tab and slide the tab outwards to disconnect it.

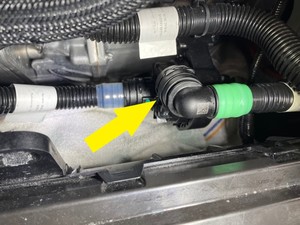

  8. Release the clip, disconnect the offboard powertrain pump to radiator hose from the powertrain coolant pump, then immediately plug both fittings.

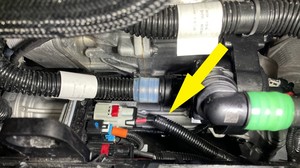

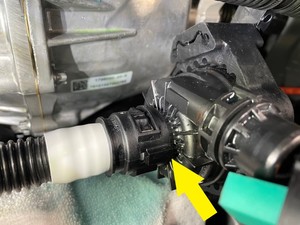

  9. Release the clip, disconnect the supermanifold to offboard powertrain pump hose from the powertrain coolant pump, then immediately plug both fittings.

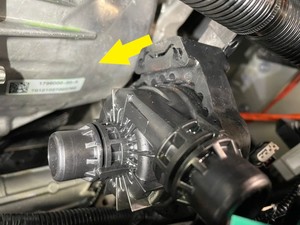

  10. Release the powertrain coolant pump from the A/C compressor bracket.

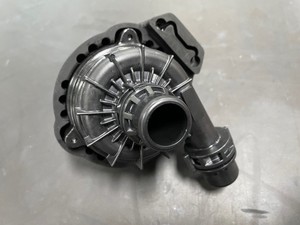

  11. Remove the powertrain coolant pump from the vehicle.

Install

  1. Install the powertrain coolant pump onto the A/C compressor bracket.
    Informational PurposesAn informational icon, calling your attention
    Note
    Make sure the powertrain coolant pump is fully seated.
  2. Remove the plugs, immediately connect the supermanifold to offboard powertrain pump hose to the powertrain coolant pump, then. fasten the clip.
    Informational PurposesAn informational icon, calling your attention
    Note
    Perform a push-pull-push test on the fittings to make sure that they are secure.
  3. Remove the plugs, immediately connect the powertrain supply hose to the powertrain coolant pump, then fasten the clip.
    Informational PurposesAn informational icon, calling your attention
    Note
    Perform a push-pull-push test on the fittings to make sure that they are secure.

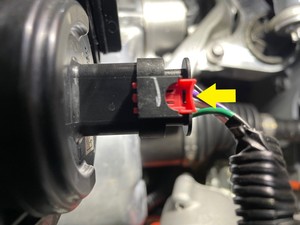

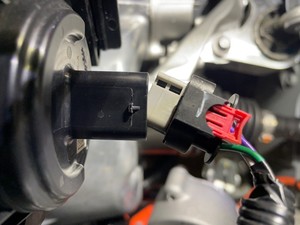

  4. Connect the powertrain coolant pump electrical connector.
  5. Remove the absorbent material from under the powertrain coolant pump and wipe off any residue.
  6. Remove the coolant catcher from under the vehicle.
  7. Install the front aero shield. See Panel - Aero Shield - Front (Remove and Replace).
  8. Perform the cooling system (partial refill and bleed) procedure. See Cooling System (Partial Refill and Bleed).
  9. Install the underhood storage unit. See Underhood Storage Unit (Remove and Install).
  10. Calibrate the rear doors.
    Informational PurposesAn informational icon, calling your attention
    Note
    If the "Calibration Needed" message appears on the vehicle touchscreen, touch and hold Calibrate to calibrate the rear doors.
  11. Remove the vehicle from the 2 post lift. See Raise Vehicle - 2 Post Lift.
