Link - Aft - Upper - Rear - LH (Remove and Replace)

Correction code 31035102 0.30 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

  • 2024-10-24: Deleted steps for ride height measurement.
  • 2024-07-08: Added note to ensure vehicle ride height is set to "Medium" and in "Jack Mode" during install.
  • 2024-03-07: Added a step of discarding the rotor bolt after removal and deleted the step of installing the rotor bolt.

Torque Specifications

Table 1. Torque Specifications: Suspension - Rear (Torque)
Description Torque Value Recommended Tools Reuse/Replace Notes
Bolt that attaches the rear brake hose to the lower aft link
6 Nm (4.4 lbs-ft)
  • Nutsetter 1/4in Dr. 6in. X 10 mm magnetic deep
Reuse
Nut and bolt that attaches the rear upper aft link to the knuckle
150 Nm (110.6 lbs-ft)
  • 21 mm socket
Reuse
Bolts (x2) that attach the rear upper aft link to the subframe
85 Nm (62.7 lbs-ft)
  • 16 mm socket
Reuse

Remove

  1. Raise and support the vehicle. See Raise Vehicle - 2 Post Lift
  2. Remove the LH rear wheel. See Wheel Assembly (Remove and Install).

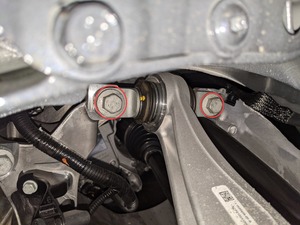

  3. Remove the bolts (x2) that attach the LH rear upper aft link to the subframe.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 16 mm socket

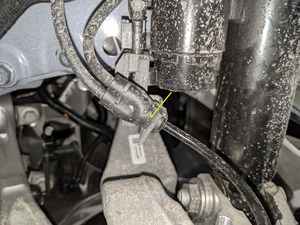

  4. Remove the clip that attaches the wire harness to the knuckle.

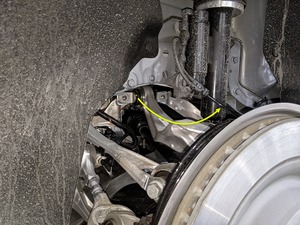

  5. Remove the wire harness from the bracket.

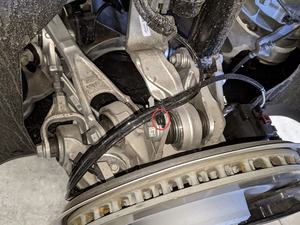

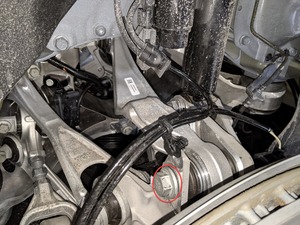

  6. Remove the bolt that attaches the LH rear upper aft link to the knuckle.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 21 mm socket

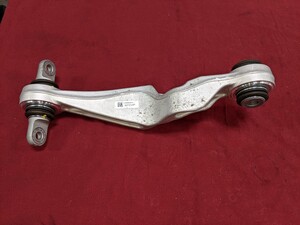

  7. Remove the LH rear upper aft link from the vehicle.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Carefully remove the upper aft link to avoid damage to the wiring harness.

Install

  1. Position the LH upper aft link to the knuckle, and install the bolt that attaches the link to the knuckle.
    Informational PurposesAn informational icon, calling your attention
    Note
    The bolt will be torqued at a later step.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 21 mm socket
  2. Install the bolts (x2) that attach the LH upper aft link to the subframe.
    85 Nm (62.7 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 16 mm socket
  3. Position the clip that attaches the wiring harness to the knuckle.
  4. Install the wiring harness into the bracket.
  5. If installed, remove and discard the bolt that attaches the brake rotor to the hub.
    Informational PurposesAn informational icon, calling your attention
    Note
    A new bolt will not be installed.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 13 mm socket
  6. Torque the bolt that attaches the LH rear upper aft link to the knuckle and mark it with a paint pen.
    150 Nm (110.6 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 21 mm socket
  7. Install the LH rear wheel. See Wheel Assembly (Remove and Install).
  8. Remove the vehicle from the lift. See Raise Vehicle - 2 Post Lift.
  9. Refer to the Alignment Requirement tables to determine whether an EPAS alignment check (EC) or four wheel alignment check (AC) is necessary. If performed, add the alignment check/adjust as a separate activity. See Alignment Requirement - Suspension.
