Footwell Light - Rear - Center Console (Remove and Replace)

Correction code 17351112 0.12 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Open all the doors and lower the LH front window.
  2. Move the front seats forward.
  3. Remove the center console lower rear panel. See Panel - Lower Rear - Center Console (Remove and Replace).

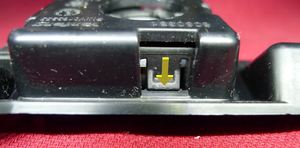

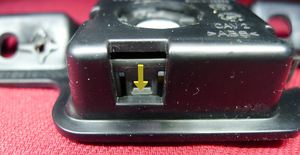

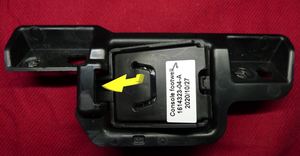

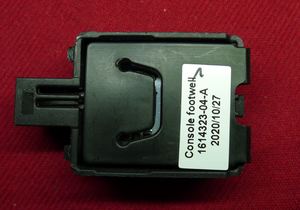

  4. Release the tabs (x2) that attach the center console rear footwell light to the lamp assembly, and then remove the light from the assembly.

Install

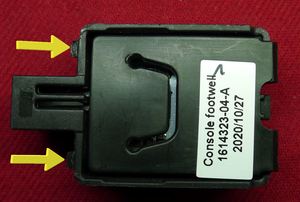

  1. Position the center console rear footwell light into the lamp assembly, and then secure the tabs (x2) that attach the light to the assembly.
    Informational PurposesAn informational icon, calling your attention
    Note
    Make sure the datums engage before securing the tabs.
  2. Install the center console lower rear panel. See Panel - Lower Rear - Center Console (Remove and Replace).
  3. Move the front seats to original positions.
  4. Raise the LH front window and close all the doors.
