Bracket - Toeboard - Center (Remove and Replace)

Correction code 14058102 0.54 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email LaborTimeFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
This procedure is a DRAFT. Although it has been validated, Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near High Voltage systems and components. Provide corrections and feedback to ServiceDevelopment@teslamotors.com.

Remove

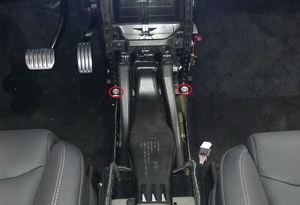

  1. Remove the 1st row center console assembly. See Center Console Assembly - 1st Row (Remove and Install).

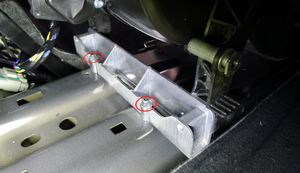

  2. Remove the bolts (x2) that attach the instrument panel carrier to the center toeboard bracket.
    27 Nm (19.9 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 13 mm socket

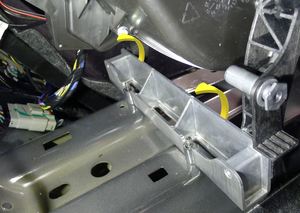

  3. Remove the nuts (x2) that attach the center toeboard bracket to the floor, and then remove the bracket from the vehicle.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm socket
    Informational PurposesAn informational icon, calling your attention
    Note

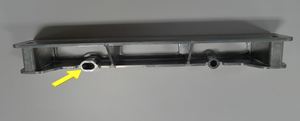

    The RH bracket opening is slotted to assist removal.

Install

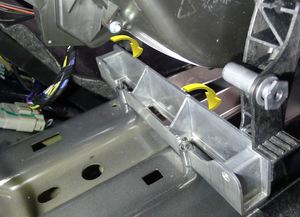

  1. Install the nuts (x2) that attach the center toeboard bracket to the floor.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm socket
    Informational PurposesAn informational icon, calling your attention
    Note
    The RH bracket opening is slotted to assist installation.
  2. Install the bolts (x2) that attach the instrument panel carrier to the center toeboard bracket.
    27 Nm (19.9 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 13 mm socket
  3. Install the 1st row center console assembly. See Center Console Assembly - 1st Row (Remove and Install).
