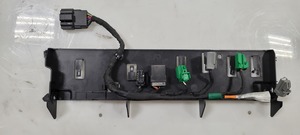

Tray Harness - 3rd Row - LH (Remove and Replace)

Correction code 13066502 0.18 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email LaborTimeFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Open the LH falcon wing door.
  2. Open the liftgate.
  3. Fold the 2nd row 60 seat downwards.
  4. Remove the rear trunk load floor. See Trunk Load Floor - Rear (Remove and Replace).
  5. Remove the rear trunk carpet. See Carpet - Rear Trunk (5 Seat) (Remove and Replace).

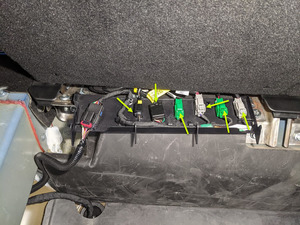

  6. Disconnect the LH 3rd row tray harness connectors (x7).
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Pocket screwdriver

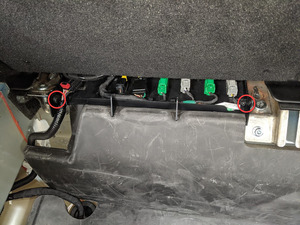

  7. Release the push clips (x2) that attach the LH 3rd row tray harness to the seat frame, and then remove the harness from the vehicle.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Clip prytool

Install

  1. Position the LH 3rd row tray harness on the vehicle, and then install the push clips (x2) that attach the harness to the seat frame.
  2. Connect the LH 3rd row tray harness connectors (x7).
  3. Install the rear trunk carpet. See Carpet - Rear Trunk (5 Seat) (Remove and Replace).
  4. Install the rear trunk load floor. See Trunk Load Floor - Rear (Remove and Replace).
  5. Unfold the LH 3rd row seat into original position.
  6. Close the liftgate.
  7. Unfold the 2nd row 60 seat into original position.
  8. Close the LH falcon wing door.
