Light - Fog - Front - LH (Remove and Replace)

Correction code 17404002 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Remove the front fascia assembly from the vehicle. See Fascia Assembly - Front (Remove and Install).

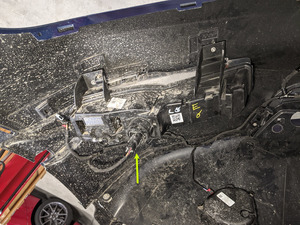

  2. Disconnect the LH front fog light electrical connector.

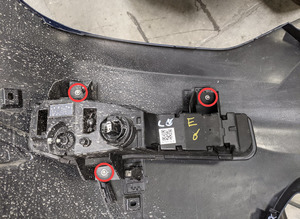

  3. Remove the screws (x3) that attach the LH front fog light to the front fascia assembly.
    2.5 Nm (1.8 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T25 socket

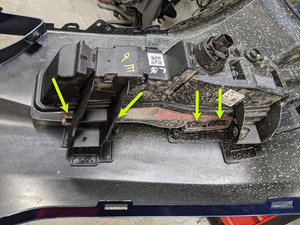

  4. Release the tabs (x4) that attach the LH front fog light to the front fascia assembly, and then remove the fog light from the assembly.

Install

  1. Position the LH front fog light onto the front fascia assembly, and then secure the tabs (x4) that attach the fog light to the assembly.
  2. Install the screws (x3) that attach the LH front fog light to the front fascia assembly.
    2.5 Nm (1.8 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T25 socket
  3. Connect the LH front fog light electrical connector.
  4. Install the front fascia assembly onto the vehicle. See Fascia Assembly - Front (Remove and Install).
