Service Panel - Instrument Panel (Remove and Replace)

Correction code 21051212 0.12 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

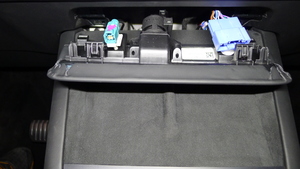

  1. Remove the phone dock assembly from the center console. See Phone Dock - Center Console (Remove and Replace).
    Informational PurposesAn informational icon, calling your attention
    Note
    It is not necessary to remove the inductive charger from dock assembly.

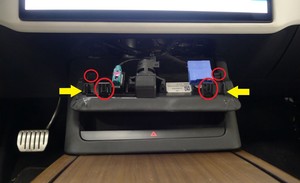

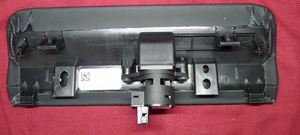

  2. Release the tabs (x2) and locating pins (x4) that attach the service panel to the instrument panel.
    Informational PurposesAn informational icon, calling your attention
    Note

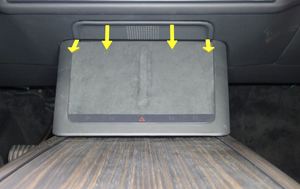

    Release the top tabs, and then the panel slide rearward.

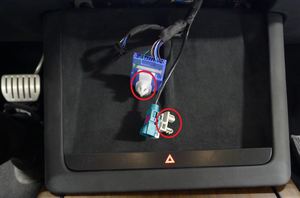

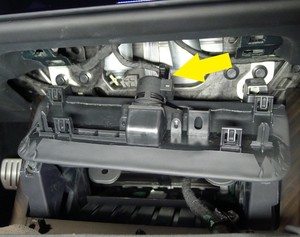

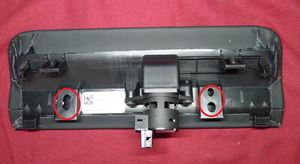

  3. Release the clips (x2) that attach the diagnostic and CAN harnesses to the service panel.
  4. Disconnect the cabin temperature sensor fan electrical connector, and then remove the service panel from the vehicle.

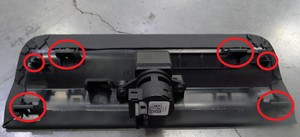

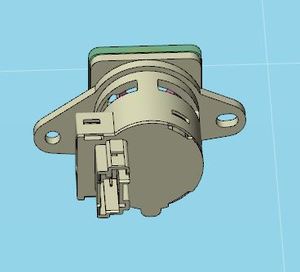

  5. Remove the screws (x2) that attach the cabin temperature sensor fan to the service panel, and then remove the sensor fan from the service panel.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T20 socket

Install

  1. Position the cabin temperature fan onto the service panel, and then install the screws (x2) that attach the senor fan to the service panel.
    2 Nm (1.5 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T20 socket
  2. Connect the cabin temperature sensor fan electrical connector.
  3. Secure the clips (x2) that attach the diagnostic and CAN harnesses to the service panel.
  4. Position the service panel into the instrument panel, and then secure the tabs (x2) and locating pins (x4) that attach the service panel to the instrument panel.
    Informational PurposesAn informational icon, calling your attention
    Note

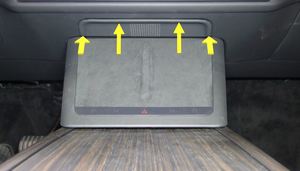

    Slide forward to engage the locating pins, and then secure the tabs upward into the instrument panel.
  5. Install the phone dock assembly. See Phone Dock - Center Console (Remove and Replace).
