Microswitch - EZ Entry - 2nd Row - LH (7 Seat) (Remove and Replace)

Correction code 13026102 1.86 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Remove the LH 2nd row seat assembly from the vehicle. See Seat Assembly - 2nd Row - LH (7 Seat) (Remove and Replace).
  2. Move the LH 2nd row seat backs to the upright position.
  3. Release the J-hooks (x6) that attach the rear toe kick to the LH 2nd row seat assembly.
    Informational PurposesAn informational icon, calling your attention
    Note
    Release lower outer hooks (x2) to expose the inner clips (x4).
  4. Disconnect the 2nd row center seatbelt buckle electrical connector, and then release the edge clip that attaches the connector to the seat assembly.
  5. Remove and discard the bolt that attaches the 2nd row center seatbelt buckle to the seat assembly, and then remove the buckle from the seat assembly.
    45 Nm (33.2 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T50 socket
  6. Remove the LH 2nd row recliner lever. See Lever - Recliner - 2nd Row - LH (Remove and Replace).
  7. Remove the LH 2nd row recliner cover. See Cover - Recliner - 2nd Row - LH (Remove and Replace).
  8. Remove the bolt that attaches the LH 2nd row outer seatbelt to the seat assembly, and then remove the seatbelt from the seat assembly.
    45 Nm (33.2 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T50 socket
  9. Release the J-hooks (x11) that attach the underside of the LH 2nd row seat upholstery to the seat assembly.
  10. Disconnect the LH 2nd row seat seat cushion electrical connectors (x4), and then release the clips (x2) that attach the black connectors (x2) to the seat frame
  11. Remove the LH 2nd row seat cushion assembly from the seat assembly.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Use caution when feeding the J-hooks and connectors through the seat frame.
  12. Fold the LH 2nd row seat back to the down position.
    Informational PurposesAn informational icon, calling your attention
    Note
    Use LH recliner lever without installing clip.
  13. Unzip the LH 2nd row seat back upholstery on both sides.
    Informational PurposesAn informational icon, calling your attention
    Note
    Ends of the zippers are tucked underneath the upholstery. Use a pick to aid in moving the zipper.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Pick Miniature Soft Grip, 90 degree tip, 6 in
  14. Release 60 seat back upholstery and lift up.
    Informational PurposesAn informational icon, calling your attention
    Note
    Release J-hook holding the back down.
  15. Release the clips (x13) that attach the LH 2nd row seat plastic seat back to the seat, and then remove the plastic seat back from the seat.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Clip prytool 20in
  16. Fold the LH 2nd row seat to the upright position.

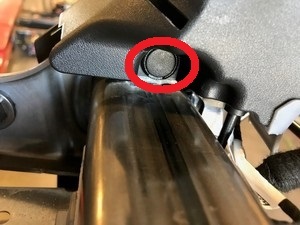

  17. Remove the bolt that attaches the LH 2nd row seat torsion spring bearing cap to the seat, and then remove the cap from the seat.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm socket
    • Flex head ratchet/flex head torque wrench
  18. Release the lower part of the LH 2nd row seat back cushion.
  19. Remove the elastic bands (x2) at the RH outer hinge cover.

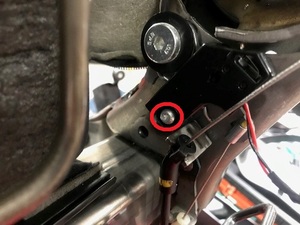

  20. Release the harness clip and remove the push clip that attach the RH A-cover to the seat assembly, and then remove the A-cover from the seat assembly.

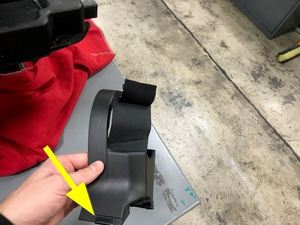

  21. Release the clips (x2) and tabs (x4) that attach the RH outer hinge cover to the seat assembly, and then remove the cover from the assembly.
    Informational PurposesAn informational icon, calling your attention
    Note

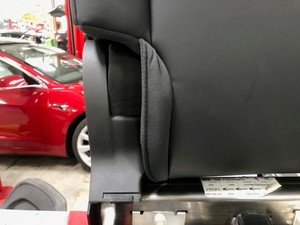

    Pull the cover away from seat to release the clips, release tabs from bottom up, and then lift the cover to release the top edge from the seat frame.

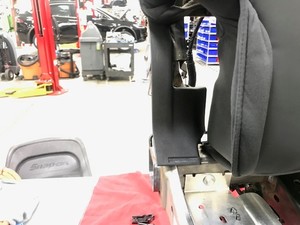

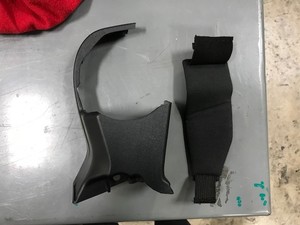

  22. Remove the push clip that attaches the RH inner B-cover to the seat assembly, and then remove the B-cover from the seat assembly.

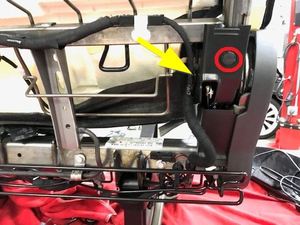

  23. Disconnect the LH 2nd row EZ entry microswitch electrical connector.
  24. Remove the screw that attaches the LH 2nd row EZ entry microswitch to the bracket.
    3.5 Nm (2.6 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • T20 socket

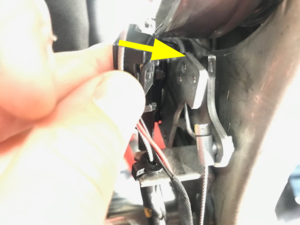

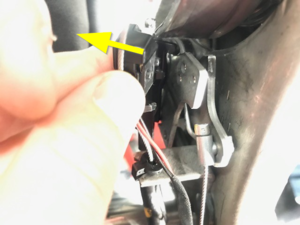

  25. Release the clip that attaches the EZ entry microswitch bracket to the seat assembly, and then remove the bracket from the assembly.

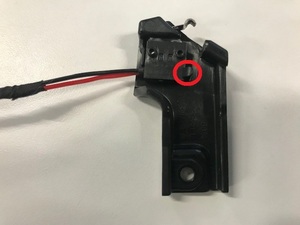

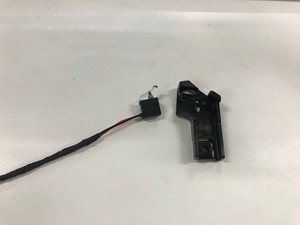

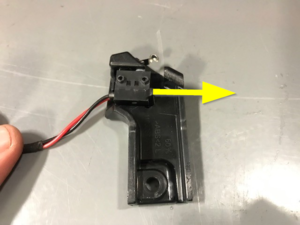

  26. Gently press the clip to the side to release the EZ entry microswitch from the bracket.

Install

  1. Position the LH 2nd row EZ entry microswitch to the bracket, and then secure the clip that attaches the microswitch to the bracket.
    Informational PurposesAn informational icon, calling your attention
    Note

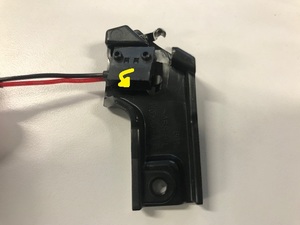

    Make sure the microswitch seats to bracket properly with the clip retaining switch.
  2. Position the EZ entry microswitch bracket to the seat assembly, and then secure the clip that attaches the bracket to the assembly.
    Informational PurposesAn informational icon, calling your attention
    Note

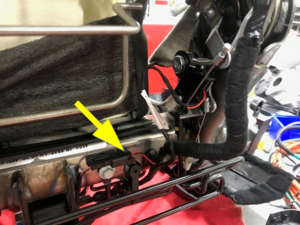

    Make sure the micro sensor bracket clip seats to the recliner sensor bracket.
  3. Install the screw that attaches the LH 2nd row EZ entry microswitch to the bracket.
    3.5 Nm (2.6 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • T20 socket
  4. Connect the LH 2nd row EZ entry microswitch electrical connector.
  5. Install the elastic band to the RH inner B-cover.
  6. Position the RH inner B-cover to the seat assembly, and then install the push clip that attaches the B-cover to the seat assembly.
  7. Position the RH outer hinge cover to the seat assembly, and then secure the clips (x2) and tabs (x4) that attach the cover to the assembly.
    Informational PurposesAn informational icon, calling your attention
    Note
    Slide the upper tabs down onto the seat frame, and then secure the clips and tabs.
  8. Position the RH A-cover to the seat assembly, and then install the harness clip and push clip that attach the A-cover to the seat assembly.
  9. Secure the elastic bands (x2) at the RH outer hinge cover.
  10. Install the lower part of the LH 2nd row seat back cushion.
  11. Position the LH 2nd row seat torsion spring bearing cap on the seat, and then install the bolt that attaches the cap to the seat.
    0.5 Nm (4 lbs-in)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm socket
    • Flex head ratchet/flex head torque wrench
    • Ratchet/torque wrench
  12. Fold the LH 2nd row seat back to the down position.
  13. Position the LH 2nd row seat plastic seat back on the seat, and then install the clips (x13) that attach the seat back to the seat.
  14. Zip the LH 2nd row seat back upholstery on both sides.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Use caution to not pull the zippers off the track.
    Informational PurposesAn informational icon, calling your attention
    Note
    Use a pick to aid in moving the zipper. Tuck the ends of the zippers underneath the upholstery.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Pick Miniature Soft Grip, 90 degree tip, 6 in
  15. Secure lower portion of 60 seat back upholstery.
    Informational PurposesAn informational icon, calling your attention
    Note
    Secure J-hook along lower edge.
  16. Fold the LH 2nd row seat back to the upright position.
  17. Install the LH 2nd row seat cushion assembly into the seat assembly.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Use caution when feeding the J-hooks and connectors through the seat frame.
  18. Secure the black connectors (x2) to the LH 2nd row seat frame, and then connect the electrical connectors (x4).
  19. Secure the J-hooks (x11) that attach the underside of the LH 2nd row seat upholstery to the seat assembly.
  20. Position the LH 2nd row outer seat belt to the seat assembly, and then install a new bolt that attaches seatbelt to the seat assembly.
    45 Nm (33.2 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T50 socket
  21. Install the LH 2nd row recliner cover. See Cover - Recliner - 2nd Row - LH (Remove and Replace).
  22. Install the LH 2nd row recliner lever. See Lever - Recliner - 2nd Row - LH (Remove and Replace).
  23. Position the 2nd row center seatbelt buckle onto the seat assembly, and then install a new bolt that attaches the buckle to the seat assembly.
    45 Nm (33.2 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T50 socket
  24. Secure the edge clip that attaches the 2nd row center seatbelt buckle electrical connector to the seat assembly, and then connect the connector.
  25. Secure toe kick to 60 seat assembly.
    Informational PurposesAn informational icon, calling your attention
    Note
    6x J-hooks, Secure inner 4 clips, then lower outer 2.
  26. Fold LH 2nd row seat back to the down position.
  27. Install the LH 2nd row seat assembly into the vehicle. See Seat Assembly - 2nd Row - LH (7 Seat) (Remove and Replace).
    Informational PurposesAn informational icon, calling your attention
    Note
    It is not necessary to redeploy the vehicle firmware after installing the seat assembly.
