Crush Plastic - Rear - 3rd Row - LH (Remove and Replace)
Correction code
13066102
0.54
NOTE: Unless otherwise explicitly
stated in the procedure, the above correction code and FRT reflect all of the work
required to perform this procedure, including the linked procedures. Do not stack correction codes unless
explicitly told to do so.
NOTE: See Flat Rate Times to learn
more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com.
NOTE: See Personal Protection to make sure proper PPE is worn when
performing the below
procedure.
Remove
- Remove the 3rd row seat assembly from the vehicle. See Seat Assembly - 3rd Row (Remove and Replace).
- Lay the 3rd row seat assembly down on a protected surface.
-

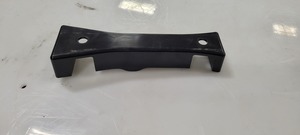

Remove the clips (x2) that attach the
LH 3rd row rear crush plastic to the seat assembly, and then remove the crush plastic
from the assembly.
Install
-
Position the LH 3rd row rear crush plastic into the seat assembly, and then install
the clips (x2) that attach the crush plastic to the assembly.
- Install the 3rd row seat assembly into the vehicle. See Seat Assembly - 3rd Row (Remove and Replace).
