Cover - Footwell - Inboard - Driver (Remove and Replace)

Correction code 14055312 0.12 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Remove the driver outboard footwell cover. See Cover - Footwell - Outboard - Driver (Remove and Replace).

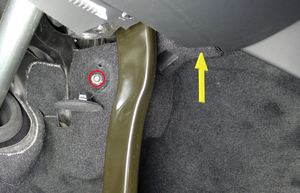

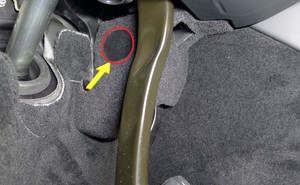

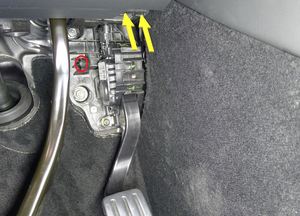

  2. Remove the clip and screw that attach the driver inboard footwell cover to the vehicle, and then remove the cover from the vehicle.
    1 Nm (.7 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 8mm socket

Install

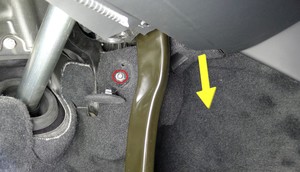

  1. Position the driver inboard footwell cover into the vehicle, and then install the clip and screw that attach the cover to the vehicle.
    1 Nm (.7 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    Note

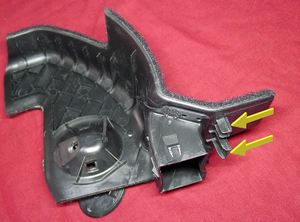

    Align the datums and footwell vent before installing the screw.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 8mm socket
  2. Install the driver outboard footwell cover. See Cover - Footwell - Outboard - Driver (Remove and Replace).
