Link - Stabilizer Bar - Rear - LH (Remove and Replace)

Correction code 31033402 0.24 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Torque Specifications

Table 1. Torque Specifications: Suspension - Rear (Torque)
Description Torque Value Recommended Tools Reuse/Replace Notes
Nut that attaches the rear stabilizer bar end link to the knuckle
55 Nm (40.6 lbs-ft)
  • 15 mm socket
Replace
Nut that attaches the stabilizer bar end link to the rear stabilizer bar
55 Nm (40.6 lbs-ft)
  • 15 mm socket
  • 5 mm hex
Replace

Remove

  1. On the touchscreen, touch Controls > Service > Jack Mode to enable Jack Mode.
  2. Raise and support the vehicle. See Raise Vehicle - 2 Post Lift
  3. Remove the LH rear wheel. See Wheel Assembly (Remove and Install).

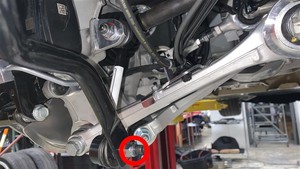

  4. Remove the nut that attaches the LH rear stabilizer bar end link from rear stabilizer bar.
    Informational PurposesAn informational icon, calling your attention
    Note
    Break the nut loose, and then counter-hold the ball joint with a 5mm hex to remove the nut.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 15 mm socket
    • 5 mm hex

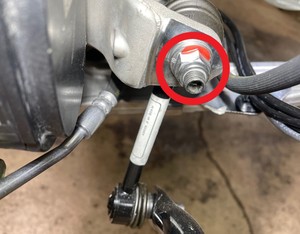

  5. Remove the nut that attaches the LH rear stabilizer bar link to the rear knuckle.
    Informational PurposesAn informational icon, calling your attention
    Note
    Break the nut loose, and then counter-hold the ball joint with a 5mm hex to remove the nut.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 15 mm socket

Install

  1. Position the LH rear stabilizer bar link onto the knuckle assembly, and then install a new nut that attaches the link to the assembly.
    55 Nm (40.6 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    Note
    Counter-hold the ball joint with a 5mm hex to tighten the nut.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 15 mm socket
  2. Position the LH rear stabilizer bar link to the stabilizer bar assembly, and then install a new nut that attaches the link to the assembly.
    55 Nm (40.6 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    Note
    Adjust the end link to align with stabilizer bar. Move the stabilizer bar up/down to get the correct angle to install end link as needed.
    Informational PurposesAn informational icon, calling your attention
    Note
    Counter-hold the ball joint with a 5mm hex to tighten the nut.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 15 mm socket
    • 5 mm hex
  3. Install the LH rear wheel. See Wheel Assembly (Remove and Install).
  4. Remove the vehicle from the lift. See Raise Vehicle - 2 Post Lift.
