Correction code 12200052 3.84 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

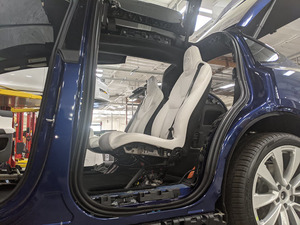

1. Open all four doors
2. Lower LH and RH front windows

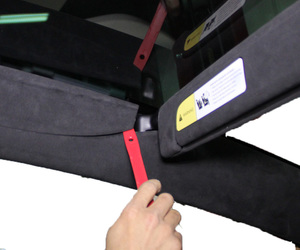

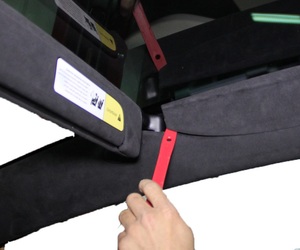

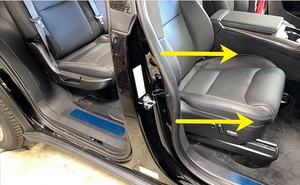

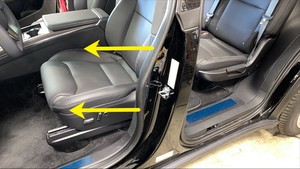

3. Move LH front seat backward
4. Remove LH sunvisor bezel
   Note

   6x clips, 5x tabs, Release clips, then slide bezel towards front of vehicle to release

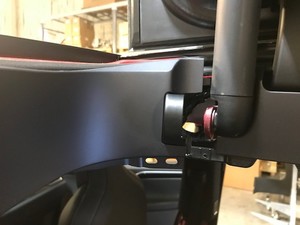

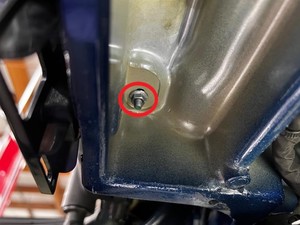

5. Remove bolts securing LH upper A-pillar to body
   Note

   2x bolts, 10mm, 5 Nm, 1x screw, T20, 2.5 Nm, 1x nyloc nut, 13mm, 5 Nm, Discard nut after removal

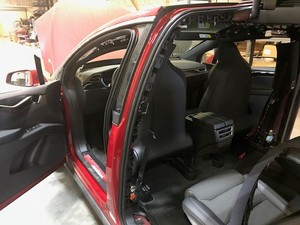

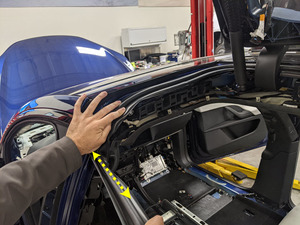

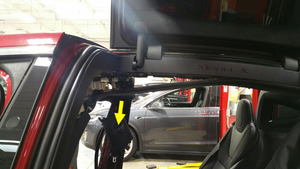

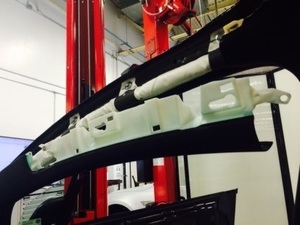

6. Move LH upper A-pillar for access to headliner

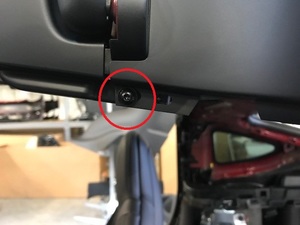

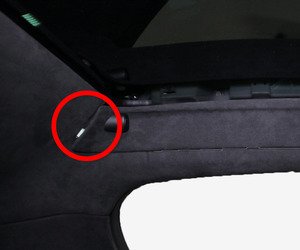

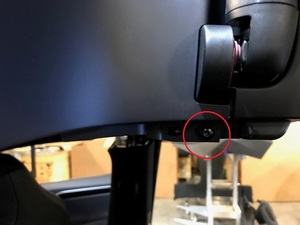

7. Remove screw securing LH front end of headliner to body
   Note

   1x screw, T20, 2 Nm



8. Move LH front seat forward

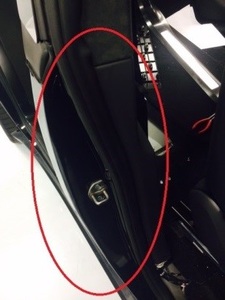

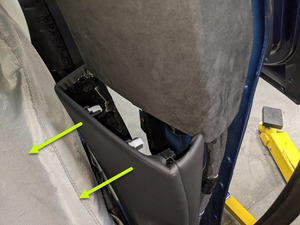

9. Move LH front door seal away from B-pillar

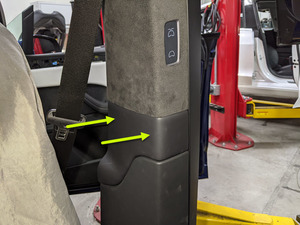

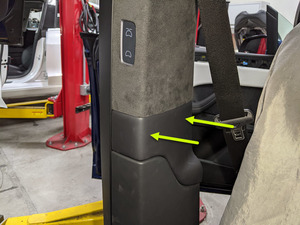

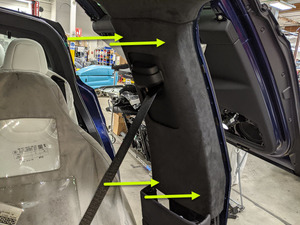

10. Release upper portion of LH lower B-pillar to LH upper B-pillar
    Note

    5x clips

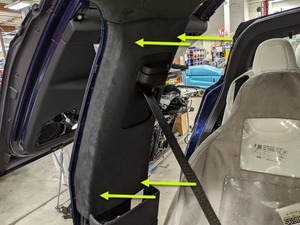

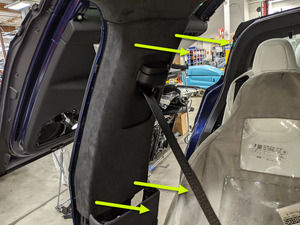

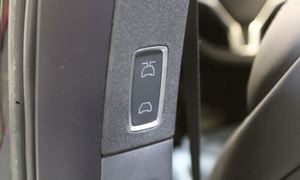

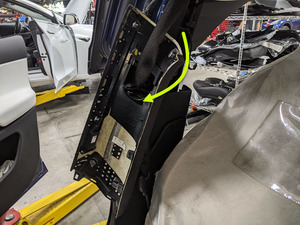

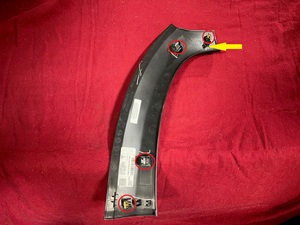

11. Release LH upper B-pillar from body
    Note

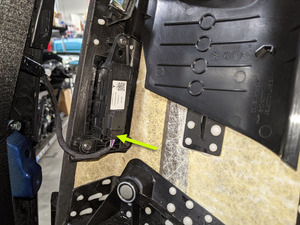

    3x clips, 2x magnets, 1x connector







12. Move LH upper B-pillar aside

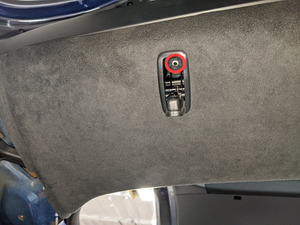

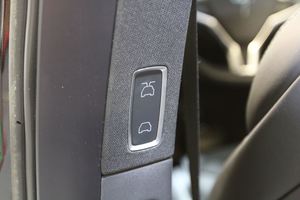

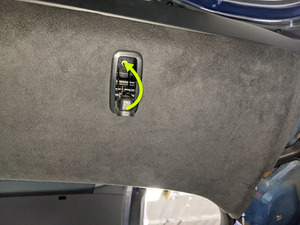

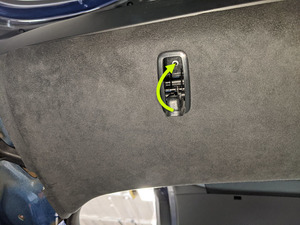

13. Open liftgate

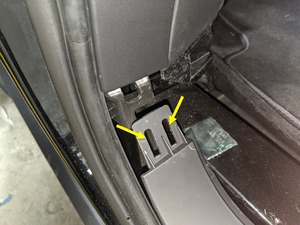

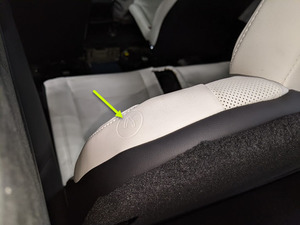

14. Fold LH 3rd row seat back into down position

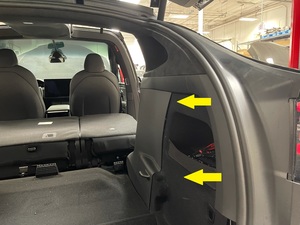

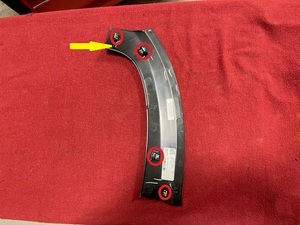

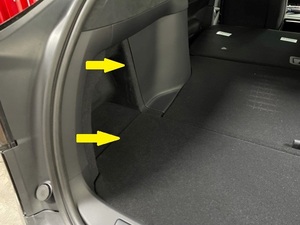

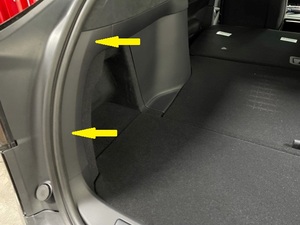

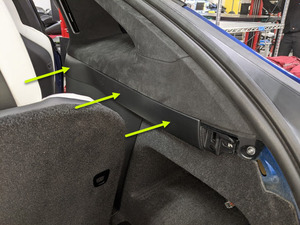

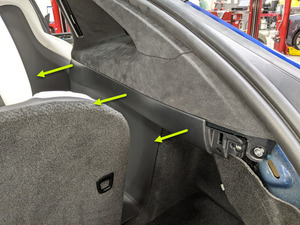

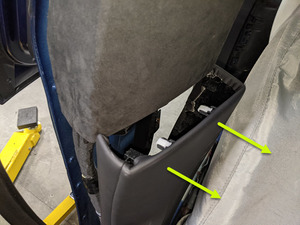

15. Remove LH trunk sill side trim
    Note

    4x clips, 1x datum

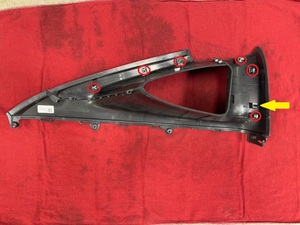

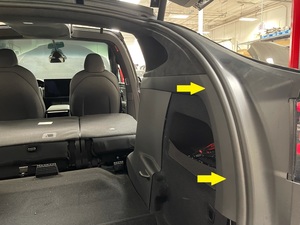

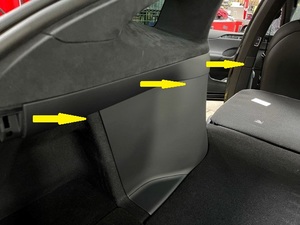

16. Remove LH mid C-pillar trim
    Note

    1x screw, T20, 2 Nm, 9x clips, 5x tabs

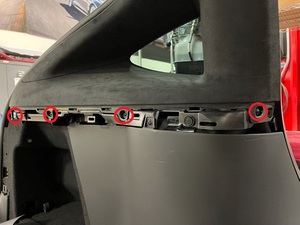

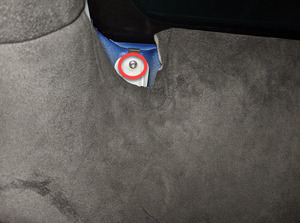

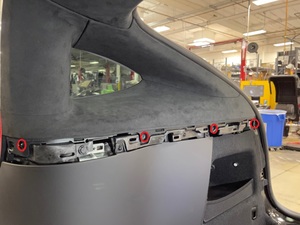

17. Remove fasteners securing LH upper C-pillar trim to bracket
    Note

    3x screws, T20, 2 Nm, 1x patch bolt, T25, 3 Nm, Discard patch bolt after removal

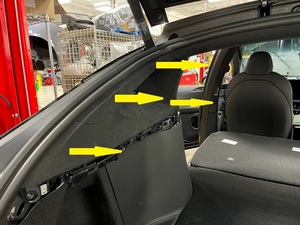

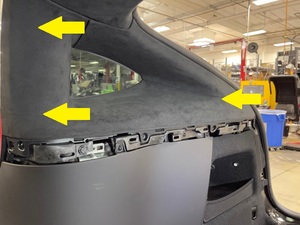

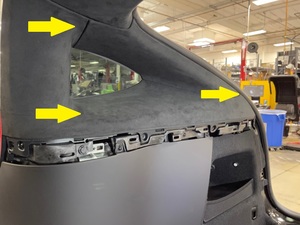

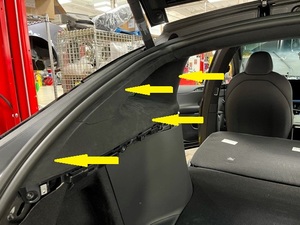

18. Remove LH upper C-pillar trim
    Note

    6x clips, 1x datum





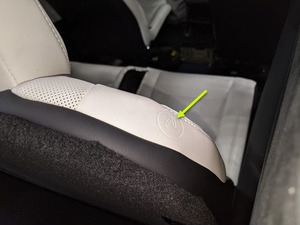

19. Fold RH 3rd row seat back into down position
20. Remove RH trunk sill side trim
    Note

    4x clips, 1x datum





21. Remove RH mid C-pillar trim
    Note

    1x screw, T20, 2 Nm, 9x clips

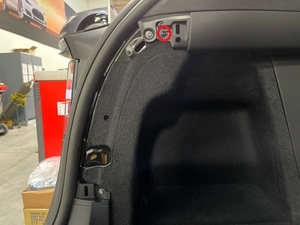

22. Remove fasteners securing RH upper C-pillar trim to bracket
    Note

    3x screws, T20, 2 Nm, 1x patch bolt, T25, 3 Nm, Discard patch bolt after removal



23. Remove RH upper C-pillar trim
    Note

    6x clips, 1x datum

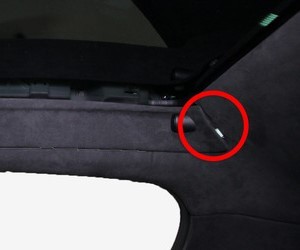

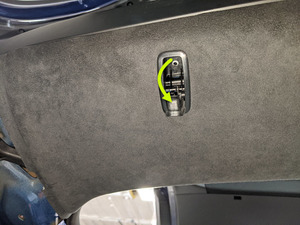

24. Open LH and RH side rear coat hooks
    Note

    Push inward and release to open

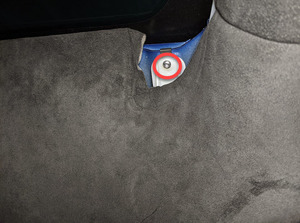

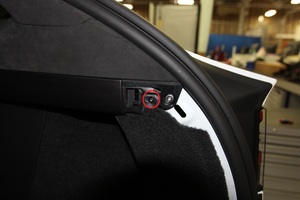

25. Remove bolts securing LH and RH rear coat hooks to body
    Note

    2x screws, T20, 2.5 Nm







26. Move RH front seat backward
27. Remove RH sunvisor bezel
    Note

    6x clips, 1x tab, Release clips, then slide bezel towards front of vehicle to release







28. Remove bolts securing RH upper A-pillar to body
    Note

    2x bolts, 10mm, 5 Nm, 1x screw, T20, 2.5 Nm, 1x nyloc nut, 13mm, 5 Nm, Discard nut after removal



29. Move RH A-pillar for access to headliner



30. Remove screw securing RH front end of headliner to body
    Note

    1x screw, T20, 2 Nm



31. Move RH front seat forward

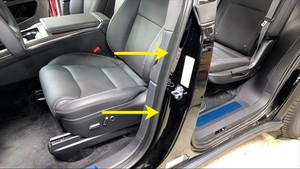

32. Move RH front door seal away from B-pillar



33. Release upper portion of RH lower B-pillar to RH upper B-pillar
    Note

    5x clips

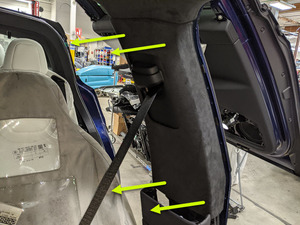

34. Release RH upper B-pillar from body
    Note

    4x clips, 1 magnet, 1x connector





35. Move RH upper B-pillar aside

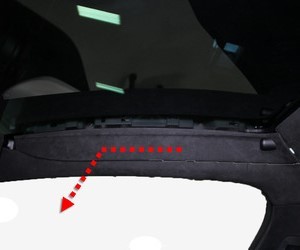

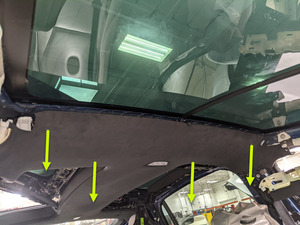

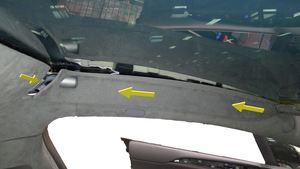

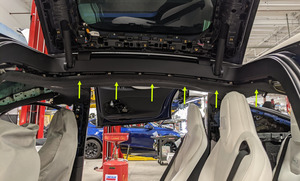

36. Release front portion of headliner from body
    Note

    11x clips

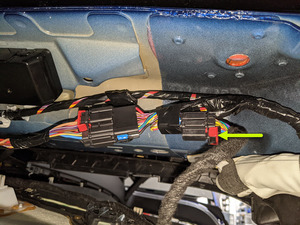

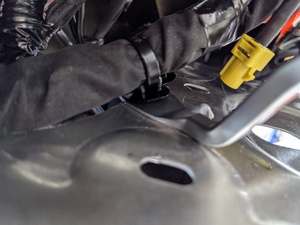

37. Disconnect headliner from body harness
    Note

    1x connector, Release red locking tab



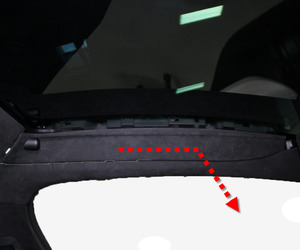

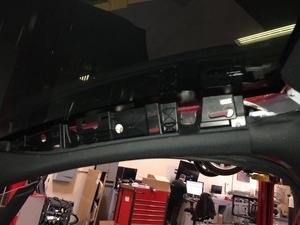

38. Release headliner from body
    Note

    25x clips

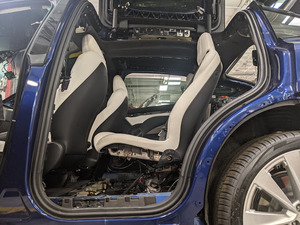

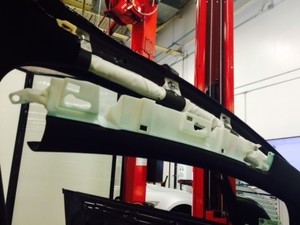

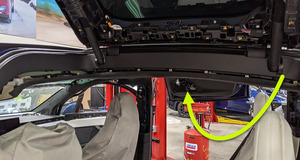

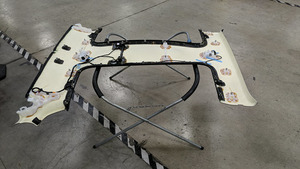

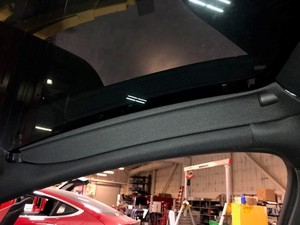

39. Remove headliner assembly from vehicle
    Note

    Recommend assistance, Maneuver headliner past head rests and remove through LH or RH falcon wing door opening

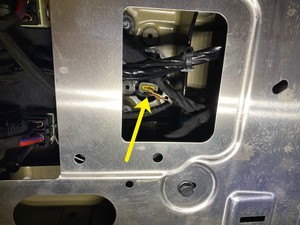

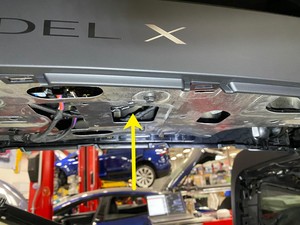

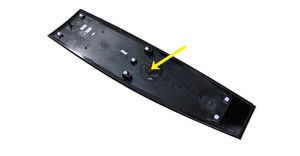

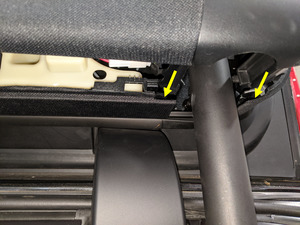

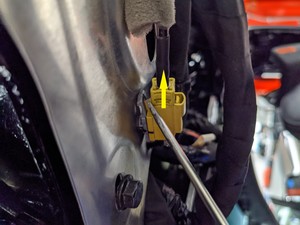

40. Disconnect ultrasonic sensor from center spine applique
    Note

    1x connector, carefully release connector to ultrasonic sensor

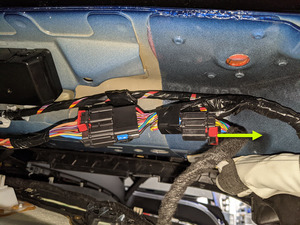

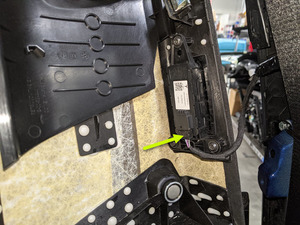

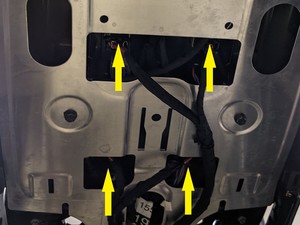

41. Remove connectors for LH and RH EM controllers
    Note

    4x connectors, push tab inward to release





42. Remove coaxial connector from center spine close out panel and separate connector
    Note

    1x connector

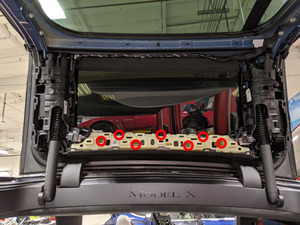

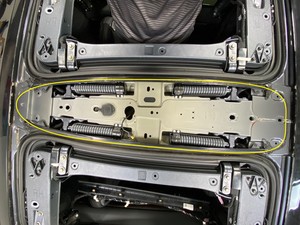

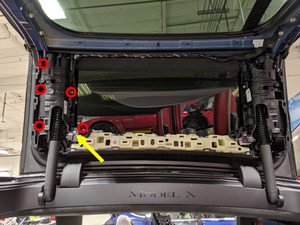

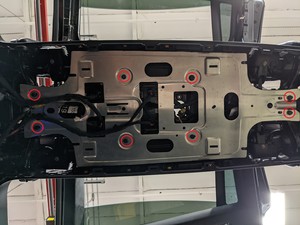

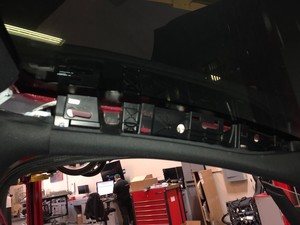

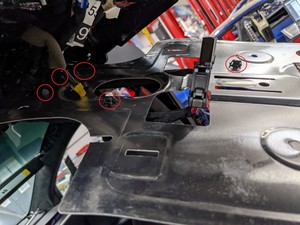

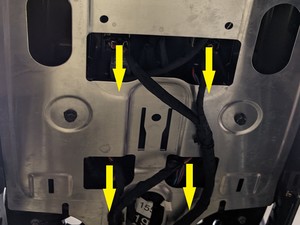

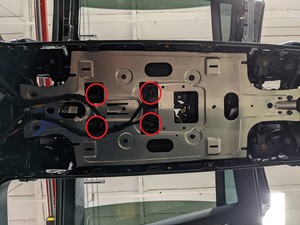

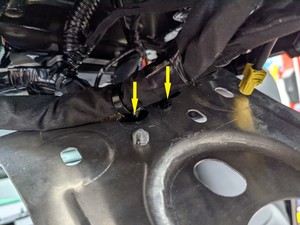

43. Remove bolts from center spine close out panel and lower closing plate slightly
    Note

    8x bolts, 10mm, 3.5 Nm, Do not allow closing plate to hang on harness

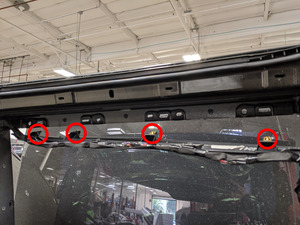

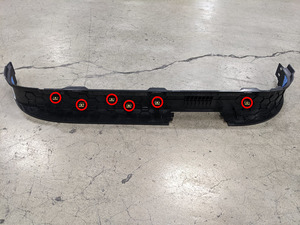

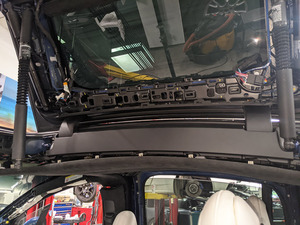

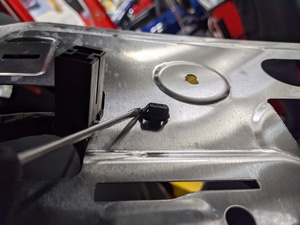

44. Release clips from center spine close out panel and remove closing panel
    Note

    5x clips







45. Remove LH falcon door lower garnish
    Note

    9x V-clips, Replace any damaged or missing V-clips, Take care not to damage door trim panel during removal

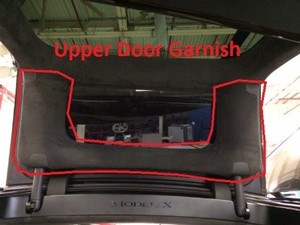

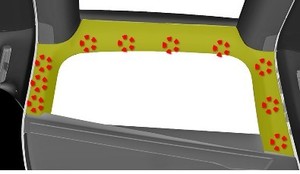

46. Remove LH upper falcon door trim
    Note

    17x clips, 1x connector may be present on early production vehicles

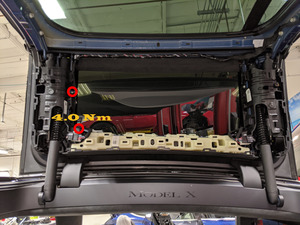

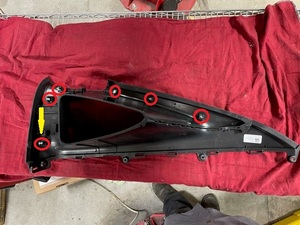

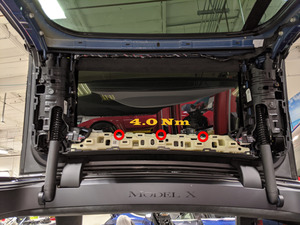

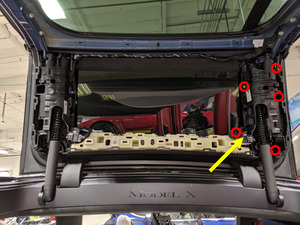

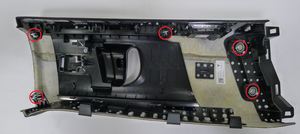

47. Remove LH falcon rear upper bracket
    Note

    5x bolts, T25, 2.5 Nm, 4.0 Nm, 1x harness clip, Fastener count may vary



48. Remove LH falcon front upper bracket
    Note

    5x bolts, T25, 2.5 Nm, 4.0 Nm, 1x harness clip

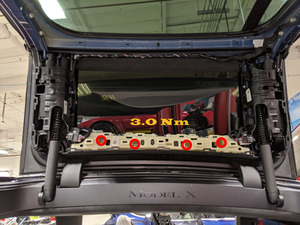

49. Remove LH upper outer falcon door middle trim
    Note

    7x bolts, T25, 3.0 Nm, 4.0 Nm, Fastener count may vary



50. Remove LH upper gap hider trim
    Note

    4x clips



51. Remove fastener securing the LH B-pillar racetrack to spine racetrack
    Note

    1x screw, T20, 2.5 Nm

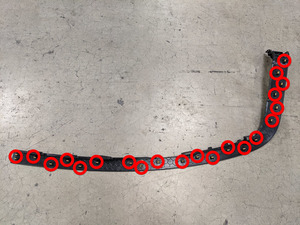

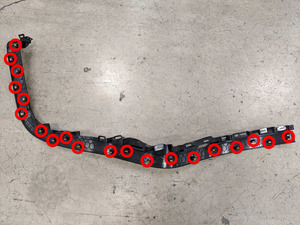

52. Remove the LH B-pillar racetrack from vehicle
    Note

    22x clips, Start from the bottom and work your way up





53. Remove fasteners securing the LH C-pillar racetrack to spine racetrack
    Note

    1x screw, T20, 2.5 Nm

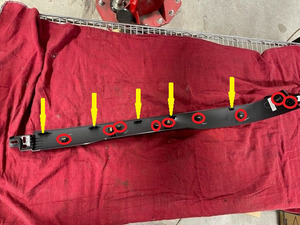

54. Remove the LH C-pillar racetrack from vehicle
    Note

    21x clips, Start from the bottom and work your way up

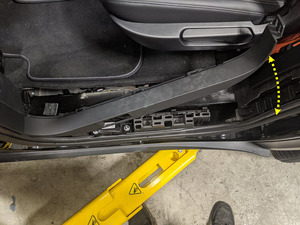

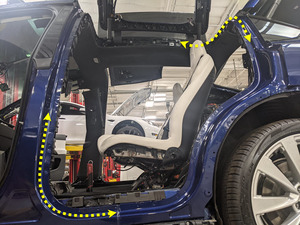

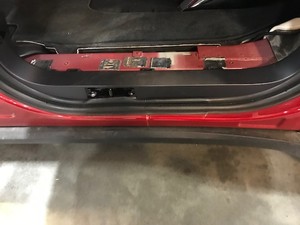

55. Remove the LH sill racetrack from vehicle
    Note

    6x clips, Release sill racetrack from the rear and rotate upward, Then release 2x clips from B-pillar racetrack and remove sill racetrack

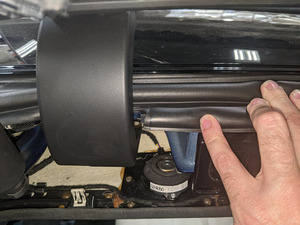

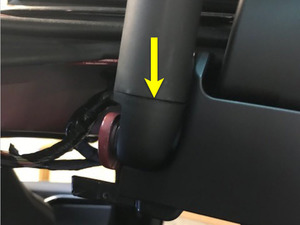

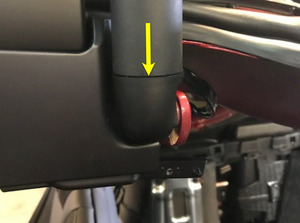

56. Remove the LH falcon door primary strut covers
    Note

    2x covers





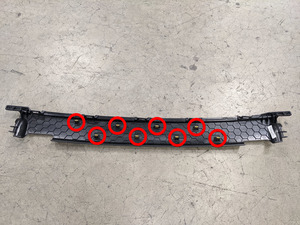

57. Remove the LH spine racetrack from vehicle
    Note

    8x clips

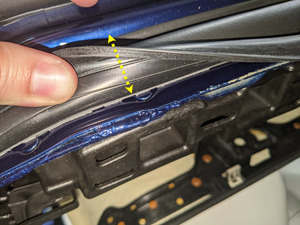

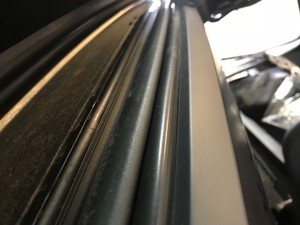

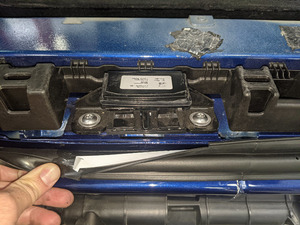

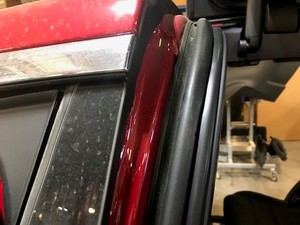

58. Remove LH rear door primary body side seal
    Note

    2x rows of double sided tape, Pull seal sideways (inward) to remove as much tape as possible from the body, Shift seal up and over falcon door to fully remove

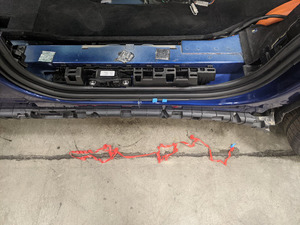

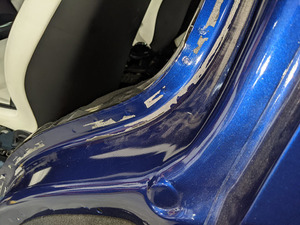

59. Remove residual adhesive from body
    Note

    Remove the majority of the residual adhesive with the eraser wheel then wipe with IPA, Removal may be more difficult when exposed to heat, Allow 1 minute dry time

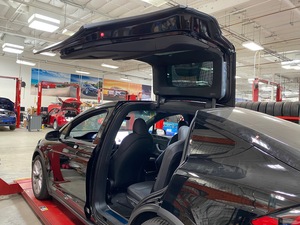

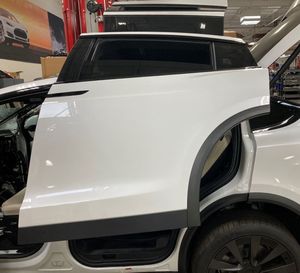

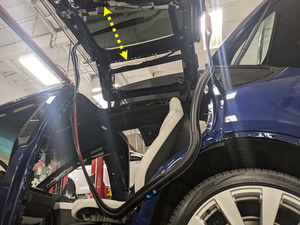

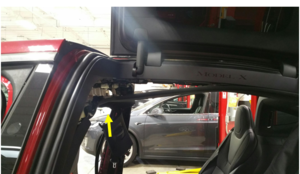

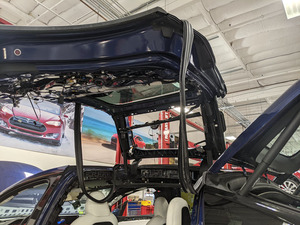

60. Lower LH falcon door
    Note

    May need to assist the door to close

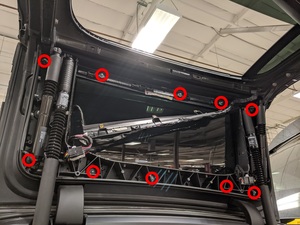

61. Remove LH falcon door upper glass
    Note

    10x nuts, 10mm, 6 Nm, Recommend assistance

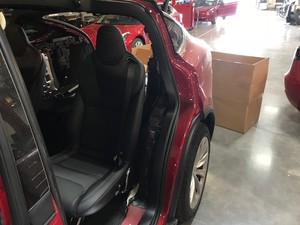

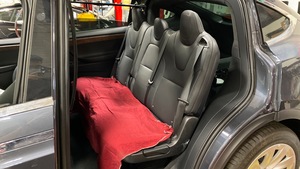

62. Place suitable protective cover on the 2nd row seats



63. Enter vehicle and close LH falcon door from the inside
    Note

    Access to roof top through upper falcon door opening

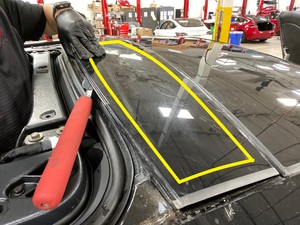

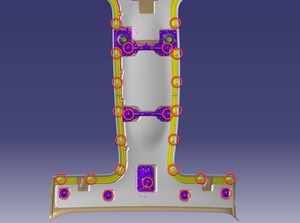

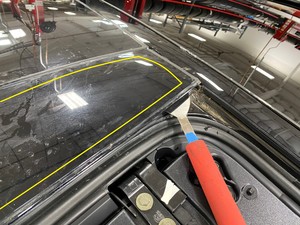

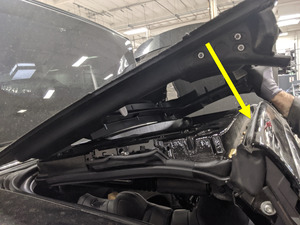

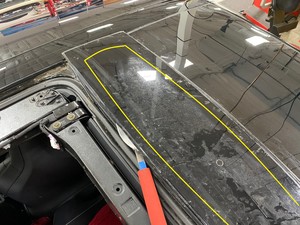

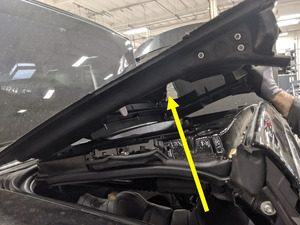

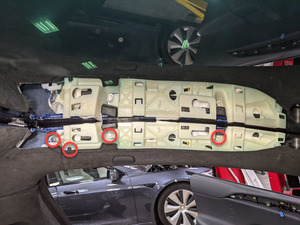

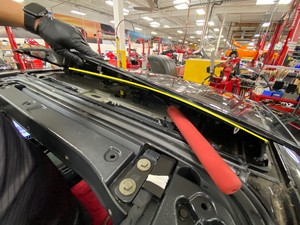

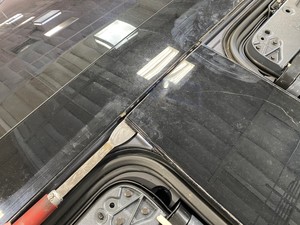

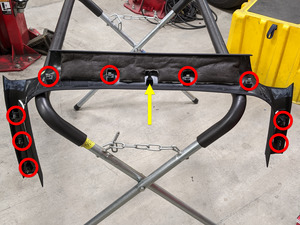

64. Release center spine applique from vehicle
    Note

    7x clips, Starting from the front use a hydro blade to cut through and work around applique assembly, Separate urethane from center spine applique, Partially lift the LH side of the applique to gain access to the RH side, Use glass cleaner to lubricate the blade, Carefully release the clips from applique and do not damage the seal on RH upper glass

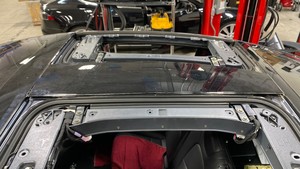

65. Remove excess urethane from roof, center spine applique carrier and prepare for installation
    Note

    Clean roof surface area with IPA wipes, Allow 1 minute for dry time



66. Open LH falcon wing door

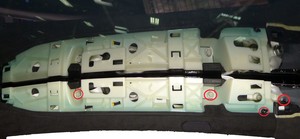

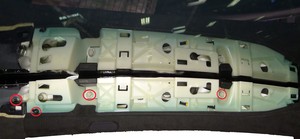

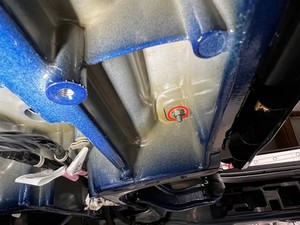

67. Remove screws securing LH center spine applique carrier onto roof-top of body
    Note

    2x screws, T20, 2 Nm



68. Remove LH center spine applique carrier onto vehicle
    Note

    2x clips, 2x screws, 8 mm, 3 Nm, Discard nuts after removal







69. Install LH center spine applique carrier onto vehicle
    Note

    2x clips, 2x screws, 8 mm, 3 Nm, Ensure clips are fully engaged onto the body, Install new nylon nuts







70. Install screws securing LH center spine applique carrier onto roof-top of body
    Note

    2x screws, T20, 2 Nm

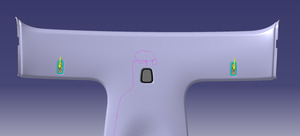

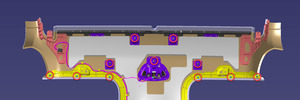

71. Apply primer onto the roof and center spine applique carrier
    Note

    Apply primer onto roof and center spine applique carrier following the urethane path

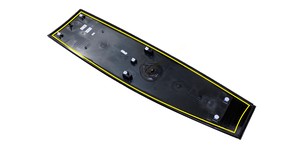

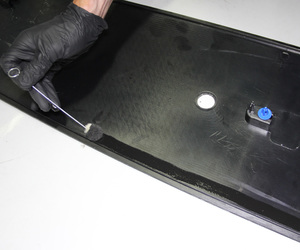

72. Apply primer onto center spine applique assembly
    Note

    Apply primer onto center spine applique following the urethane path

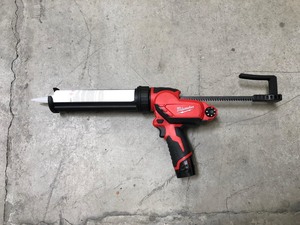

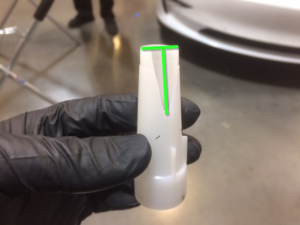

73. Prepare caulking gun and urethane
    Note

    Opening must be 8mm wide and 14mm tall





74. Apply urethane to center spine applique following the primer patch
    Note

    Fill any gaps in urethane to ensure consistent bead



75. Enter vehicle and close LH falcon door from the inside
    Note

    Access to roof top through upper falcon door opening



76. Install center spine applique
    Note

    7x clips, 1x connector, Align center spine applique onto vehicle, Connect the ultrasonic sensor, press down firmly and ensure all the clips are fully engaged, Recommend assistance











77. Open LH rear falcon door partially



78. Install LH falcon door upper glass
    Note

    10x nuts, 10mm, 6 Nm, Recommend assistance





79. Open LH falcon wing door
    Note

    Adjust position as required
80. Install LH upper gap hider trim
    Note

    4x clips

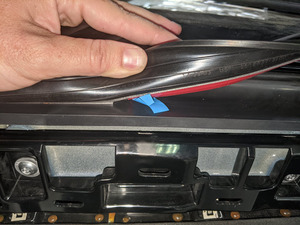

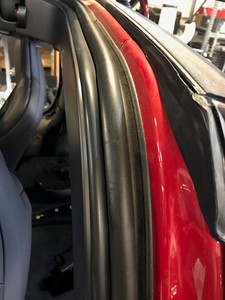

81. Position LH rear door primary body side seal for installation
    Note

    Position flange in seal between primary hinges







82. Install LH rear door primary body side seal to body
    Note

    Set the inner seal tape first as it sits flat on the body seam, The inner tape should follow the body seam about 1cm from the edge, Then seat the outer seal tape and sill tape, Wet out the adhesive applying pressure along the entirety of the seal once set in desired position









83. Install the LH spine racetrack to vehicle
    Note

    8x clips





84. Ensure the LH falcon door seal is seated behind the spine racetrack



85. Install the LH falcon door primary strut covers
    Note

    2x covers





86. Install the LH sill racetrack
    Note

    6x clips, Secure sill racetrack underneath B-pillar racetrack then rotate down and secure to sill







87. Install the LH C-pillar racetrack
    Note

    21x clips, Start from the top make sure the top of the racetrack is engaged with spine racetrack





88. Install fastener securing the LH C-pillar racetrack to the spine racetrack
    Note

    1x screw, T20, 2.5 Nm



89. Ensure falcon door seal is seated behind the LH C-pillar racetrack



90. Install the LH B-pillar racetrack
    Note

    22x clips, Start from the top make sure the top of the racetrack is engaged with spine racetrack







91. Install fastener securing the LH B-pillar racetrack to the spine racetrack
    Note

    1x screw, T20, 2.5 Nm



92. Ensure the LH falcon door seal is seated behind the B-pillar racetrack



93. Install LH upper outer falcon door middle trim
    Note

    7x bolts, T25, 3.0 Nm, 4.0 Nm, Fastener count may vary







94. Install LH falcon front upper bracket
    Note

    5x bolts, T25, 2.5 Nm, 4.0 Nm, 1x harness clip, Fastener count may vary







95. Install LH falcon rear upper bracket
    Note

    5x bolts, T25, 2.5 Nm, 4.0 Nm, 1x harness clip, Fastener count may vary

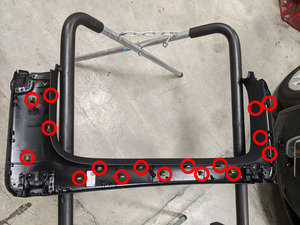

96. Install LH upper falcon door trim
    Note

    17x clips, Align strut cover first, 1x connector may be present on early production vehicles





97. Install LH falcon door lower garnish
    Note

    9x V-clips, 1x guide tab

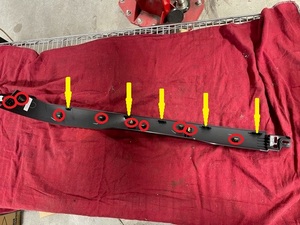

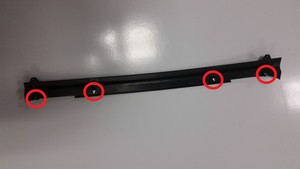

98. Attach clips to front of center spine close out panel
    Note

    2x clips



99. Reinstall closing center spine close out panel
    Note

    8x bolts, 10mm, 3.5 Nm



100. Reattach harnesses to center spine close out panel
     Note

     3x clips



101. Install connectors to EM controllers
     Note

     4x connectors

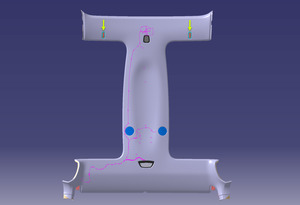

102. Position headliner assembly into vehicle for installation
     Note

     Recommend assistance, Install through LH or RH falcon wing door opening, Maneuver headliner past head rests and position



103. Engage rear portion of headliner to body
     Note

     25x clips, Leave front portion disengaged to make headliner connection





104. Connect headliner to body harness
     Note

     1x connector, Engage red locking tab



105. Engage front portion of headliner to body
     Note

     11x clips







106. Install screw securing RH front end of headliner to body
     Note

     1x screw, T20, 2 Nm



107. Install RH upper B-pillar to body
     Note

     4x clips, 1 magnet, 1x connector, Replace clips if damaged





108. Secure upper portion of RH lower B-pillar to RH upper B-pillar
     Note

     5x clips



109. Fully seat RH front door seal along RH B-pillar trims



110. Move RH front seat backward
111. Position RH upper A-pillar for installation



112. Install bolts securing RH upper A-pillar to body
     Note

     2x bolts, 10mm, 5 Nm, 1x screw, T20, 2.5 Nm, 1x nyloc nut, 13mm, 5 Nm, Install new nut



113. Install RH sunvisor bezel
     Note

     6x clips, 1x tab, Insert tab and slide bezel towards rear of vehicle, then secure clips



114. Move RH front seat to original position
115. Install screws securing LH and RH rear coat hooks to body
     Note

     2x screws, T20, 2.5 Nm







116. Close LH and RH rear coat hooks

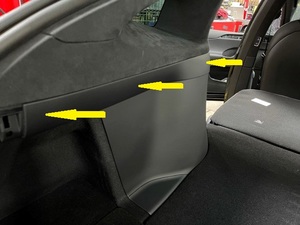

117. Install RH upper C-pillar trim
     Note

     6x clips, 1x datum





118. Install fasteners securing RH upper C-pillar trim to bracket
     Note

     3x screws, T20, 2 Nm, 1x patch bolt, T25, 3 Nm, Install new patch bolt



119. Install RH mid C-Pillar trim
     Note

     1x screw, T20, 2 Nm, 9x clips





120. Install RH trunk sill side trim
     Note

     4x clips, 1x datum





121. Raise RH 3rd row seat back into the upright position



122. Install LH upper C-pillar trim
     Note

     6x clips, 1x datum





123. Install fasteners securing LH upper C-pillar trim to bracket
     Note

     3x screws, T20, 2 Nm, 1x patch bolt, T25, 2 Nm, Install new patch bolt



124. Install LH mid C-pillar trim
     Note

     9x clips, 5x tabs, 1x screw, T20, 2 Nm







125. Install LH trunk sill side trim
     Note

     4x clips, 1x datum





126. Raise LH 3rd row seat back into the upright position



127. Close liftgate
128. Install screw securing LH front end of headliner to body
     Note

     1x screw, T20, 2 Nm

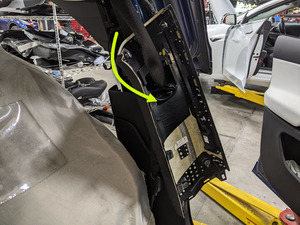

129. Install LH upper B-pillar to body
     Note

     4x clips, 1 magnet, 1x connector, Replace clips if damaged



130. Secure upper portion of LH lower B-pillar to LH upper B-pillar
     Note

     5x clips, Replace clips if damaged



131. Fully seat LH front door seal along LH B-pillar trims



132. Move LH front seat backward
133. Position LH upper A-pillar for installation



134. Install bolts securing LH upper A-pillar to body
     Note

     2x bolts, 10mm, 5 Nm, 1x screw, T20, 2.5 Nm, 1x nyloc nut, 13mm, 5 Nm, Install new nut



135. Install LH sunvisor bezel
     Note

     6x clips, 5x tabs, Insert tabs and slide bezel towards rear of vehicle, then secure clips





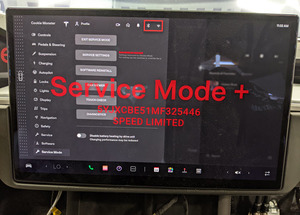

136. Verify BT, WiFi, and LTE are functioning properly



137. Move LH front seat to original position
138. Raise LH and RH front windows
139. Close all four doors
