Floor Supports - Rear - 2nd Row - LH (Remove and Replace)

Correction code 153036220.20 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email LaborTimeFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Open all the doors and lower the front windows.
  2. Move the driver seat forward.

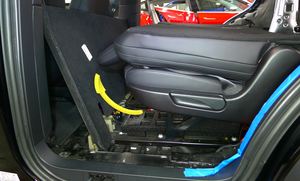

  3. Move the LH 2nd row seat fully forward.
  4. Remove the LH rear sill panel trim. See Trim - Sill Panel - Rear - LH (Remove and Replace).
  5. Repeat step 2 through step 4 for the RH side of the vehicle.
  6. Remove the rear trunk load floor. See Trunk Load Floor - Rear (Remove and Replace).
  7. Remove the front trunk load floor. See Trunk Load Floor - Front (Remove and Replace).
  8. Remove the trunk gap hider. See Gap Hider - Trunk (5 Seat) (Remove and Replace).
  9. Remove the 2nd row mid floor panel. See Floor Panel - Mid - 2nd Row (7 Seat) (Remove and Replace).

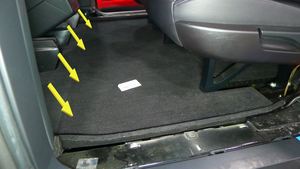

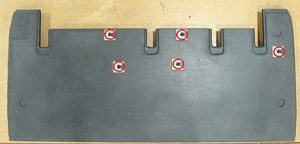

  10. Release the clips (x5) that attach the 2nd row mid floor panel to the vehicle, tilt the front edge upwards, and then remove the floor panel from the vehicle.

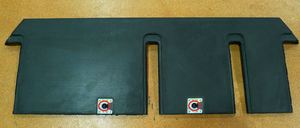

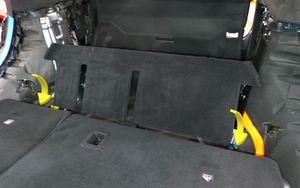

  11. Lift the front of the 2nd row rear floor panel to release the clips (x2), and then lift the rear of the floor panel and slide the panel rearward to remove it from the vehicle.

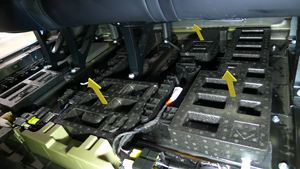

  12. Remove the LH 2nd row rear floor supports (x3) from the vehicle.

Install

  1. Install the LH 2nd row rear floor supports (x3) into the vehicle.

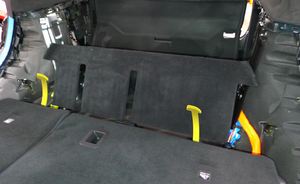

  2. Position the 2nd row rear floor panel into the vehicle, slide panel down behind seats, and then lower the front of panel to engage the clips (x2).

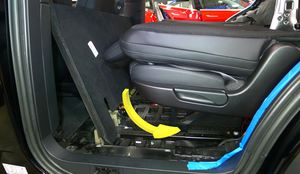

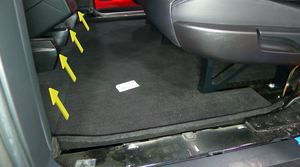

  3. Position the 2nd row mid floor panel into the vehicle, install the rear of the panel, and then secure the clips (x5) that attach the floor panel to the vehicle.
    Informational PurposesAn informational icon, calling your attention
    Note
    Replace all damaged clips.
  4. Remove the LH rear sill panel trim. See Trim - Sill Panel - Rear - LH (Remove and Replace).
  5. Move the driver seat to the original position.
  6. Repeat steps 4 and 5 for the RH side of the vehicle.
  7. Install the trunk gap hider. See Gap Hider - Trunk (5 Seat) (Remove and Replace).
  8. Install the front trunk load floor. See Trunk Load Floor - Front (Remove and Replace).
  9. Install the rear trunk load floor. See Trunk Load Floor - Rear (Remove and Replace).
  10. Close the liftgate.
  11. Raise the front windows and close all the doors.
