Hose - Drain - Cowl Screen (Remove and Replace)

Correction code 12251402 0.24 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email LaborTimeFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Open the LH front door and lower the LH front window.
  2. Remove the rear underhood apron. See Underhood Apron - Rear (Remove and Replace).
  3. Remove the LH and RH underhood aprons. See Underhood Apron - LH (Remove and Replace).
  4. Remove the front underhood apron. See Underhood Apron - Front (Remove and Replace).
  5. Remove the underhood storage unit. See Underhood Storage Unit (Remove and Install).

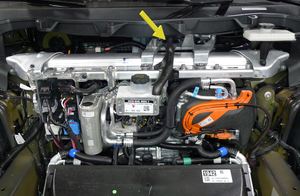

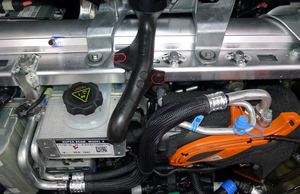

  6. Remove the clips (x2) that attach the cowl screen drain hose to the vehicle, and then remove the drain hose from the vehicle.

Install

  1. Position the cowl screen drain hose into the vehicle, and then install the clips (x2) that attach the drain hose to the vehicle.
    Informational PurposesAn informational icon, calling your attention
    Note

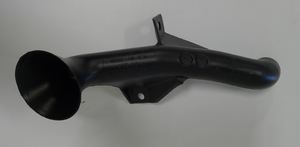

    Position cowl screen outlet into the drain hose.
  2. Install the underhood storage unit. See Underhood Storage Unit (Remove and Install).
  3. Install the front underhood apron. See Underhood Apron - Front (Remove and Replace).
  4. Install the LH and RH underhood aprons. See Underhood Apron - LH (Remove and Replace).
  5. Install the rear underhood apron. See Underhood Apron - Rear (Remove and Replace).
  6. Raise the LH front window and close the LH front door.
