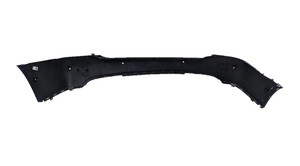

Fascia Assembly - Rear - Upper (Remove and Replace)

Correction code 10012812 0.60 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Open the LH front door and lower the front windows.
  2. Remove the rear fascia assembly from the vehicle. See Fascia Assembly - Rear (Remove and Install).
  3. Remove the rear fascia harness. See Harness - Fascia - Rear (HW3) (Remove and Replace).

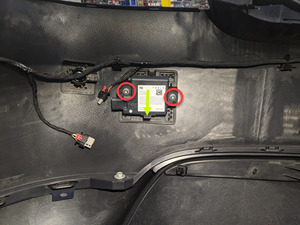

  4. Remove the screws (x2) and release tab that attach the RH rear BLE to the upper rear fascia assembly, and then remove the BLE from the fascia. Repeat this step for the LH rear BLE.
    3 Nm (2.2 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T25 socket
  5. Remove the park assist sensors (x6) from the upper rear fascia assembly.

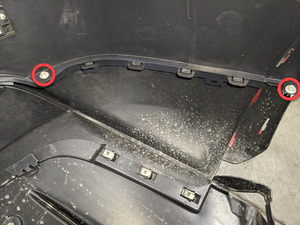

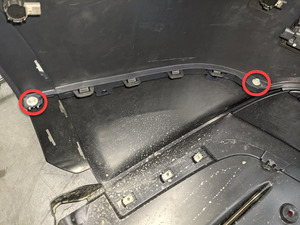

  6. Remove the screws (x4) that attach the upper rear fascia assembly to the lower rear fascia assembly.
    5 Nm (3.7 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm socket

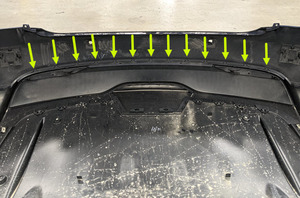

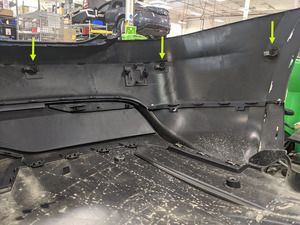

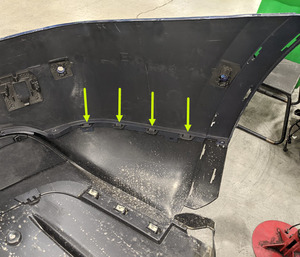

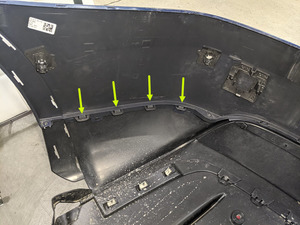

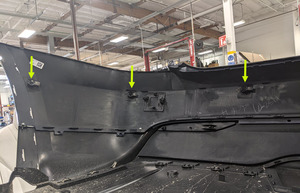

  7. Release the tabs (x21) that attach the upper rear fascia assembly to the lower rear fascia assembly, and then remove the upper assembly from the lower assembly.

Install

  1. Position the upper rear fascia assembly onto the lower rear fascia assembly, and then secure the tabs (x21) that attach the upper assembly to the lower assembly.
  2. Install the screws (x4) that attach the upper rear fascia assembly to the lower rear fascia assembly.
    5 Nm (3.7 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm socket
  3. Install the park assist sensors (x6) into the upper rear fascia assembly.
  4. Position the RH rear BLE into the upper rear fascia assembly, and then install the screws (x2) and secure the tab that attach the BLE to the fascia. Repeat this step for the LH rear BLE.
    3 Nm (2.2 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T25 socket
  5. Position the rear fascia harness onto the upper rear fascia assembly, and then secure the clips (x7) and double sided tape brackets (x4) that attach the harness to the assembly.
    Informational PurposesAn informational icon, calling your attention
    Note
    Install new double sided tape brackets.
  6. Connect the LH rear BLE electrical connector, and then engage the locking tab. Repeat this step for the RH rear BLE.
    Figure 1. LH shown; RH similar
  7. Connect the rear fascia harness to the parking assist sensors (x6), and then engage the locking tabs.
  8. With assistance, position the rear fascia assembly onto the vehicle, and then secure the tabs (x24) that attach the assembly to the vehicle.
  9. Reach through the access area on RH side of the rear fascia, connect the rear fascia harness electrical connector, and then engage the locking tab.
  10. Install the bolts (x4) that attach the rear lower valence to the body.
    3 Nm (2.2 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm socket
  11. Install the clips (x2) and bolts (x4) that attach the rear diffuser to the rear fascia assembly.
    6 Nm (4.4 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm socket
  12. Install the screw that attaches the LH side of the rear fascia assembly to the LH rear quarter panel.
    1.5 Nm (1.1 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T25 socket
  13. Secure the clips (x3) and tabs (x7) that attach the LH rear fender garnish to the rear fascia assembly.
  14. Install the clips (x2) and bolts (x2) that attach the LH rear fender garnish and arch liner to the vehicle.
    5 Nm (3.7 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm socket
  15. Repeat step 12 through step 14 for the RH side of the vehicle.
  16. Install the bolt that attaches the upper LH side of the rear fascia assembly to the bracket. Repeat this step for the RH side.
    4 Nm (2.9 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm socket
    Figure 2. LH shown; RH similar
  17. Use IPA wipes to remove adhesive residue and any lose dirt.
    Informational PurposesAn informational icon, calling your attention
    Note
    Allow 1 minute of dry time.
  18. Install the LH and RH sides of rear fascia trough.
    Informational PurposesAn informational icon, calling your attention
    Note
    Verify the trim is flush to the rear fascia and body.

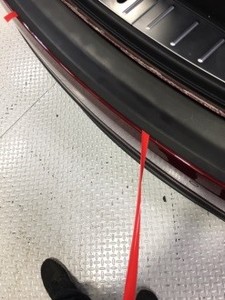

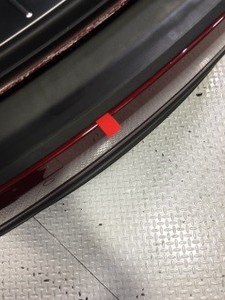

  19. Remove the adhesive backing, and then fully seat the lower trough garnish onto the rear fascia.
  20. Install the LH and RH liftgate stop. See Stop - Liftgate - LH (Remove and Replace).
  21. Connect LV power. See LV Power (Disconnect and Connect).
  22. Install the rear underhood apron. See Underhood Apron - Rear (Remove and Replace).
  23. Close the hood.
  24. Calibrate the rear doors.
    Informational PurposesAn informational icon, calling your attention
    Note
    If the "Calibration Needed" message appears on the vehicle touchscreen, touch and hold Calibrate to calibrate the rear doors
  25. Close the liftgate.
  26. Press brake pedal to turn on drive rails.
  27. Use the touchscreen to remove the air suspension from "Jack Mode".
  28. Use the touchscreen to set the air suspension ride height to “Standard”.
  29. Raise the front windows and close the LH front door.
