Radar - Interior (Remove and Replace)

Correction code 17200012 0.42 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email LaborTimeFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

  • 2023-04-13: Cleaned up.

Remove

  1. Release the front portion of the headliner from the body. See Headliner (Remove and Replace).

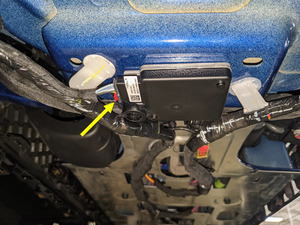

  2. Release the red tab and press the black tab to disconnect the electrical connector from the interior radar.

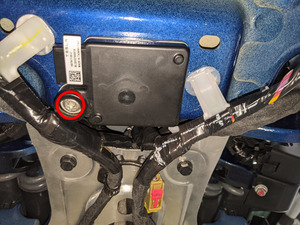

  3. Release the bolt that attaches the interior radar to the body.
    Informational PurposesAn informational icon, calling your attention
    Note
    The bolt is secured inside the interior radar and cannot be removed.

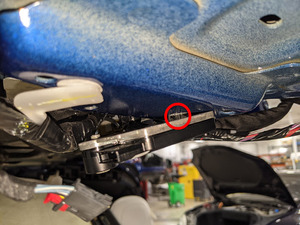

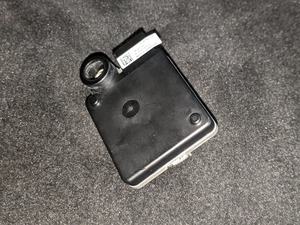

  4. Use a clip prytool to release the clip that attaches the interior radar to the body, then remove the interior radar from the vehicle.

Install

  1. Fasten the clip that attaches the interior radar to the body
  2. Install the bolt that attaches the interior radar to the body.
    9 Nm (6.6 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T30 bit
    • Ratchet 1/4in Dr Hex Bit
  3. Connect the electrical connector to the interior radar.
  4. Install the front portion of the headliner to the body. See Headliner (Remove and Replace).
