Trim - Middle - Instrument Panel - LH (Remove and Replace)

Correction code 14050052 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Open the LH front door.
  2. Lower the LH front window.

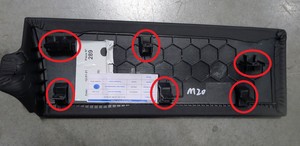

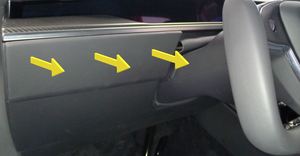

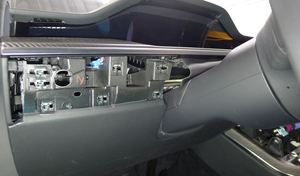

  3. Release the tabs (x6) that attach the LH instrument panel middle trim to the vehicle, and then remove the trim from the vehicle.
    Informational PurposesAn informational icon, calling your attention
    Note
    Use of the following tool(s) is recommended:
    • Plastic trim tool

Install

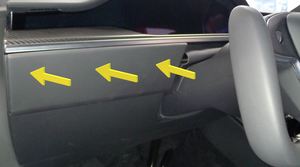

  1. Position the LH instrument panel middle trim on the vehicle, and then install the tabs (x6) that attach the trim to the vehicle.
  2. Raise the LH front window.
  3. Close the LH front door.
