Grille - Fascia - Front (Remove and Replace)

Correction code 10011502 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Remove the front fascia assembly from the vehicle. See Fascia Assembly - Front (Remove and Install).

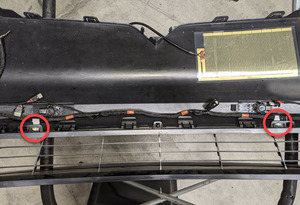

  2. Release the clips (x4) that attach the front fascia harness surrounding the front fascia grille.

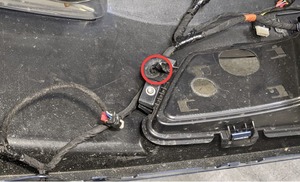

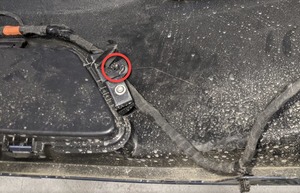

  3. Remove the bolts (x2) that attach the front fascia grille to the front fascia assembly.
    1 Nm (.7 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T25 socket

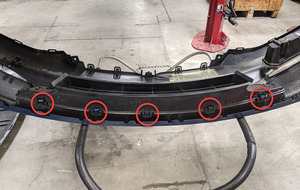

  4. Release the tabs (x11) that attach the front fascia grille to the front fascia assembly, and then remove the grille from the assembly.

Install

  1. Position the front fascia grille into the front fascia assembly, and then secure the tabs (x11) that attach the grille to the assembly.
    Informational PurposesAn informational icon, calling your attention
    Note
    Position tabs into place prior to applying pressure.
    Informational PurposesAn informational icon, calling your attention
    Note
    Verify the grille is fully seated.
  2. Install the bolts (x2) that attach the front fascia grille to the front fascia assembly.
    1 Nm (.7 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T25 socket
  3. Secure the clips (x4) that attach the front fascia harness surrounding the front fascia grille.
  4. Install the front fascia assembly onto the vehicle. See Fascia Assembly - Front (Remove and Install).
