Puddle Light - Liftgate (Remove and Replace)

Correction code 17352402 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email LaborTimeFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

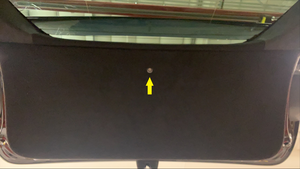

  1. Remove the lower liftgate trim. See Trim - Liftgate - Lower (Remove and Replace).

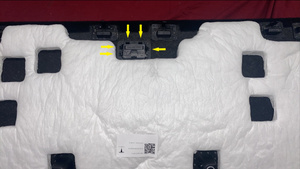

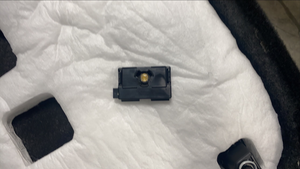

  2. Release the locking tabs (x5) that attach the liftgate puddle light to the lower liftgate trim, and then remove the light from the trim.
    Informational PurposesAn informational icon, calling your attention
    Note
    Be careful not to over stretch the locking tabs when removing the puddle light.

Install

  1. Position the liftgate puddle light into the lower liftgate trim, and then secure the locking tabs (x5) that attach the light to the trim.
    Informational PurposesAn informational icon, calling your attention
    Note
    Make sure all the locking tabs are fully secured around the puddle light.
  2. Install the lower liftgate trim. See Trim - Liftgate - Lower (Remove and Replace).
