Shield - Dust - Brake - Rear - LH (Remove and Replace)

Correction code 33011802 0.90 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
This procedure is a DRAFT. Although it has been validated, Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near High Voltage systems and components.

Remove

  1. Open the LH front door and lower the LH front window.
  2. Raise and support the vehicle on a 2 post lift. See Raise Vehicle - 2 Post Lift.
  3. Release the LH park brake caliper through Toolbox. See Park Brake Caliper - Release.
  4. Remove the LH rear wheel. See Wheel Assembly (Remove and Install).
  5. Remove the LH rear hub. See Hub - Rear - LH (Remove and Replace).

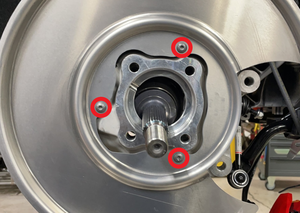

  6. Remove the bolts (x3) that attach the LH rear brake shield to the knuckle, and then remove the shield from the vehicle.
    8 Nm (5.9 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    Note
    Use of the following tool(s) is recommended:
    • Torx T30 socket

Install

  1. Install the bolts (x3) that attach the LH rear brake shield to the knuckle.
    8 Nm (5.9 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    Note
    Use of the following tool(s) is recommended:
    • Torx T30 socket
  2. Install the LH rear hub. See Hub - Rear - LH (Remove and Replace).
  3. Install the LH rear wheel. See Wheel Assembly (Remove and Install).

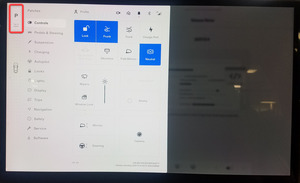

  4. Hold the brake pedal and shift into Park on the touchscreen to disable EPB service mode.
