Seal - Body - Side - Front - Primary - LH (Remove and Replace)

Correction code 11700302 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

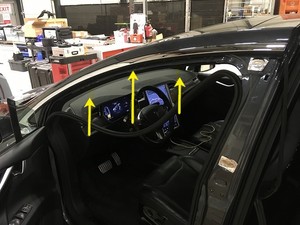

  1. Open the LH front door and lower the LH front window.

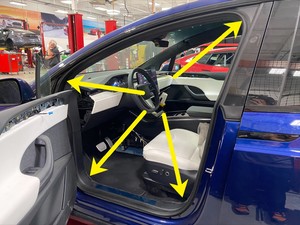

  2. Pull LH primary front side body seal away from the body, and then remove the seal from the vehicle.

Install

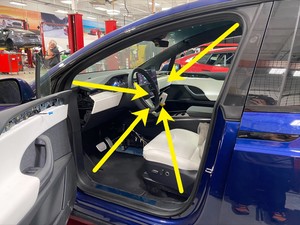

  1. Position the LH primary front side body seal into the vehicle, and then press the seal into the body.
    Informational PurposesAn informational icon, calling your attention
    Note
    Make sure the seal is properly seated onto the interior trim.
  2. Raise the LH front window and close the LH front door.
