Trim - Crush Can - Rear Trunk - LH (Remove and Replace)

Correction code 15300022 0.18 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Remove the rear trunk load floor. See Trunk Load Floor - Rear (Remove and Replace).
  2. Remove the side trunk load floor. See Trunk Load Floor - Side (Remove and Replace)
  3. Remove the trunk tub floor insulator.
  4. Remove the trunk carpet.
  5. Remove the LH and RH side rear trunk garnishes. See Garnish - Rear Trunk - Side - LH (Remove and Replace)
  6. Remove the trunk sill trim. See Trim - Sill - Trunk (Remove and Replace).

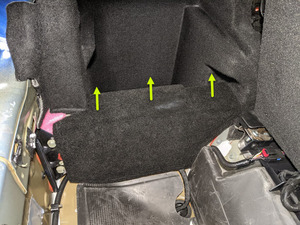

  7. Remove the clips (x6) that attach the rear wall load support to the vehicle.

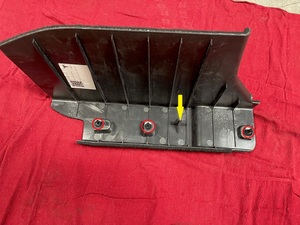

  8. Remove the clips (x3) that attach the LH crush can bracket to the vehicle.

Install

  1. Install the clips (x3) that attach the LH crush can bracket to the vehicle.
  2. Install the clips (x6) that attach the rear wall load floor support to the vehicle.
  3. Install the trunk sill trim. See Trim - Sill - Trunk (Remove and Replace).
  4. Install the LH and RH side rear trunk garnishes. See Garnish - Rear Trunk - Side - LH (Remove and Replace).
  5. Install the trunk carpet.
  6. Install the trunk tub floor insulator.
  7. Install the side trunk load floor. See Trunk Load Floor - Side (Remove and Replace)
  8. Install the rear trunk load floor. See Trunk Load Floor - Rear (Remove and Replace).
