Cladding - Door - Rear - Wheel Arch - LH (Remove and Replace)

Correction code 12204402 0.12 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Open the LH falcon wing door to a comfortable working height.

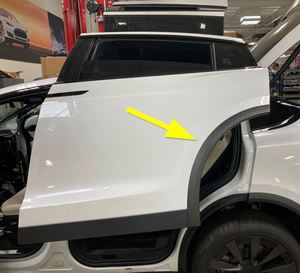

  2. Release the clips (x4) and double-sided tape that attach the LH wheel arch rear door cladding to the LH rear door, and then remove the cladding from the door.

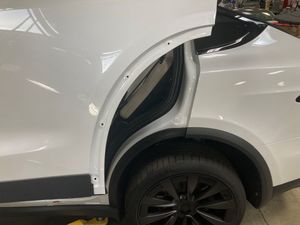

  3. Use IPA wipes to clean any remaining residue on the door.

Install

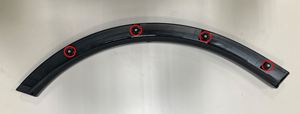

  1. Remove the adhesive backing on the LH wheel arch rear door cladding, position the cladding onto the LH rear door, and then secure the clips (x4) and adhesive that attach the cladding to the door.
    Informational PurposesAn informational icon, calling your attention
    Note
    Ensure the adhesive and all clips are fully secured onto the door.
  2. Close LH falcon wing door.
    Informational PurposesAn informational icon, calling your attention
    Note
    Check the cladding for proper alignment.
