Seal - Secondary - Front Door - LH (Remove and Replace)

Correction code 11705002 0.12 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Open the LH front door.

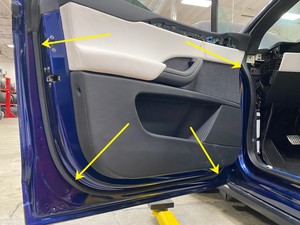

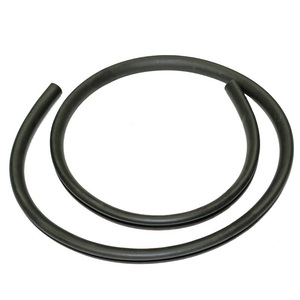

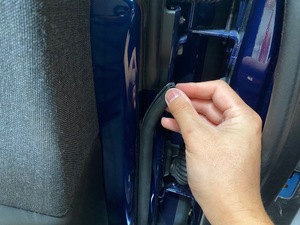

  2. Remove the LH front door secondary seal from the door assembly.

Install

  1. Use IPA wipes to clean and remove adhesive residue on the door assembly.
    Informational PurposesAn informational icon, calling your attention
    Note
    Allow 1 minute of dry time.

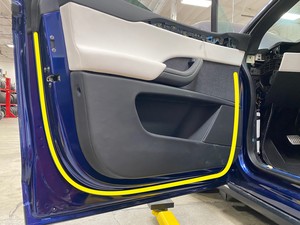

  2. Position the LH front door secondary seal onto the door assembly, remove the adhesive backing from the seal, and then install the seal onto the door assembly.
    Informational PurposesAn informational icon, calling your attention
    Note

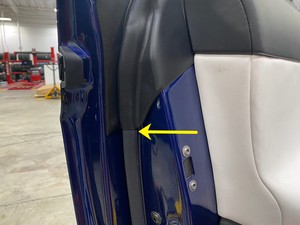

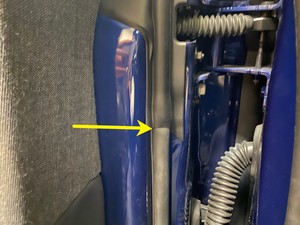

    Make sure both ends of the seal is installed underneath the front door inner belt seal.
