Cushion - Seat - 3rd Row - LH (Remove and Replace)

Correction code 13060072 0.54 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Remove the rear underhood apron. See Underhood Apron - Rear (Remove and Replace).
  2. Disconnect LV power. See LV Power (Disconnect and Connect).
  3. Remove the 3rd row seat cushion from the vehicle. See Cushion - Seat - 3rd Row (Remove and Replace).
  4. Remove the 3rd row cup holder closeout assembly from the 3rd row seat cushion. See Closeout - Cup Holder - Seat - 3rd Row (Remove and Replace).
    Informational PurposesAn informational icon, calling your attention
    Note
    It is not necessary to remove the USB hub from the closeout.

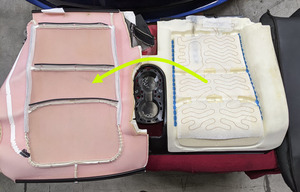

  5. Follow the steps to only remove the LH side of the 3rd row cushion cover, and then fold the LH side of the cover over the RH 3rd row seat cushion. See Cover - Cushion - 3rd Row (Remove and Replace).

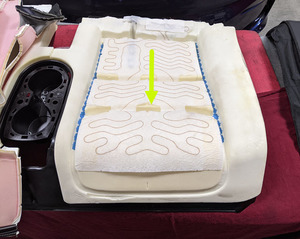

  6. Remove 3rd row LH cushion foam from 3rd row cushion substrate

Install

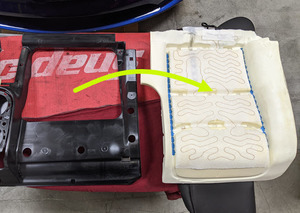

  1. Install the LH 3rd row seat cushion into the 3rd row cushion assembly.
  2. Install the LH side of the 3rd row cushion cover. See Cover - Cushion - 3rd Row (Remove and Replace).
  3. Install the 3rd row cup holder closeout assembly into the 3rd row seat cushion. See Closeout - Cup Holder - Seat - 3rd Row (Remove and Replace).
  4. Install the 3rd row seat cushion from the vehicle. See Cushion - Seat - 3rd Row (Remove and Replace).
  5. Connect LV power. See LV Power (Disconnect and Connect).
  6. Install the rear underhood apron. See Underhood Apron - Rear (Remove and Replace).
  7. Calibrate the rear doors.
    Informational PurposesAn informational icon, calling your attention
    Note
    If the "Calibration Needed" message appears on the vehicle touchscreen, touch and hold Calibrate to calibrate the rear doors.
