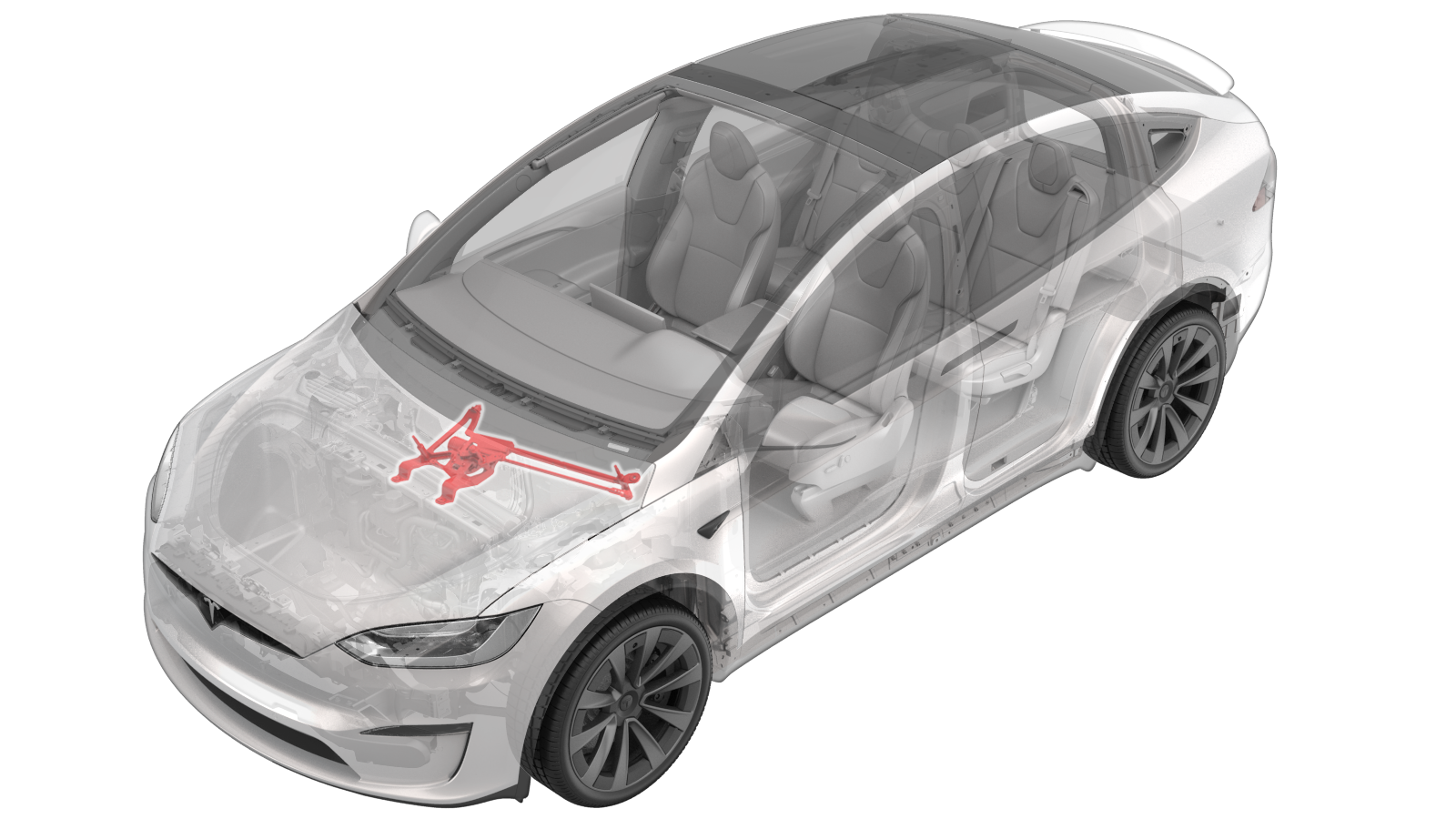

Wiper Module (Remove and Replace)

Correction code 17502502 0.25 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Torque Specifications

Table 1. Torque Specifications: Wiper Module (Remove and Replace)
Description Torque Value Recommended Tools Reuse/Replace Notes
Bolts that attach the wiper module assembly to the vehicle
9 Nm (6.6 lbs-ft)
  • 10 mm socket
  • Ratchet/torque wrench
 Reuse

Remove

  1. Disconnect LV power. See LV Power (Disconnect and Connect).
  2. Remove the cowl screen. See Panel - Cowl Screen (Remove and Replace).

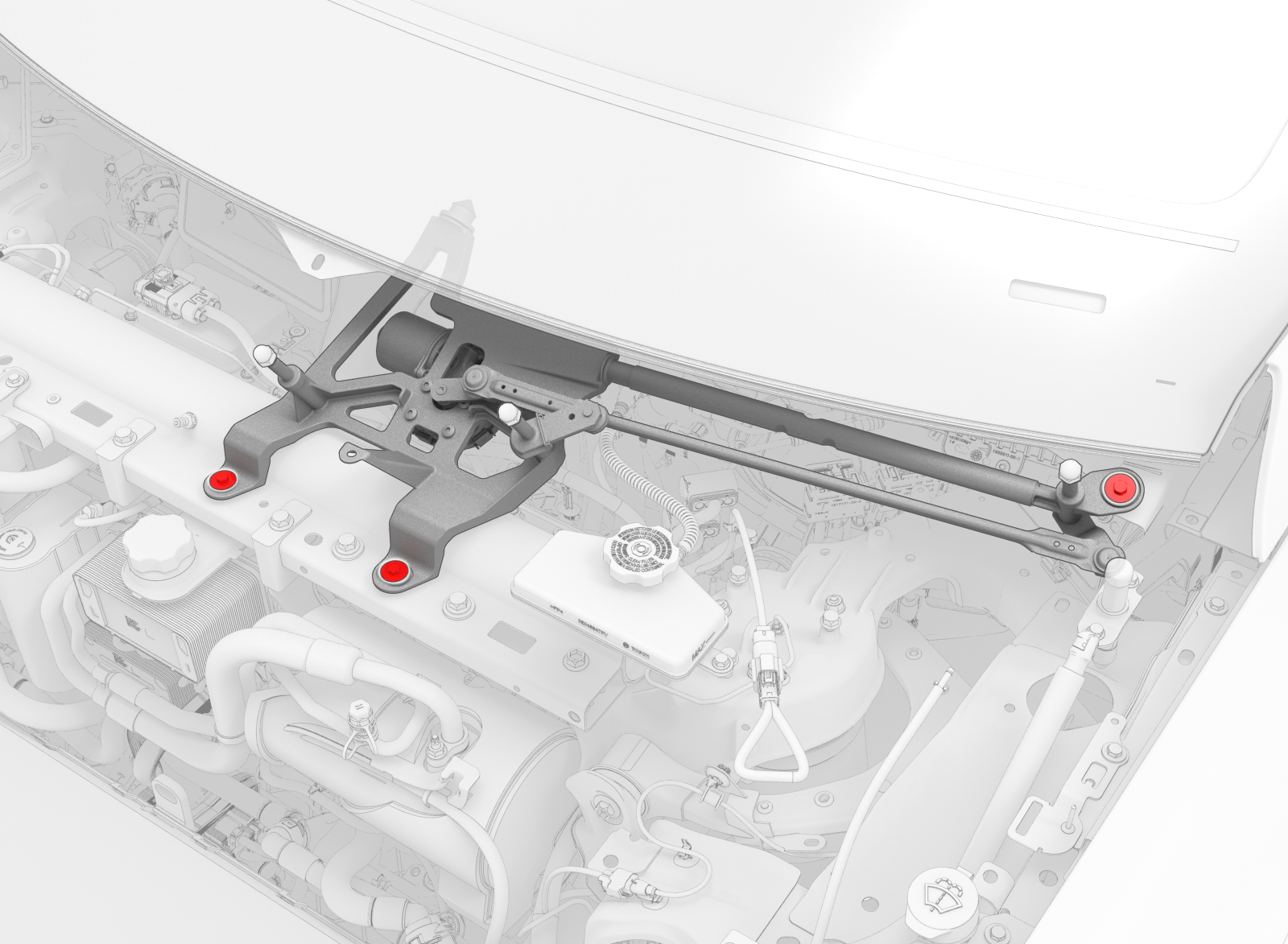

  3. Remove the bolts that attach the wiper module to the vehicle.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm socket
    • Ratchet/torque wrench

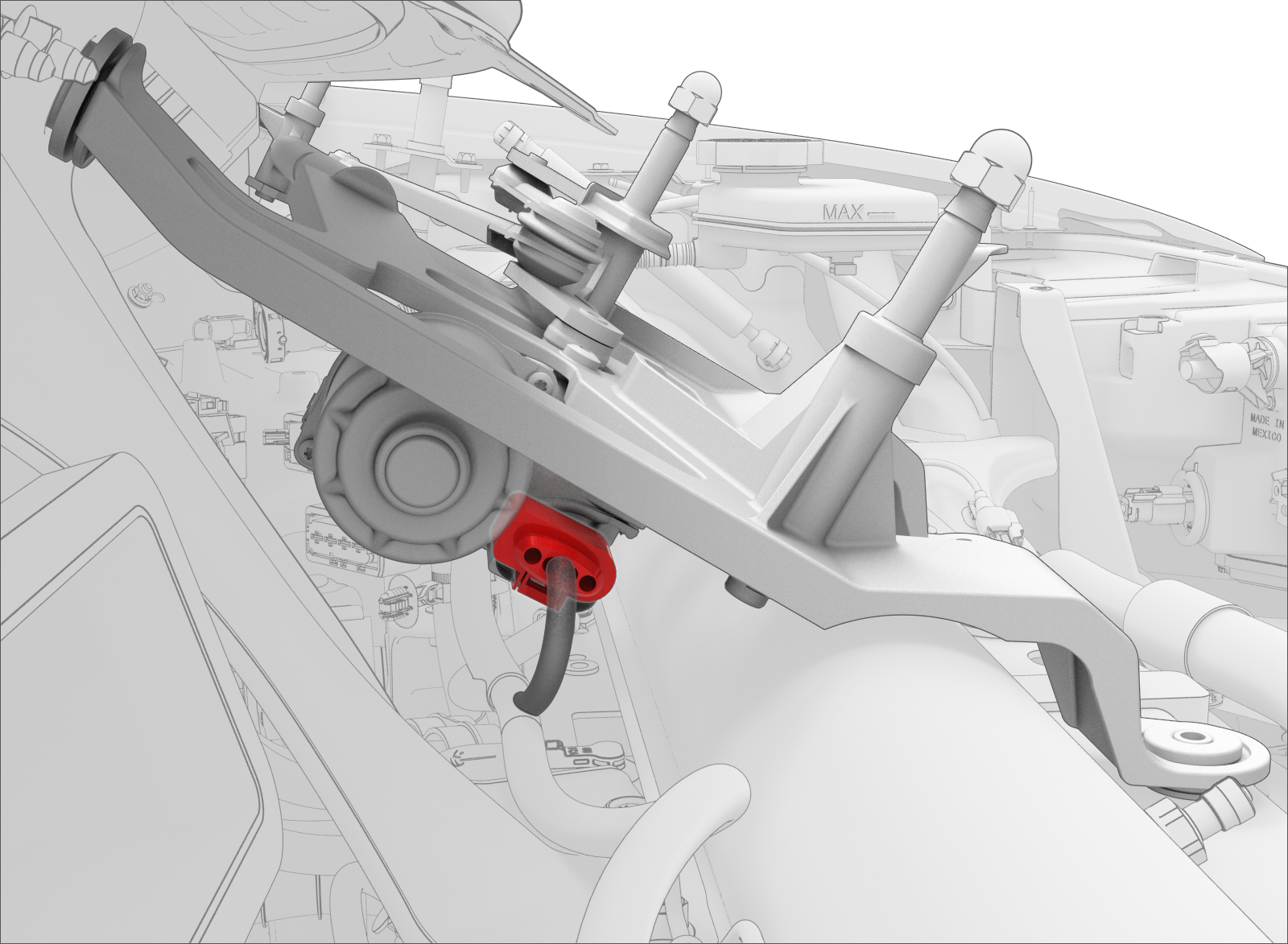

  4. Disconnect the electrical connector from the wiper module, and remove the wiper module from the vehicle.

Install

  1. Connect the electrical connector to the wiper module.
  2. Position the wiper module to the vehicle, and then install the bolts that attach the wiper module to the vehicle.
    9 Nm (6.6 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm socket
    • Ratchet/torque wrench
  3. Install the cowl screen. See Panel - Cowl Screen (Remove and Replace).
  4. Connect LV power. See LV Power (Disconnect and Connect).
  5. Calibrate the rear doors.
    Informational PurposesAn informational icon, calling your attention
    Note
    If the "Calibration Needed" message appears on the vehicle touchscreen, touch and hold Calibrate to calibrate the rear doors.
