Liftgate Drain - LH (Remove and Replace)

Correction code 10107202 0.12 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

  • 2023-04-12: Fixed the broken link.

Remove

  1. Remove the lower liftgate trim. See Trim - Liftgate - Lower (Remove and Replace).

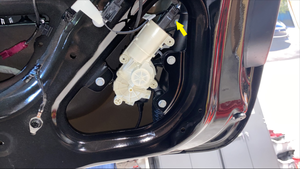

  2. Disconnect the rear liftgate cinch actuator electrical connector.

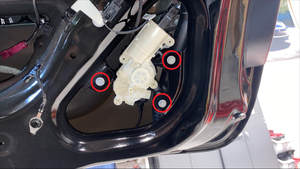

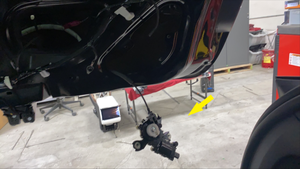

  3. Remove the bolts (x3) that attach the cinch actuator, and then set the cinch actuator aside.
    Informational PurposesAn informational icon, calling your attention
    Note
    10 mm. Torque 3 Nm.

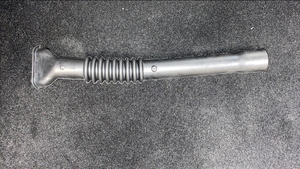

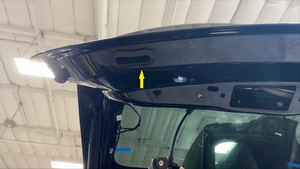

  4. Push the liftgate drain through the hole back into the liftgate.

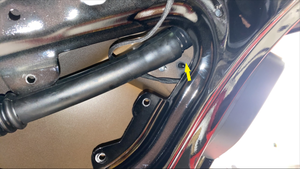

  5. Disconnect the liftgate drain tube from the catch basin, and then remove the drain from the vehicle.

Install

  1. Connect the liftgate drain tube to the catch basin.
    Informational PurposesAn informational icon, calling your attention
    Note
    Make sure the end of the drain tube that connects to the catch basin is fully connected.
  2. Install the liftgate drain push end of the drain tube through bottom of liftgate hole.
  3. Connect the cinch actuator electrical connector, and then install the bolts (x3) that attach the cinch actuator.
    Informational PurposesAn informational icon, calling your attention
    Note
    10 mm. Torque 3 Nm.
  4. Install the lower liftgate trim. See Trim - Liftgate - Lower (Remove and Replace).
