Button - Recliner Adjust - Driver Seat (Remove and Replace)

Correction code 13017102 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Open the LH front door.
  2. Move the driver seat forward.

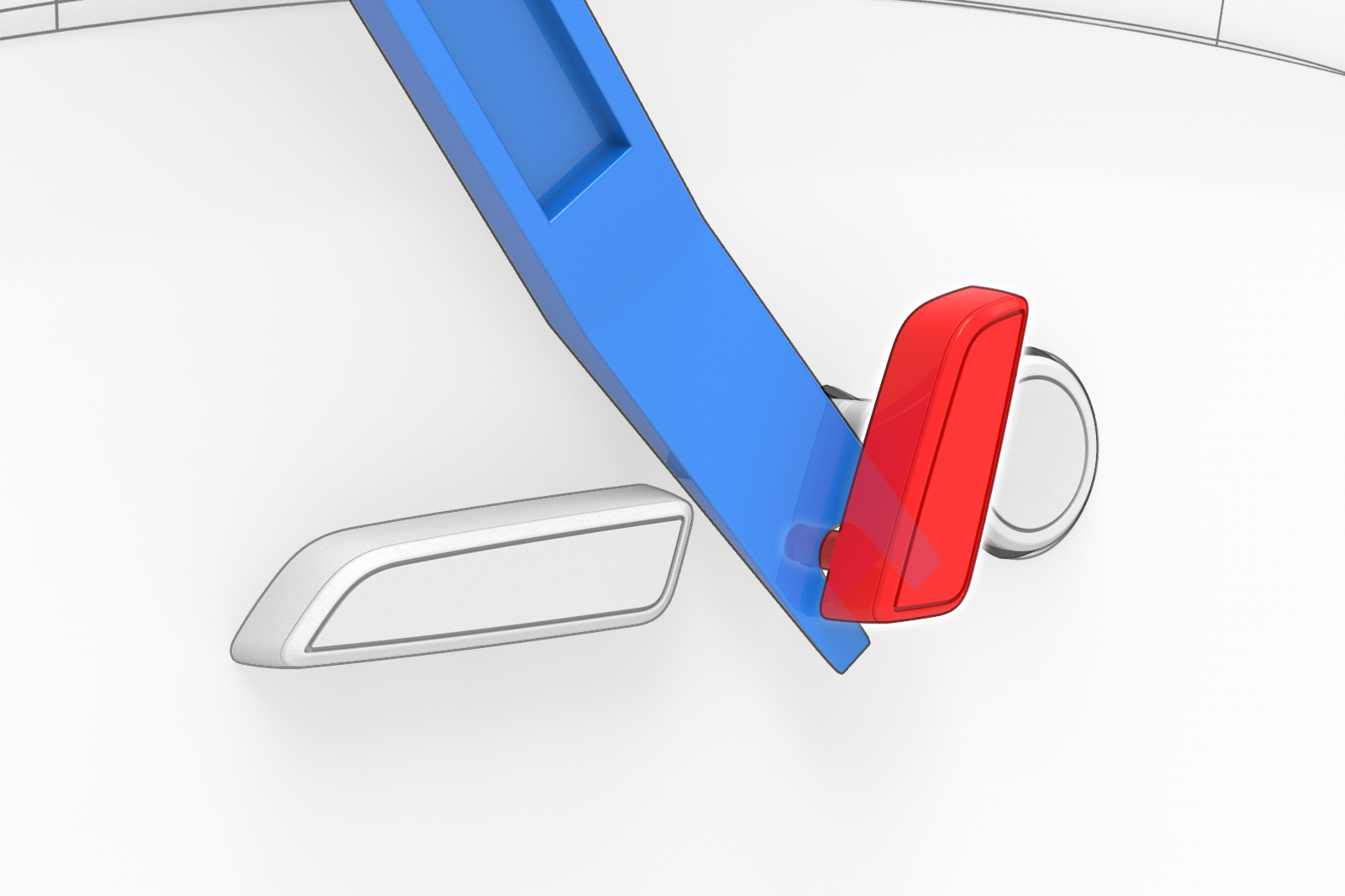

  3. Using a trim tool, carefully remove the LH front seat recliner switch.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use a twisting motion with the trim tool to release the switch.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Make sure the seat trim and the switch are not damaged during removal.

Install

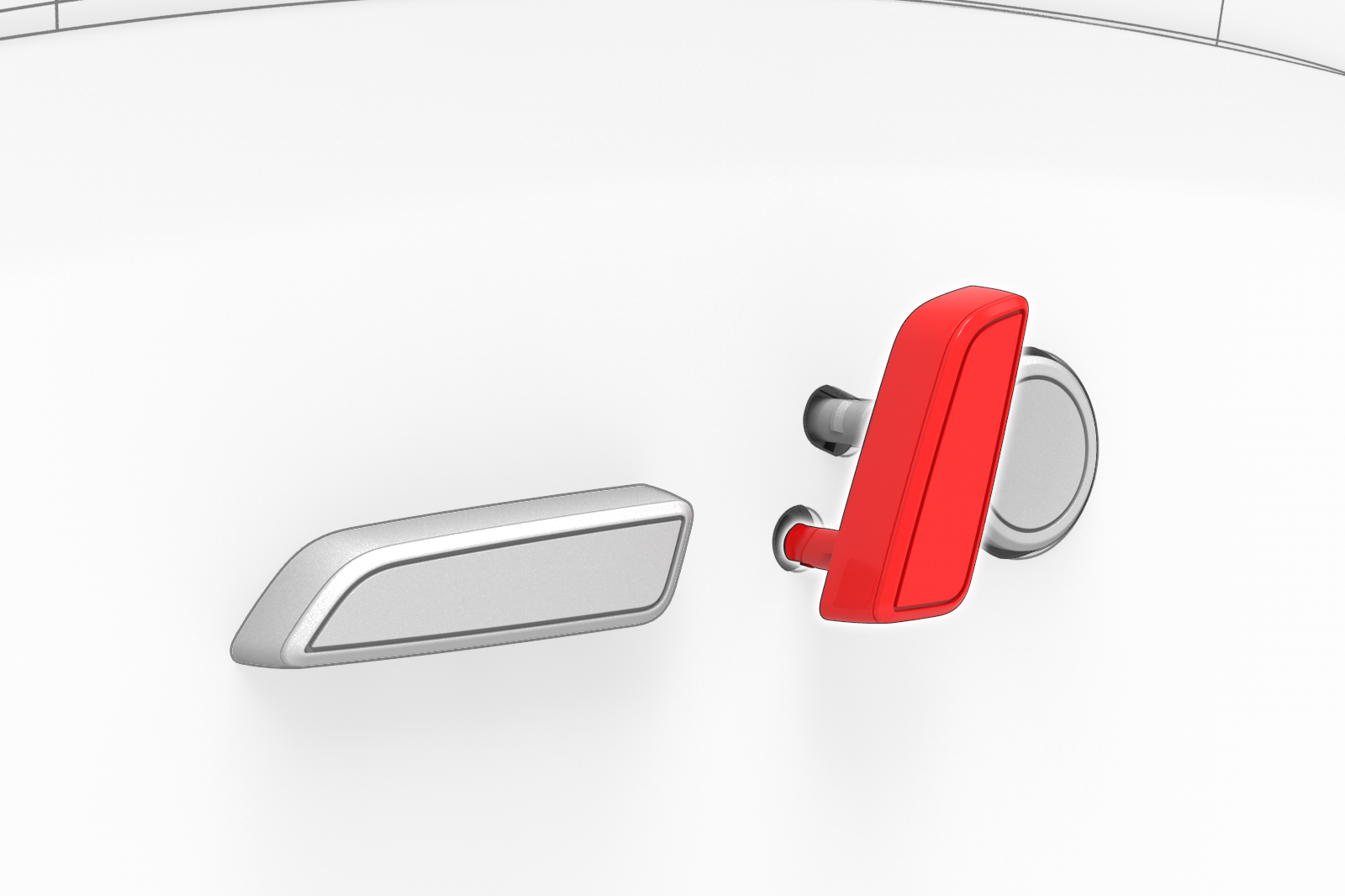

  1. Position the LH front seat recliner switch to the seat, and then install the switch to the seat.
    Informational PurposesAn informational icon, calling your attention
    Note
    Verify the switch operates correctly after installation.
  2. Move the driver seat to the original position.
  3. Close the LH front door.
