Gateway Configuration (Display and Change)

Display and Change Gateway Configuration

  1. Connect a laptop with Toolbox 3 to the vehicle. See Toolbox 3 (Connect and Disconnect).

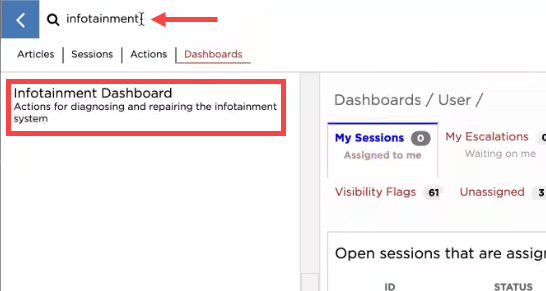

  2. In Toolbox, click the Dashboards tab, type "Infotainment" into the search field, and then click on Infotainment Dashboard.

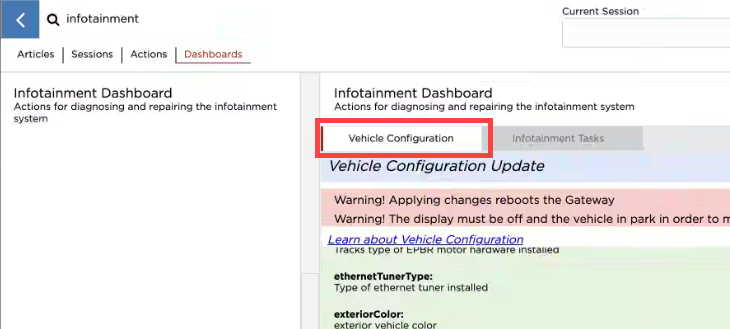

  3. Under Infotainment Dashboard, click the Vehicle Configuration tab.
    Informational PurposesAn informational icon, calling your attention
    Note

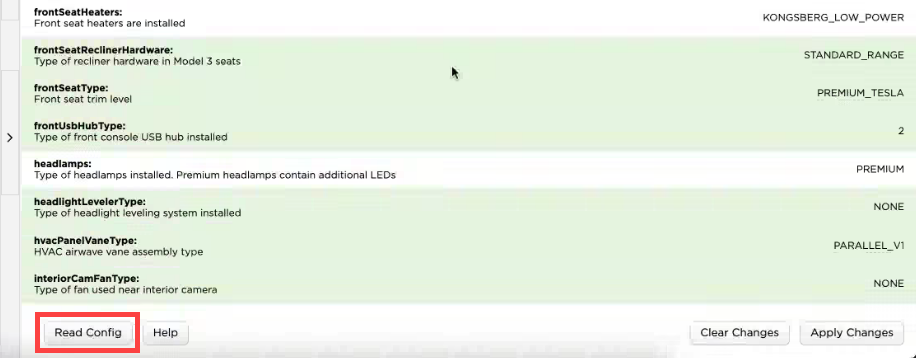

    If no configuration parameter values are displayed, click Read Config.

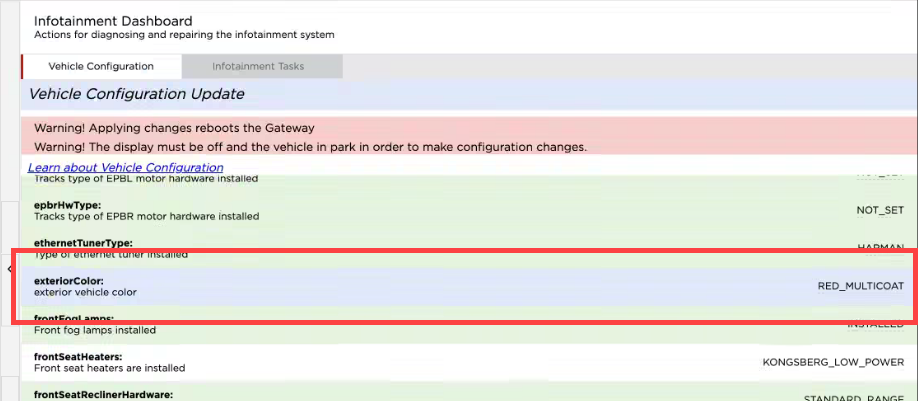

  4. Scroll down the list to find the parameter and its current value.
    Informational PurposesAn informational icon, calling your attention
    Note
    Parameters with a green background can be changed.

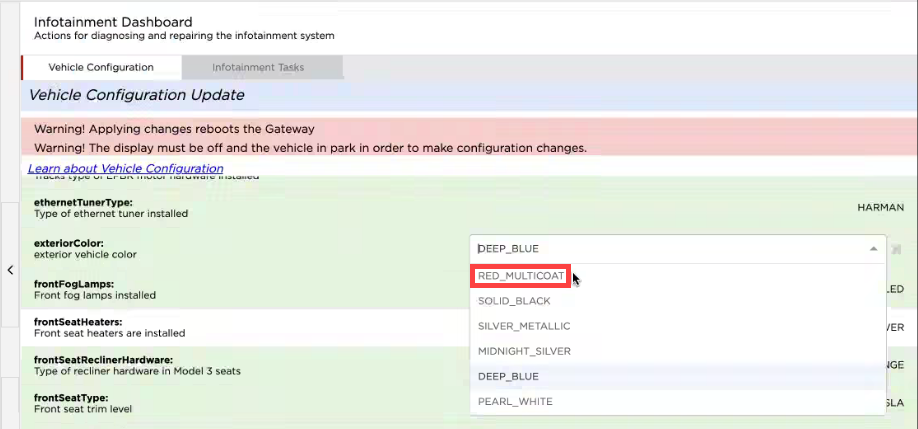

  5. Click on the current value, and from the drop-down menu that appears, select the new value.
    Informational PurposesAn informational icon, calling your attention
    Note

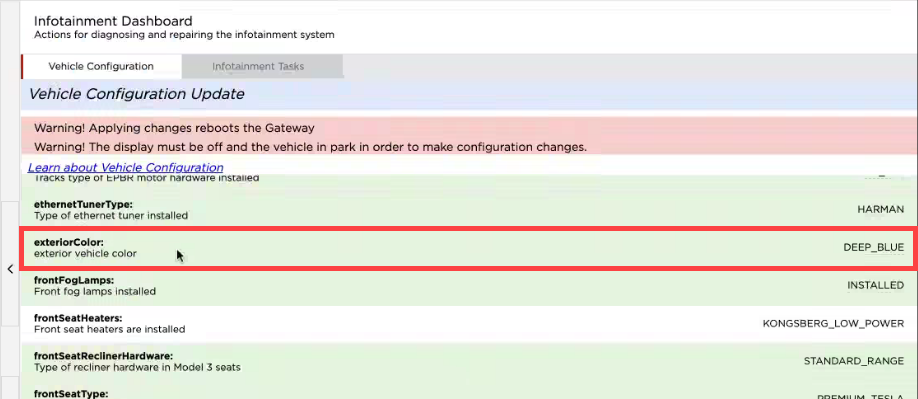

    Once the new value is selected, the parameter background becomes blue.

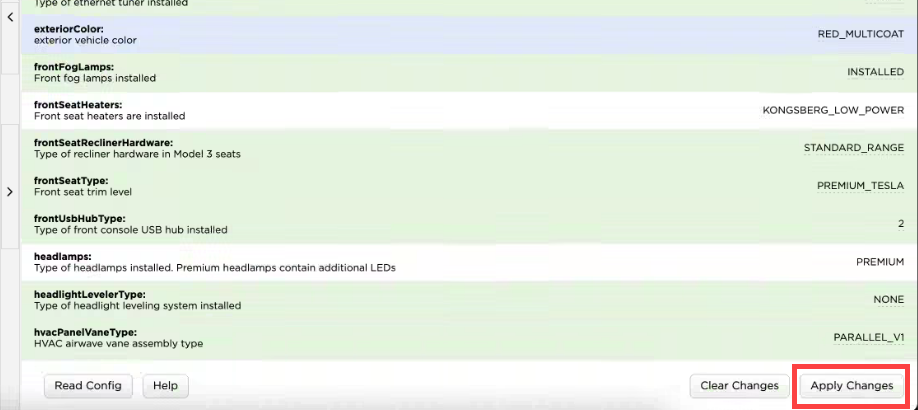

  6. Click Apply Changes.

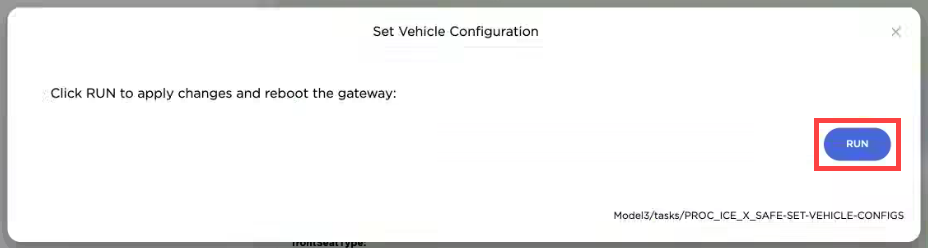

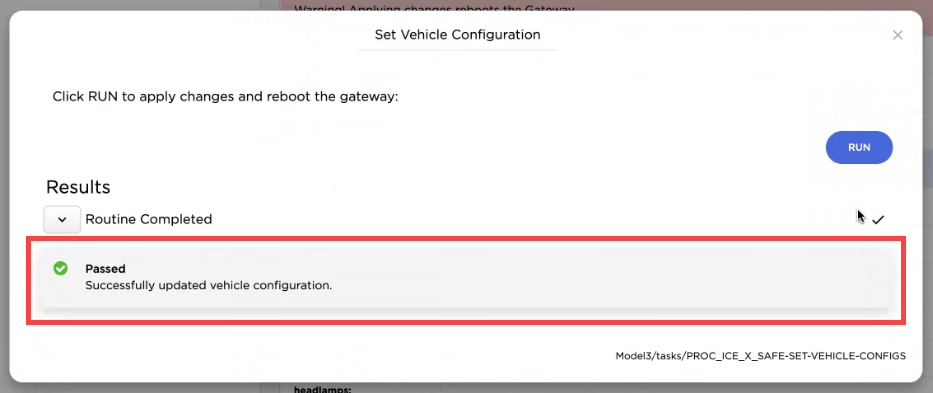

  7. In the new window that opens, click Run to apply the changes and reboot the gateway.
  8. The progress is shown, and after reboot, the window indicates a successful update to the vehicle configuration.
  9. If another service procedure requested verification or modification of a gateway configuration parameter, return to that procedure now. Otherwise, continue to the next step.
  10. Disconnect the laptop with Toolbox 3 from the vehicle. See Toolbox 3 (Connect and Disconnect).
