Cover - Shock Tower - LH (Remove and Replace)

Correction code 12251012 0.24 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Open the LH front door and lower the LH front window.
  2. Remove the rear underhood apron. See Underhood Apron - Rear (Remove and Replace).
  3. Remove the LH and RH underhood aprons. See Underhood Apron - LH (Remove and Replace).
  4. Remove the front underhood apron. See Underhood Apron - Front (Remove and Replace).
  5. Remove the underhood storage unit. See Underhood Storage Unit (Remove and Install).

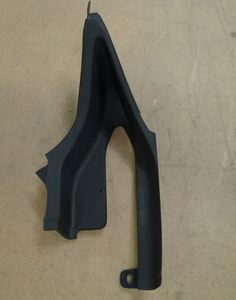

  6. Remove the clip that attaches the LH outer hood hinge cover, and then remove the cover from the vehicle. Repeat this step for the RH outer hood hinge cover.

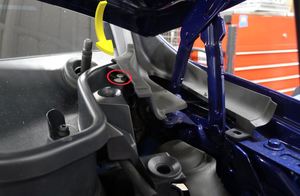

    Figure 1. LH shown; RH similar

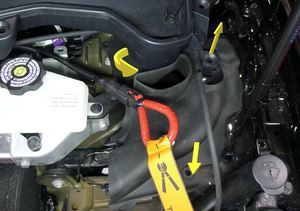

    Figure 2. LH shown; RH similar

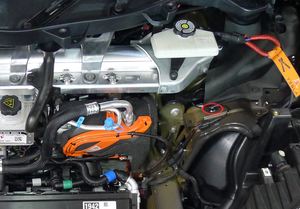

  7. Release the clip that attaches the LH speed sensor harness to the vehicle.

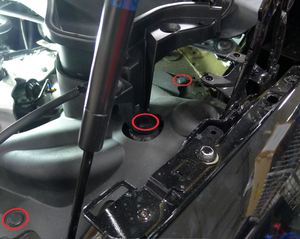

  8. Remove the clips (x3) that attach the LH shock tower cover to the vehicle, and then release the cover and LH cowl screen anchor.

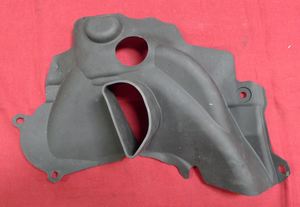

  9. Lift the LH side of the cowl screen, and then fold the LH shock tower cover around the cowl screen to remove it from the vehicle

Install

  1. Lift the LH side of the cowl screen, and the fold the shock tower cover around the cowl screen to position it into the vehicle.
  2. Install the clips (x3) that attach the LH shock tower cover to the vehicle.
  3. Install the clip that attaches the LH speed sensor harness to the vehicle.
  4. Position the LH outer hood hinge cover into the vehicle, and then install the clip that attaches the cover to the vehicle. Repeat this step for the RH outer hood hinge cover.

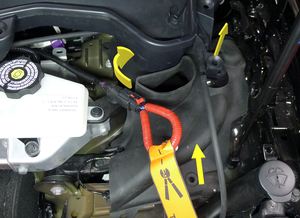

    Figure 3. LH shown; RH similar

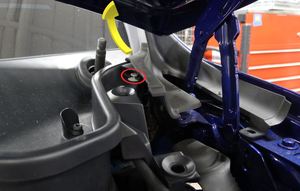

    Figure 4. LH shown; RH similar
  5. Install the underhood storage unit. See Underhood Storage Unit (Remove and Install).
  6. Install the front underhood apron. See Underhood Apron - Front (Remove and Replace).
  7. Install the LH and RH underhood aprons. See Underhood Apron - LH (Remove and Replace).
  8. Install the rear underhood apron. See Underhood Apron - Rear (Remove and Replace).
  9. Raise the LH front window and close the LH front door.
