Floor Panel - Mid - 2nd Row (7 Seat) (Remove and Replace)

Correction code 15303072 0.12 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Open all 4 doors.
  2. Lower LH front window.
  3. Move the driver and front passenger seats fully forward.
  4. Remove the LH and RH rear sill panel trims. See Trim - Sill Panel - Rear - LH (Remove and Replace).
  5. Move the LH and RH 2nd row seats fully backwards.

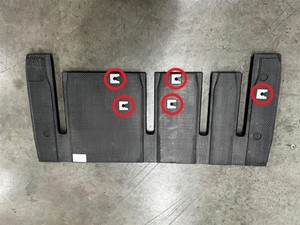

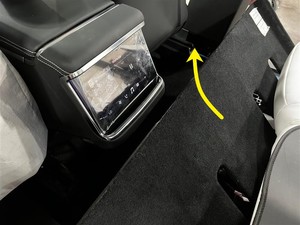

  6. With an assistant, release the clips (x5) that attach the 2nd row mid floor panel to the vehicle, then tilt the front edge upwards, and then remove the floor panel vertically.

Install

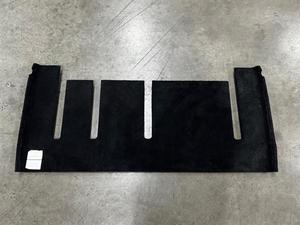

  1. Install the 2nd row mid floor panel.
    Informational PurposesAn informational icon, calling your attention
    Note
    Install the rear of the floor panel into position, and then secure the floor panel with clips (x5).
    Informational PurposesAn informational icon, calling your attention
    Note
    Replace clips if they are damaged.
  2. Install the LH and RH rear sill panel trims. See Trim - Sill Panel - Rear - LH (Remove and Replace).
  3. Restore the driver and front passenger seat back to their original position..
