Door Assembly - Front - LH (Remove and Replace)

Correction code 10106002 1.32 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
This procedure is a DRAFT. Although it has been validated, Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near High Voltage systems and components.
Special tools recommended:
  • 1054720-00-A Portable bench, 500 Lbs.
  • 1671833-00-B - Window switch tool

Remove

  1. Open the LH front door and lower the LH and RH front windows.
  2. Remove the LH front door trim decor. See Decor - Trim - Front Door - LH (Remove and Replace).
  3. Remove the LH front door trim reflector. See Reflector - Door Trim - Front - LH (Remove and Replace).
  4. Remove the LH front door trim panel. See Panel - Door Trim - Front - LH (Remove and Replace).
  5. Remove the LH front door closeout panel. See Closeout Panel - Door - Front - LH (Remove and Replace).
  6. Remove the LH front door glass. See Door Glass - Front - LH (Remove and Replace).
  7. Remove the rear underhood apron. See Underhood Apron - Rear (Remove and Replace).
  8. Disconnect LV power. See LV Power (Disconnect and Connect).
  9. Remove the LH front door pressure sensor. See GUID-9BD483F8-8848-47E0-9255-7F73DBFEAA25.html.

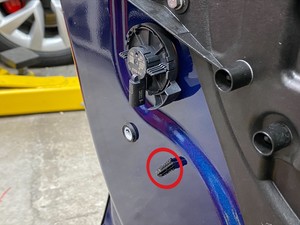

  10. Release the fir tree clip that attaches the cables to the door.

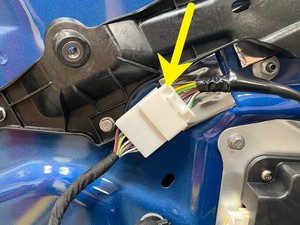

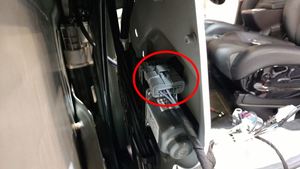

  11. Disconnect the LH front door latch electrical connector.
  12. Disconnect the LH window motor electrical connector.
  13. Disconnect the LH door mirror electrical connector.

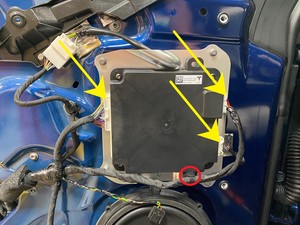

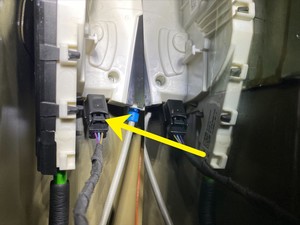

  14. Disconnect LH front door module electrical connectors (x3).
  15. Remove the LH front door speaker. See Speaker - Front Door - LH (Remove and Replace).

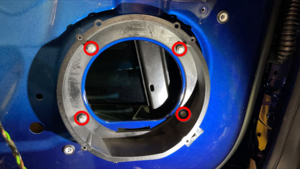

  16. Remove the bolts (x4) that attach the LH front door speaker adapter ring.
    1.8 Nm (1.3 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm socket

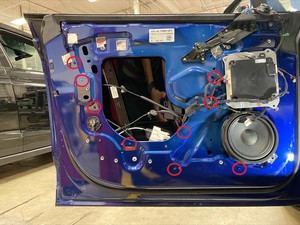

  17. Release the clips (x9) that attach the LH front door electrical harness to the door.
  18. Remove the LH front window motor/regulator assembly. See Window Motor/Regulator Assembly - Front - LH (Remove and Replace).

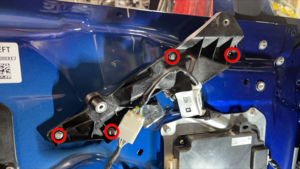

  19. Remove the bolts (x4) that attach the grab handle bracket to the door.
    1.8 Nm (1.3 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm socket
  20. Remove the LH front door pop actuator. See Pop Actuator - Front Door - LH (Remove and Replace).
  21. Remove the LH front door outer belt seal. See Seal - Outer Belt - Front Door - LH (Remove and Replace).
  22. Remove the LH front door inner belt seal. See Seal - Inner Belt - Front Door - LH (Remove and Replace).
  23. Remove the LH door mirror assembly. See Door Mirror Assembly - LH (Remove and Replace).
  24. Remove the LH front door fixed glass. See Fixed Glass - Front - LH (Remove and Replace).
  25. Remove the LH front door exterior release handle. See Handle - Exterior Release - Door - Front - LH (Remove & Replace).
  26. Remove the LH front door latch. See Latch - Door - Front - LH (Remove and Replace).
  27. Remove the LH front door drive unit. See Front Door Drive Unit - LH (Remove and Replace).
  28. Remove the LH instrument panel end cap. See End Cap - Instrument Panel - LH (Remove and Replace).
  29. Remove the LH middle A-pillar trim. See Trim - A-Pillar - Middle - LH (Remove and Replace).
  30. Remove the LH front sill panel trim. See Trim - Sill Panel - Front - LH (Remove and Replace).
  31. Remove the LH lower A-pillar trim. See Trim - A-Pillar - Lower - LH (Remove and Replace).
  32. Remove the LH front door harness. See Harness - Front Door - LH (Remove and Replace).

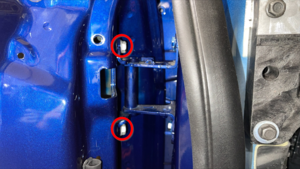

  33. Remove the bolts (x2) that attach the LH upper front door hinge to the LH front door.
    24 Nm (17.7 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 12 mm socket
    • 12 mm combination wrench flex head

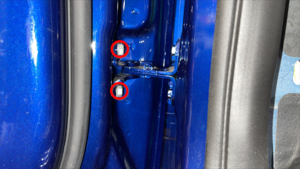

  34. Remove the bolts (x2) that attach the LH lower front door hinge to the LH front door.
    24 Nm (17.7 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 12 mm combination wrench flex head

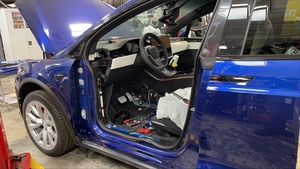

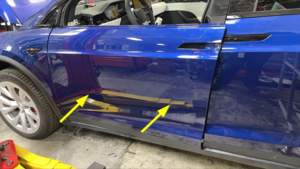

  35. With an assistant, remove the LH front door.
    Informational PurposesAn informational icon, calling your attention
    Note
    Special tool recommended: 1054720-00-A Portable bench, 500 Lbs.

Install

Warning IconA warning icon, calling your attention to a possibly risky situation
CAUTION
If using this procedure to install an unpainted part, make sure to apply seam sealer to all seams prior to installing and painting the part. Refer to the Collision Repair manual for more information.

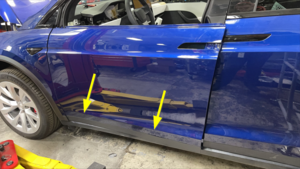

  1. With an assistant, install the LH front door.
  2. Install the bolts (x2) that attach the LH lower front door hinge to the LH front door.
    24 Nm (17.7 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 12 mm combination wrench flex head
  3. Install the bolts (x2) that attach the LH upper front door hinge to the LH front door.
    24 Nm (17.7 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 12 mm socket
    • 12 mm combination wrench flex head
  4. Install the LH front door harness. See Harness - Front Door - LH (Remove and Replace).
  5. Install the LH lower A-pillar trim. See Trim - A-Pillar - Lower - LH (Remove and Replace).
  6. Install the LH front sill panel trim. See Trim - Sill Panel - Front - LH (Remove and Replace).
  7. Install the LH middle A-pillar trim. See Trim - A-Pillar - Middle - LH (Remove and Replace).
  8. Install the LH instrument panel end cap. See End Cap - Instrument Panel - LH (Remove and Replace).
  9. Install the LH front door drive unit. See Front Door Drive Unit - LH (Remove and Replace).
  10. Install the LH front door latch. See Latch - Door - Front - LH (Remove and Replace).
  11. Install the LH front door exterior release handle. See Handle - Exterior Release - Door - Front - LH (Remove & Replace).
  12. Install the LH front window motor/regulator assembly. See Window Motor/Regulator Assembly - Front - LH (Remove and Replace).
  13. Install the LH front door fixed glass. See Fixed Glass - Front - LH (Remove and Replace).
  14. Install the LH door mirror assembly. See Door Mirror Assembly - LH (Remove and Replace).
  15. Install the LH front door inner belt seal. See Seal - Inner Belt - Front Door - LH (Remove and Replace).
  16. Install the LH front door outer belt seal. See Seal - Outer Belt - Front Door - LH (Remove and Replace).
  17. Install the LH front door pop actuator. See Pop Actuator - Front Door - LH (Remove and Replace).
  18. Install the bolts (x4) that attach the grab handle bracket to the door.
    1.8 Nm (1.3 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm socket
  19. Install the LH front door speaker. See Speaker - Front Door - LH (Remove and Replace).
  20. Connect the LH front door module electrical connectors (x3), and then fasten the clip.
  21. Install the LH front door pressure sensor. See GUID-9BD483F8-8848-47E0-9255-7F73DBFEAA25.html.
  22. Connect LV power. See LV Power (Disconnect and Connect).
  23. Install the rear underhood apron. See Underhood Apron - Rear (Remove and Replace).
  24. Install the LH front door glass. See Door Glass - Front - LH (Remove and Replace).
  25. Install the LH front door closeout panel. See Closeout Panel - Door - Front - LH (Remove and Replace).
  26. Install the LH front door trim panel. See Panel - Door Trim - Front - LH (Remove and Replace).
  27. Install the LH front door trim reflector. See Reflector - Door Trim - Front - LH (Remove and Replace).
  28. Install the LH front door trim decor. See Decor - Trim - Front Door - LH (Remove and Replace).
  29. Close the LH front door.

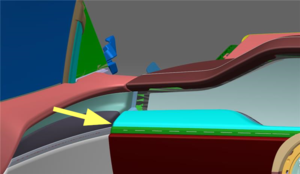

  30. Check the gap/flush fitment of LH front door decor to the IP décor.
    Informational PurposesAn informational icon, calling your attention
    Note
    Refer to CVIS for current spec.
  31. Open the LH front door.
  32. Remove the LH front door trim decor. See Decor - Trim - Front Door - LH (Remove and Replace).
  33. Adjust the LH front door trim.
    6 Nm (4.4 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T30 socket
    • 18 mm socket
    Informational PurposesAn informational icon, calling your attention
    Note

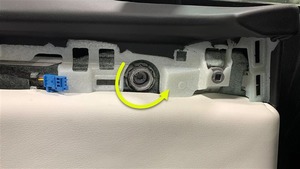

    Loosen the T30 and rotate the nut to achieve desired spec. Rotate clockwise to close gap and rotate counterclockwise to tighten gap.
    Informational PurposesAn informational icon, calling your attention
    Note
    Tighten the T30 fastener to lock.
  34. Install the LH front door trim decor. See Decor - Trim - Front Door - LH (Remove and Replace).

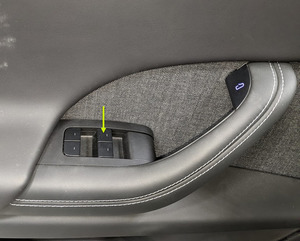

  35. Press the LH front window switch down to the second position to activate the auto-lower function, and then raise the window completely to activate the auto-raise function.
    Informational PurposesAn informational icon, calling your attention
    Note
    If the window does not lower completely, repeat previous calibration steps.
  36. Raise the LH and RH front windows.
  37. Close the LH front door.
