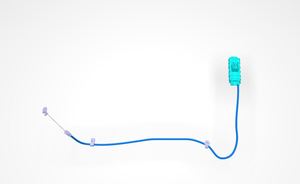

Cable - Recliner - 2nd Row - RH (7 Seat) (Remove and Replace)

Correction code 13052602 1.50 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Remove the RH 2nd row seat assembly from the vehicle. See Seat Assembly - 2nd Row - RH (7 Seat) (Remove and Replace).
  2. Fold the RH 2nd row seat back to the upright position.
  3. Remove the RH 2nd row recliner lever. See Lever - Recliner - 2nd Row - LH (Remove and Replace).
  4. Remove the RH 2nd row recliner cover. See Cover - Recliner - 2nd Row - LH (Remove and Replace).
  5. Remove and discard the bolt that attaches the RH 2nd row seatbelt to the seat assembly, and then remove the seatbelt from the assembly.
    45 Nm (33.2 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • T50 socket
  6. Disconnect the RH 2nd row seatbelt buckle harness connector, and then release the clips (x2) that attach the connector and harness to the seat assembly.
  7. Remove the bolt that attaches the RH 2nd row seatbelt buckle to the seat assembly, and then remove the buckle from the assembly.
    45 Nm (33.2 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • T50 socket
  8. Release the J-clips (x6) that attach the RH 2nd row seat cushion trim to the seat bracket assembly, and then release the trim from the bracket.
  9. Disconnect the RH 2nd row heater and seat belt reminder electrical connectors, and then release the clip that attaches the harness to the seat assembly.
  10. Remove the RH 2nd row seat cushion sub-assembly from the seat assembly.
    Informational PurposesAn informational icon, calling your attention
    Note
    Guide the harness and tension flaps underneath the seat back.

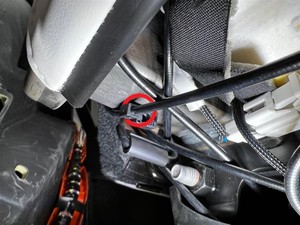

  11. Release the recline release actuator cable from the RH side cable mount.
  12. Rotate the RH side hinge lever 90 degrees to align the tab, and then pull the recline release actuator cable away from the hinge lever to release it.

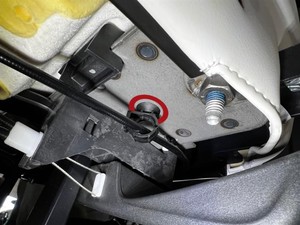

  13. Remove the screw that attaches the splitter box to the RH 2nd row seat assembly.
    1.5 Nm (1.1 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • T20 socket
  14. Cut the cable ties, and then release the tabs (x2) to open the splitter box to access the recline release actuator cables.
  15. Release the recline release actuator cables (x2) from the splitter box.
  16. Release the clips (x2) that attach the RH 2nd row recliner cable to the seat assembly, and then remove cable assembly from the seat assembly.

Install

  1. Position the RH 2nd row recliner cable to the seat assembly, and then secure the clips (x2) that attach cable assembly to the seat assembly.
  2. Connect the recline release actuator cable to the splitter box.
    Informational PurposesAn informational icon, calling your attention
    Note
    The recline release actuator cable is the silver cable.
  3. Secure the tabs (x2) to close the splitter box, and then install cable ties (x2) to secure the splitter box.
    Informational PurposesAn informational icon, calling your attention
    Note
    Cut off excess cable tie ends.
  4. Install the screw that attaches the splitter box to the RH 2nd row seat assembly.
    1.5 Nm (1.1 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • T20 socket

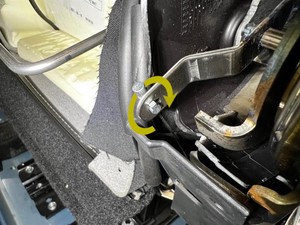

  5. Hold the RH side hinge lever down to allow the cable to reach the hole, insert the cable end, and then rotate 90 degrees to secure.

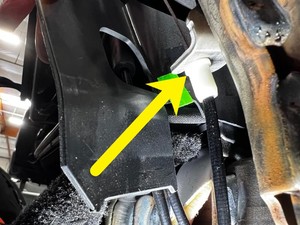

  6. Secure the RH side cable clip to the seat frame
  7. Position the RH 2nd row seat cushion into the seat assembly.
    Informational PurposesAn informational icon, calling your attention
    Note
    Guide the harness and tension flaps underneath the seat back.
  8. Secure the clip that attaches the seat harness to the RH 2nd row seat assembly, and then connect the heater and seat belt reminder electrical connectors.
  9. Secure the J-clips (x6) that attach the RH 2nd row seat cushion trim to the seat bracket assembly.
  10. Slide the upper tabs of the RH 2nd row seat inner hinge cover onto the seat frame, and then secure the clip and tabs (x4) that attach the cover to the seat assembly.
  11. Position the RH 2nd row seatbelt buckle to the seat assembly, and then install the bolt that attaches the buckle to the assembly.
    45 Nm (33.2 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • T50 socket
  12. Secure the clips (x2) that attach the RH 2nd row seatbelt buckle connector and harness to the seat assembly, and then connect the seatbelt buckle connector.
  13. Position the RH 2nd row seatbelt to the seat assembly, and then install a new bolt that attaches the seatbelt to the assembly.
    45 Nm (33.2 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • T50 socket
  14. Install the RH 2nd row recliner cover. See Cover - Recliner - 2nd Row - LH (Remove and Replace).
  15. Install the RH 2nd row recliner lever. See Lever - Recliner - 2nd Row - LH (Remove and Replace).
  16. Fold the RH 2nd row seat back to the down position.
  17. Install the RH 2nd row seat assembly. See Seat Assembly - 2nd Row - RH (7 Seat) (Remove and Replace).
    Informational PurposesAn informational icon, calling your attention
    Note
    It is not necessary to redeploy software after install.
