Controller - Driver Seat (Remove and Replace)

Correction code 13016202 0.54 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

  • 2023-06-21: Updated procedure not to remove seat from vehicle, added seat assignment routine and modified seat calibration routine.

Remove

  1. Open the LH front door and lower the window.
  2. Move the 1st row LH seat forward.

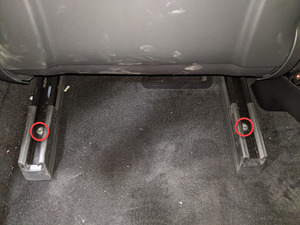

  3. Remove and discard the bolts (x2) that attach the rear of the 1st row LH seat tracks to the floor panel.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx Plus T45 socket
  4. Move the 1st row LH seat rearwards.

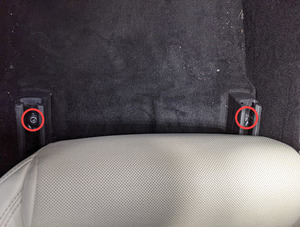

  5. Remove and discard the bolts (x2) that attach the front of the 1st row LH seat tracks to the floor panel.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx Plus T45 socket
  6. Disconnect LV power. See LV Power (Disconnect and Connect).
  7. Tilt the LH seat back, and then rest the seat against the 2nd row seat.

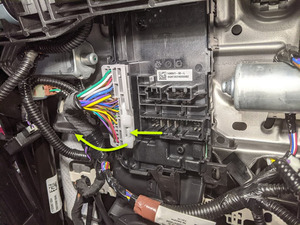

  8. Disconnect the body harness from the seat controller.
    Informational PurposesAn informational icon, calling your attention
    Note
    2x connectors, 1x clip.

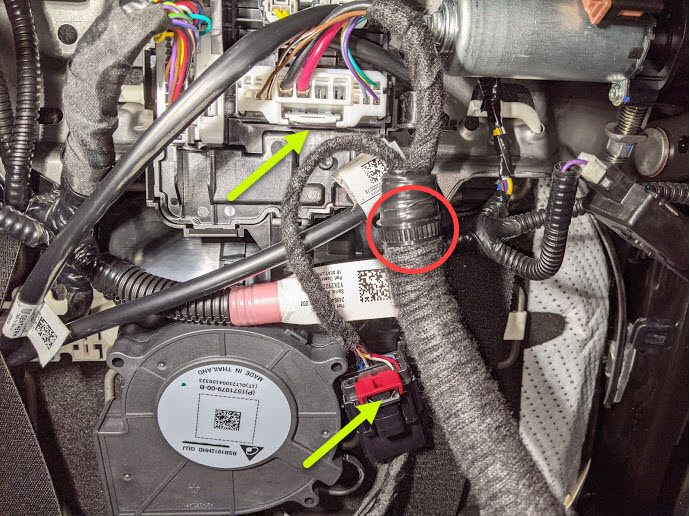

  9. Disconnect the FSC vent heat pad electrical connector from the driver seat controller.

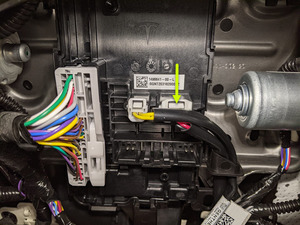

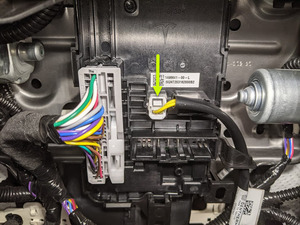

  10. Disconnect the FSB vent heat pad electrical connector from the driver seat controller.

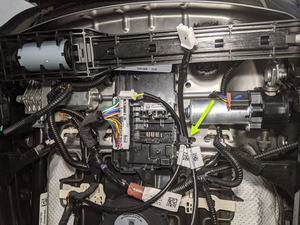

  11. Release the heat pad harnesses from the driver seat controller bracket.
  12. Release the connector lock, and then disconnect the driver seat controller electrical connector.

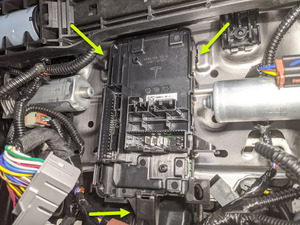

  13. Release the clips (x3) that attach the driver seat controller to the seat assembly, and then remove the controller from the assembly.

Install

  1. Position the driver seat controller onto the seat assembly, and then fasten the clips (x3) that attach the controller to the seat assembly.
  2. Connect the driver seat controller electrical connector, and then engage the locking tab.
  3. Route the vent heat pad harnesses along the driver seat controller bracket.
  4. Connect the FSB vent heat pad electrical connector to the driver seat controller.
  5. Connect the FSC vent heat pad electrical connector to the driver seat controller.
  6. Connect the body harness to the seat controller.
    Informational PurposesAn informational icon, calling your attention
    Note
    2x connectors, 1x clip.
  7. Connect LV power. See LV Power (Disconnect and Connect).
  8. Install new bolts (x2) that attach the front of the 1st row LH seat tracks to the floor panel.
    34 Nm (25.1 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx Plus T45 socket
  9. Move the 1st row LH seat forward.
  10. Install new bolts (x2) that attach the rear of the 1st row LH seat tracks to the floor panel.
    34 Nm (25.1 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx Plus T45 socket
  11. Calibrate the LH and RH falcon wing doors by holding the LH and RH button at the upper B-pillar in the down position.
    Informational PurposesAn informational icon, calling your attention
    Note
    Doors must be calibrated and closed for firmware to pass at a later step.
  12. Connect a laptop with Toolbox 3 to the vehicle.
  13. In Toolbox, select the Actions tab, and then search for "VCSEATD".
    Informational PurposesAn informational icon, calling your attention
    Note
    For passenger seat, search for "VCSEATP".
  14. Click VCSEATD_Side_Assignment_Procedure, click Run, and allow the routine to complete.
    Informational PurposesAn informational icon, calling your attention
    Note
    For passenger seat, run the VCSEATP_Side_Assignment_Procedure.
  15. Reinstall the firmware. See Firmware Reinstall - Toolbox.
  16. Calibrate the LH front seat: on the touchscreen, touch Controls > Service > Driver Seat, Steering & Mirrors Calibration, and then touch START to start the calibration.
