Bracket - 2nd Row Floor Panel - LH (7 Seat) (Remove and Replace)

Correction code 153036320.20 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
This procedure is a DRAFT. Although it has been validated, Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near High Voltage systems and components.

Remove

  1. Open all four doors.
  2. Lower the LH front window.
  3. Move the driver and front passenger seats fully forward.
  4. Remove the LH and RH rear sill panel trims. See Trim - Sill Panel - Rear - LH (Remove and Replace).

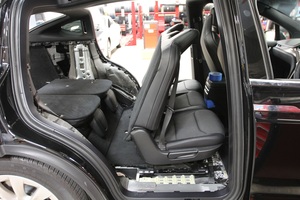

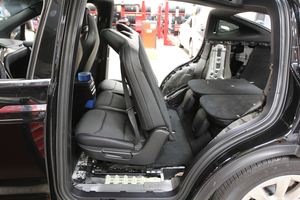

  5. Move the LH and RH 2nd row seats fully backward.
    Informational PurposesAn informational icon, calling your attention
    Note

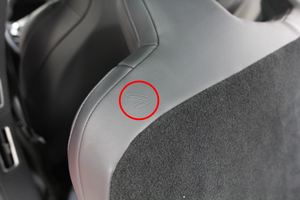

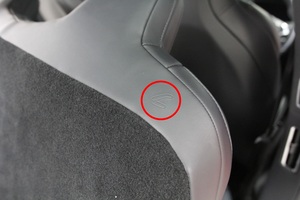

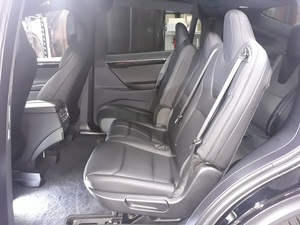

    Use the easy entry switch to unlatch each seat and move it fully backwards, and then latch the seatback to lock into position.
  6. Remove the 2nd row mid floor panel. See Floor Panel - Mid - 2nd Row (7 Seat) (Remove and Replace).
  7. Remove the LH 2nd row seat outboard front floor plate. See Front Floor Plate - Outboard - 2nd Row Seat - LH (7 Seat) (Remove and Replace).
  8. Remove the LH 2nd row seat inboard front floor plate. See Front Floor Plate - Inboard - 2nd Row Seat - LH (7 Seat) (Remove and Replace).

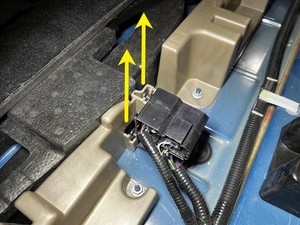

  9. Release the tabs (x2) that attach the seat inline harness bracket, and then pull the bracket upwards.

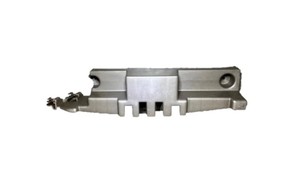

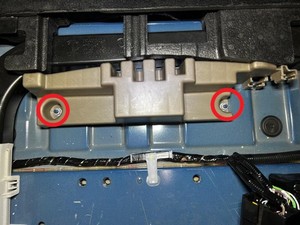

  10. Remove the bolts (x2) that attach the LH 2nd row floor panel bracket to the body, and then remove the bracket from the vehicle.
    2.5 Nm (1.8 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm socket

Install

  1. Install the bolts (x2) that attach the LH 2nd row floor panel bracket to the body.
    2.5 Nm (1.8 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm socket

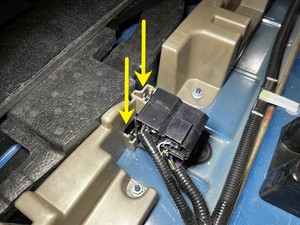

  2. Secure the tabs (x2) that attach the seat inline harness bracket.
    Informational PurposesAn informational icon, calling your attention
    Note
    Slide the tabs downward to engage.
  3. Install the LH 2nd row seat inboard front floor plate. See Front Floor Plate - Inboard - 2nd Row Seat - LH (7 Seat) (Remove and Replace).
  4. Install the LH 2nd row seat outboard front floor plate. See Front Floor Plate - Outboard - 2nd Row Seat - LH (7 Seat) (Remove and Replace).
  5. Install the 2nd row mid floor panel. See Floor Panel - Mid - 2nd Row (7 Seat) (Remove and Replace).
  6. Install the RH rear sill panel trim. See Trim - Sill Panel - Rear - LH (Remove and Replace).
  7. Restore the front passenger seat back to its original position.
  8. Install the LH rear sill panel trim. See Trim - Sill Panel - Rear - LH (Remove and Replace).
  9. Restore the driver seat back to its original position.
