Cover - Side - Tail Light - Liftgate - LH (Remove and Replace)

Correction code 17400312 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Open the LH front door and lower the LH front window.
  2. Open the liftgate.

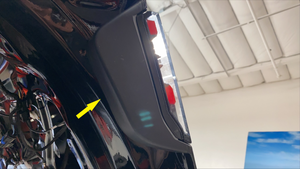

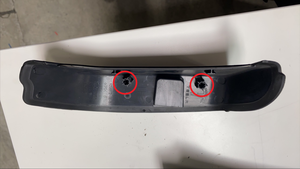

  3. Release the clips (x2) that attach the LH liftgate tail light side cover to the liftgate, and then remove the cover from the liftgate.

Install

  1. Position the LH liftgate tail light side cover to the liftgate, and then secure the clips (x2) that attach the cover to the liftgate.
  2. Close the liftgate.
  3. Raise the LH front window and close the LH front door.
