Light - Armrest Bin - Center Console (Remove and Replace)

Correction code 15190052 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

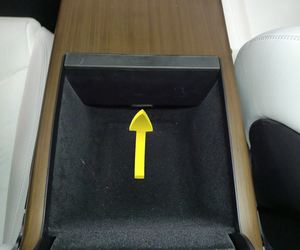

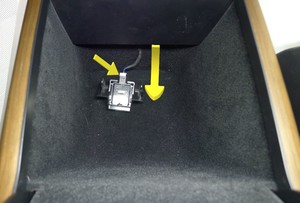

  1. Release the clips (x2) that attach the center console armrest bin light to the center console, disconnect the electrical connector, and then remove the light from the center console.
    Informational PurposesAn informational icon, calling your attention
    Note
    Release the light downward.

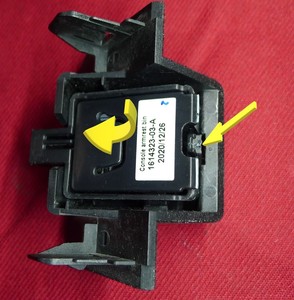

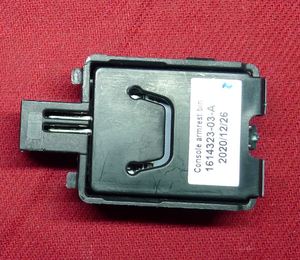

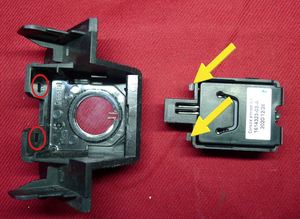

  2. Release the tab that attaches the center console armrest bin light to the housing, and then remove the light from the housing.

Install

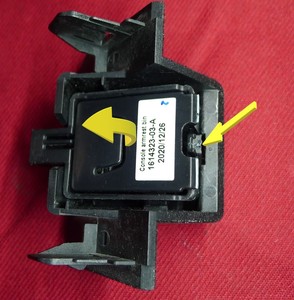

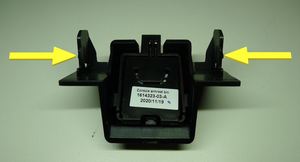

  1. Position the center console armrest bin light into the housing, and then secure the tab that attaches the light to the housing.
    Informational PurposesAn informational icon, calling your attention
    Note
    Make sure the locking tab is engaged.
  2. Position the center console armrest bin light into the center console, connect the electrical connector, and then secure the clips (x2) that attach the light to the center console.
