Floor Mat - 2nd Row (Remove and Replace)
Correction code
15301602
0.06
NOTE: Unless otherwise explicitly
stated in the procedure, the above correction code and FRT reflect all of the work
required to perform this procedure, including the linked procedures. Do not stack correction codes unless
explicitly told to do so.
NOTE: See Flat Rate Times to learn
more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com.
NOTE: See Personal Protection to make sure proper PPE is worn when
performing the below
procedure.
Remove
- Open the LH rear door and move the 2nd row LH seat forward.
- Remove the LH rear sill panel trim. See Trim - Sill Panel - Rear - LH (Remove and Replace).
- Repeat step 1 and step 2 for the RH side of the vehicle.
-

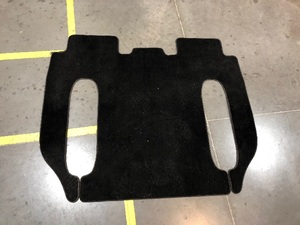

Remove the 2nd row floor mat.
Install
-
Install the 2nd row floor mat.
- Install the LH rear sill panel trim. See Trim - Sill Panel - Rear - LH (Remove and Replace).
- Move the 2nd row LH seat rearward, and then close the LH rear door.
- Repeat step 2 and step 3 for the RH side of the vehicle.
