Pop Actuator - Front Door - LH (Remove and Replace)

Correction code 11332202 0.24 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Open the LH front door and lower the front windows.
  2. Remove the LH front door trim decor. See Decor - Trim - Front Door - LH (Remove and Replace).
  3. Remove the LH front door trim panel. See Panel - Door Trim - Front - LH (Remove and Replace).
  4. Remove the bolts (x8) that attach the LH front door closeout panel to the door assembly.
    1.8 Nm (1.3 lbs-ft)
    Use of the following tool(s) is recommended:
    • 8 mm socket

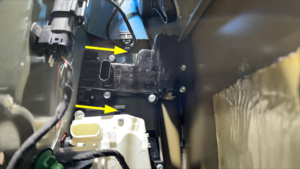

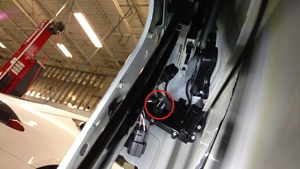

  5. Disconnect the LH front door pop actuator electrical connector.

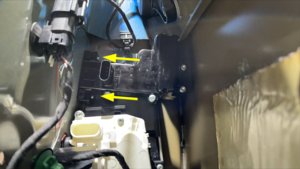

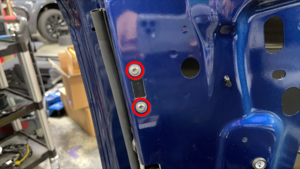

  6. Remove and discard the bolts (x2) that attach the LH front door pop actuator to the LH front door assembly, and then remove the actuator from the assembly.
    10 Nm (7.4 lbs-ft)
    Use of the following tool(s) is recommended:
    • T30 socket

Install

  1. Position the LH front door pop actuator into the LH front door assembly, and then install new bolts (x2) that attach the actuator to the assembly.
    10 Nm (7.4 lbs-ft)
    Use of the following tool(s) is recommended:
    • T30 socket
  2. Connect the LH front door pop actuator electrical connector.
  3. Install the bolts (x8) that attach the LH front door closeout panel to the LH front door assembly.
    1.8 Nm (1.3 lbs-ft)
    Use of the following tool(s) is recommended:
    • 8 mm socket
  4. Install the LH front door trim panel. See Panel - Door Trim - Front - LH (Remove and Replace).
  5. Install the LH front door trim decor. See Decor - Trim - Front Door - LH (Remove and Replace).
  6. Raise the front windows and close the LH front door.
