Gap Hider - Door Trim - LH - Rear - Mid (Remove and Replace)

Correction code 15133702 0.12 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Open the LH front door and lower the LH front window.
  2. Open the LH falcon wing door.
  3. Remove the LH rear door trim lower garnish. See Garnish - Lower - Door Trim - Rear - LH (Remove and Replace).
  4. Remove the LH rear door trim upper panel. See Panel - Door Trim - Rear - Upper - LH (Remove & Replace).

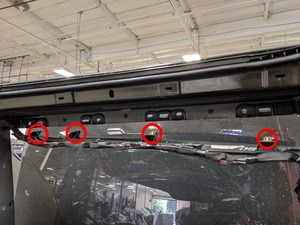

  5. Release the clips (x4) that attach the mid rear LH door trim gap hider to the LH rear door.

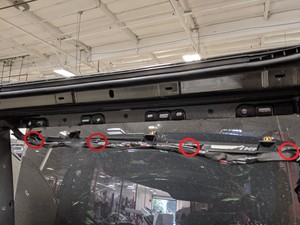

  6. Release the clips (x4) that attach the mid rear LH door trim gap hider to the wiring harness, and then remove the gap hider from the vehicle.

Install

  1. Position the mid rear LH door trim gap hider to the wiring harness, and then secure the clips (x4) that attach the gap hider to the harness.
  2. Position the mid rear LH door trim gap hider onto the LH rear door, and then secure the clips (x4) that attach the gap hider to the door.
  3. Install the LH rear door trim upper panel. See Panel - Door Trim - Rear - Upper - LH (Remove & Replace).
  4. Install the LH rear door trim lower garnish. See Garnish - Lower - Door Trim - Rear - LH (Remove and Replace).
  5. Close the LH falcon wing door.
  6. Raise the LH front window and close the LH front door.
