Cover - Filter - HEPA (Remove and Replace)

Correction code 18105512 0.42 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email LaborTimeFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Remove the wiper module. See Wiper Module (Remove and Replace).
  2. Remove the LV battery. See Battery - LV (Remove and Replace).

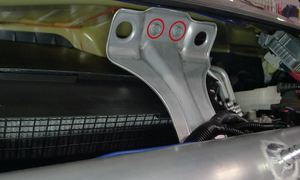

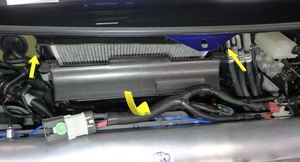

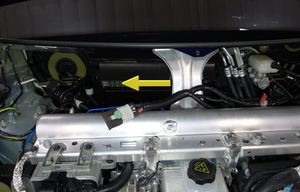

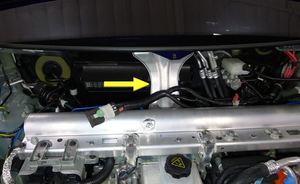

  3. Remove the bolts (x4) that attach the wiper mount bracket to the vehicle, and then maneuver the bracket to towards the RH shock tower along the multi-system beam to clear the HEPA filter housing to remove it from the vehicle.
    25 Nm (18.4 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 13 mm socket

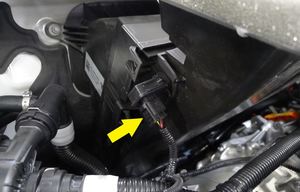

  4. Disconnect the air quality sensor harness connector.

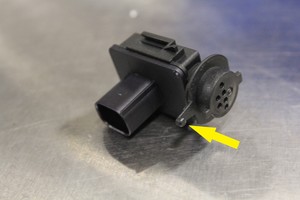

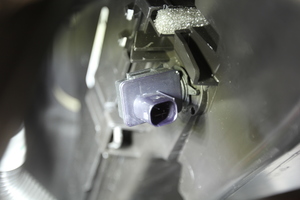

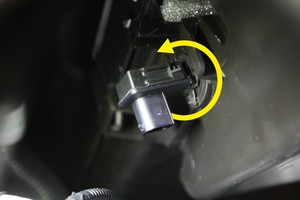

  5. Rotate the harness sensor counterclockwise to release the tab, and then remove the sensor from the vehicle.

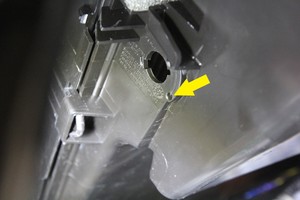

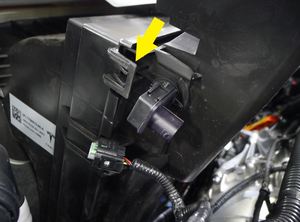

  6. Release the tabs (x2) that attach the HEPA filter cover to the vehicle, and then remove the cover from the vehicle.

Install

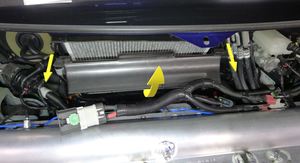

  1. Position the HEPA filter cover into the vehicle, and then secure the tabs that attach the cover to the vehicle.
    Informational PurposesAn informational icon, calling your attention
    Note

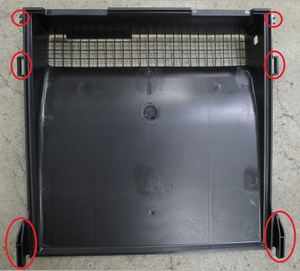

    Make sure the datums (x2) and slots (x2) are aligned.
    Informational PurposesAn informational icon, calling your attention
    Note

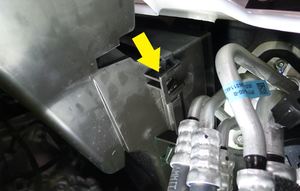

    Fully engage the seal and locking tabs.

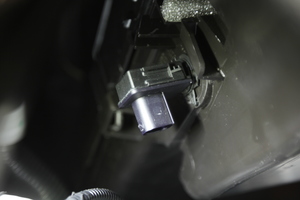

  2. Position the harness sensor into the vehicle, and then rotate the sensor clockwise to secure the tab.
  3. Connect the air quality sensor harness connector.

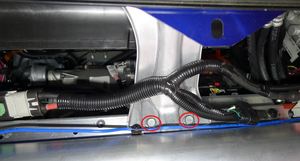

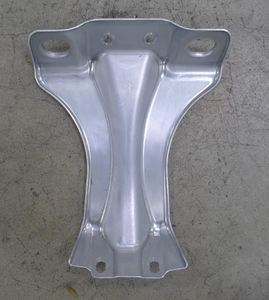

  4. Position the wiper mount bracket into the vehicle, install the bolts (x4) that attach the bracket to the vehicle.
    25 Nm (18.4 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    Note

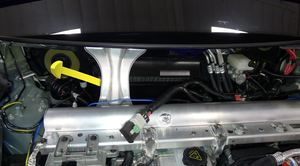

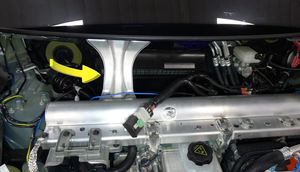

    Slide bracket the bracket from the RH shock tower area along the multi-system beam to clear the HEPA filter housing.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 13 mm socket
  5. Install the LV battery, but do not connect LV power yet. See Battery - LV (Remove and Replace).
  6. Install the wiper module. See Wiper Module (Remove and Replace).
