Trim - A-Pillar - Lower - LH (Remove and Replace)

Correction code 15182402 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email LaborTimeFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Open the LH front door and lower the LH front window.
  2. Remove the LH instrument panel end cap. See End Cap - Instrument Panel - LH (Remove and Replace)
  3. Remove the LH middle A-pillar trim. See Trim - A-Pillar - Middle - LH (Remove and Replace).
  4. Remove the LH front sill panel trim. See Trim - Sill Panel - Front - LH (Remove and Replace).

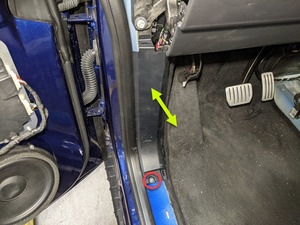

  5. Remove the bolt and release the clips (x2) that attach the LH lower A-pillar trim to the vehicle, and then remove the trim from the vehicle.
    5 Nm (3.7 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • T25 socket

Install

  1. Position the LH lower A-pillar trim into the vehicle, and then install the bolt and secure the clips (x2) that attach the trim to the vehicle.
    5 Nm (3.7 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • T25 socket
  2. Install the LH front sill panel trim. See Trim - Sill Panel - Front - LH (Remove and Replace).
  3. Install the LH middle A-pillar trim. See Trim - A-Pillar - Middle - LH (Remove and Replace).
  4. Install the LH instrument panel end cap. See End Cap - Instrument Panel - LH (Remove and Replace)
  5. Raise the LH front window and close the LH front door.
