Catch Basin - Active Spoiler - LH (Remove and Replace)

Correction code 11700152 0.54 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email LaborTimeFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Open the LH front door.
  2. Lower the LH front window.
  3. Open the liftgate.
  4. Remove the lower liftgate trim. See Trim - Liftgate - Lower (Remove and Replace).
  5. Remove the liftgate speaker grille. See Grille - Speaker - Liftgate (Remove and Replace).
  6. Remove the liftgate upper trim. See Trim - Upper - Liftgate (Remove and Replace).
  7. Remove the LH and RH liftgate speaker. See Speaker - Liftgate - LH (Remove and Replace).
  8. Remove the LH and RH liftgate tweeter. See Tweeter - Liftgate - LH (Remove and Replace).
  9. Remove the center liftgate trim bracket. See Bracket - Trim - Liftgate - Center (Remove and Replace).
  10. Remove the LH active spoiler catch basin cover. See Cover - Catch Basin - Active Spoiler - LH (Remove and Replace).
  11. Remove the liftgate cinching actuator. See Actuator - Cinching - Liftgate (Remove and Replace).
  12. Remove the LH liftgate drain. See Liftgate Drain - LH (Remove and Replace).

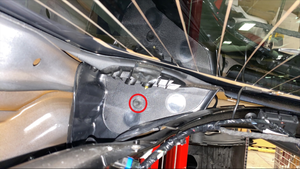

  13. Release and discard the fir tree clip that attaches the LH active spoiler catch basin to the liftgate, and then remove the catch basin from the vehicle.
    Informational PurposesAn informational icon, calling your attention
    Note

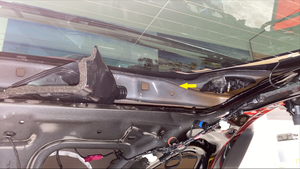

    Turn the catch basin clockwise, and then slide the catch basin to the center of the liftgate to remove.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Clip prytool 20in

Install

  1. Position the LH active spoiler catch basin into the center of the liftgate gap, turn the catch basin counter clockwise, and then install a new fir tree clip that attaches the catch basin to the liftgate.
  2. Install the LH liftgate drain. See Liftgate Drain - LH (Remove and Replace).
  3. Install the liftgate cinching actuator. See Actuator - Cinching - Liftgate (Remove and Replace).
  4. Install the LH active spoiler catch basin cover. See Cover - Catch Basin - Active Spoiler - LH (Remove and Replace).
  5. Install the center liftgate trim bracket. See Bracket - Trim - Liftgate - Center (Remove and Replace).
  6. Install the LH and RH liftgate tweeter. See Tweeter - Liftgate - LH (Remove and Replace).
  7. Install the LH and RH liftgate speaker. See Speaker - Liftgate - LH (Remove and Replace).
  8. Install the liftgate upper trim. See Trim - Upper - Liftgate (Remove and Replace).
  9. Install the liftgate speaker grille. See Grille - Speaker - Liftgate (Remove and Replace).
  10. Install the lower liftgate trim. See Trim - Liftgate - Lower (Remove and Replace).
  11. Close the liftgate.
  12. Raise the LH front window.
  13. Close the LH front door.
